AD5263BRUZ200-R7

四， 15 V ， 256位，数字电位器，具有引脚可选的SPI / I2C Quad, 15 V, 256-Position, Digital Potentiometer with Pin-Selectable SPI/I2C

Product Details

The AD5263 is the industry’s first quad-channel, 256-position, digital potentiometer1 with a selectable digital interface. This device performs the same electronic adjustment function as mechanical potentiometers or variable resistors, with enhanced resolution, solid-state reliability, and superior low temperature coefficient performance.

Each channel of the AD5263 offers a completely programmable value of resistance between the A terminal and the wiper or between the B terminal and the wiper. The fixed A-to-B terminal resistance of 20 kΩ, 50 kΩ, or 200 kΩ has a nominal temperature coefficient of ±30 ppm/°C and a ±1% channel-to-channel matching tolerance. Another key feature of this part is the ability to operate from +4.5 V to +15 V, or at ±5 V.

Wiper position programming presets to midscale upon power-on. Once powered, the VR wiper position is programmed by either the 3-wire SPI or 2-wire I2C-compatible interface. In the I2C mode, additional programmable logic outputs enable users to drive digital loads, logic gates, and analog switches in their systems.

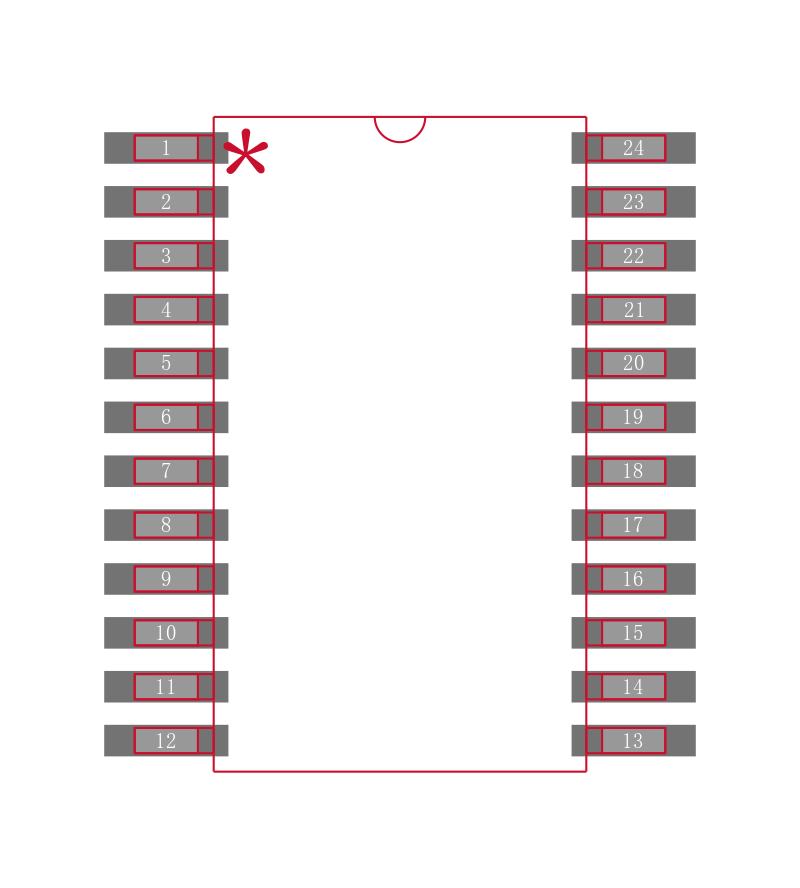

The AD5263 is available in a narrow body, 24-lead TSSOP. All parts are guaranteed to operate over the automotive temperature range of –40°C to +125°C.

For single- or dual-channel applications, refer to the AD5260/AD5280 or AD5262/AD5282 data sheets.

**Applications**

* Mechanical potentiometer replacement

* Optical network adjustment

* Instrumentation: gain, offset adjustment

* Stereo channel audio level control

* Automotive electronics adjustment

* Programmable power supply

* Programmable filters, delays, time constants

* Line impedance matching

* Low resolution DAC/trimmer replacement

* Base station power amp biasing

* Sensor calibration

1 The terms digital potentiometer, VR, and RDAC are used interchangeably.

### Features and Benefits

.

256-position, 4-channel

.

End-to-end resistance 20 kΩ, 50 kΩ, 200 kΩ

.

Pin-selectable SPI®- or I2C®-compatible interface

.

Power-on preset to midscale

.

Two package address decode pins AD0 and AD1

.

Rheostat mode temperature coefficient 30 ppm/°C

.

Voltage divider temperature coefficient 5 ppm/°C

.

Wide operating temperature range –40°C to +125°C

.

10 V to 15 V single supply; ±5 V dual supply
