AD5424YCPZ-REEL7

8位/ 10位/ 12位，高带宽，乘法DAC ，并行接口 8-/10-/12-Bit, High Bandwidth Multiplying DACs with Parallel Interface

Product Details

The AD5424/AD5433/AD5445 are CMOS 8-, 10-, and 12-bit current output digital-to-analog converters DACs, respectively. These devices operate from a 2.5 V to 5.5 V power supply, making them suitable for battery-powered applications and many other applications. These DACs utilize data readback, allowing the user to read the contents of the DAC register via the DB pins. On power-up, the internal register and latches are filled with 0s and the DAC outputs are at zero scale.

As a result of manufacturing with a CMOS submicron process, they offer excellent 4-quadrant multiplication characteristics, with large signal multiplying bandwidths of up to 10 MHz.

The applied external reference input voltage VREF determines the full-scale output current. An integrated feedback resistor RFB provides temperature tracking and full-scale voltage output when combined with an external I-to-V precision amplifier.

While these devices are upgrades of the AD5424/AD5433/ AD5445 in multiplying bandwidth performance, they have a latched interface and cannot be used in transparent mode.

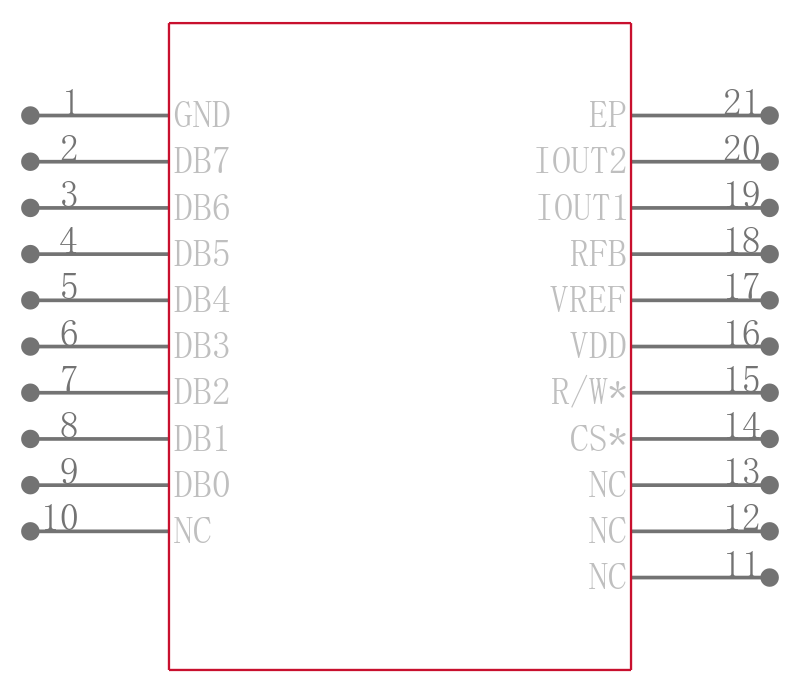

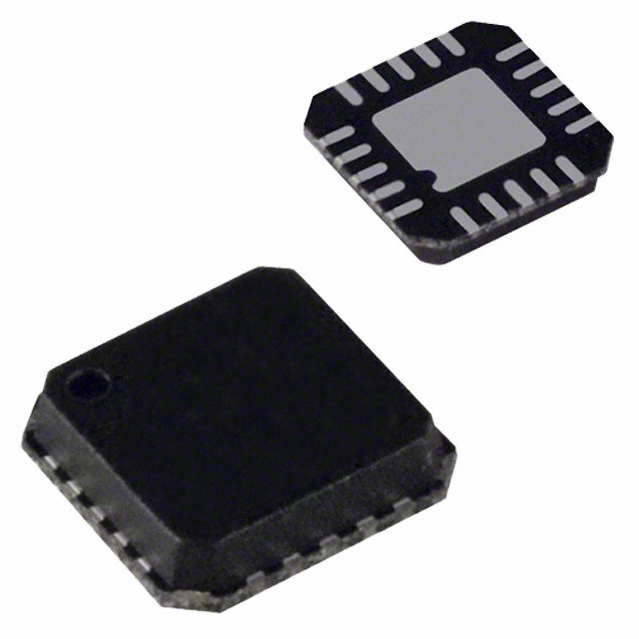

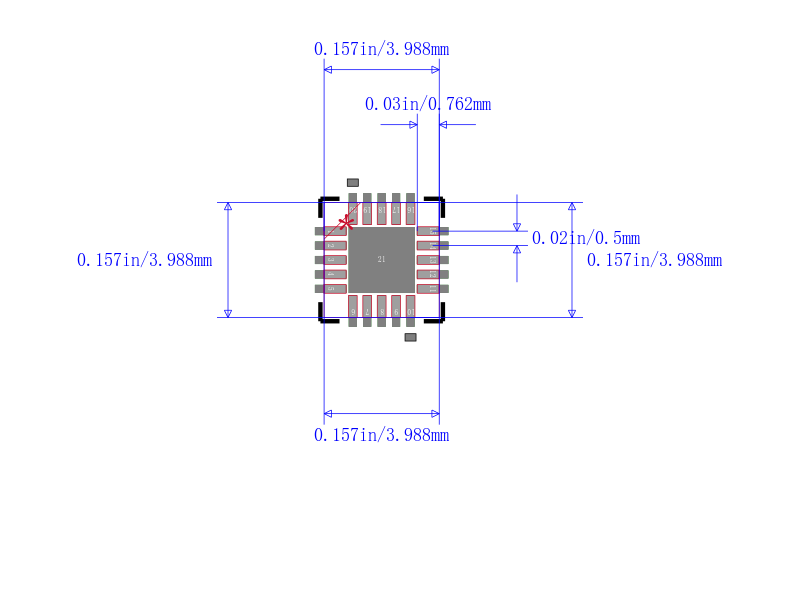

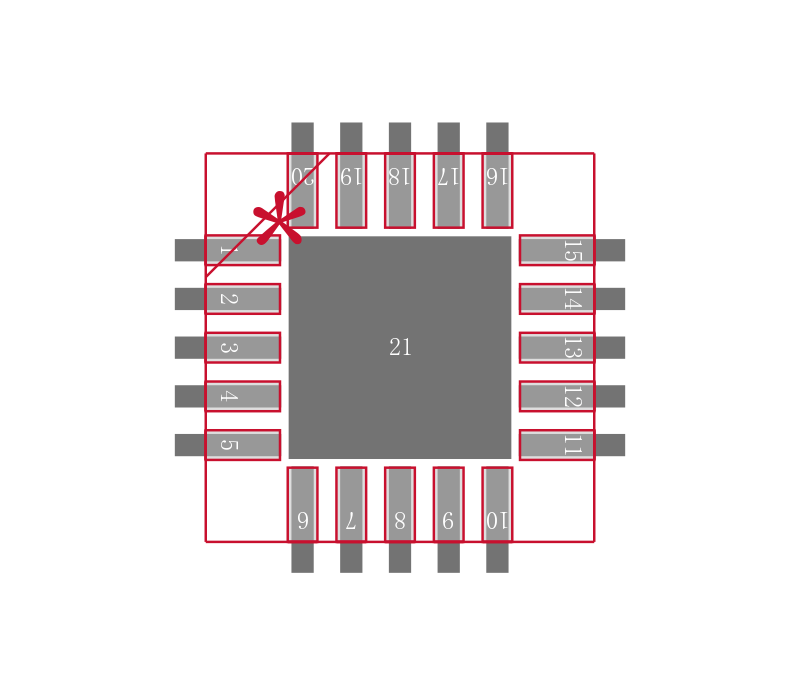

The AD5424 is available in a small, 20-lead LFCSP and a small, 16-lead TSSOP, while the AD5433 and AD5445 DACs are available in a small, 20-lead LFCSP and a small, 20-lead TSSOP. The EVAL-AD5445SDZ evaluation board is available for evaluating DAC performance. For more information, see the UG-333 evaluation board user guide.

Applications

.

Portable battery-powered applications

.

Waveform generators

.

Analog processing

.

Instrumentation applications

.

Programmable amplifiers and attenuators

.

Digitally controlled calibration

.

Programmable filters and oscillators

.

Composite video

.

Ultrasound

.

Gain, offset, and voltage trimming

### Features and Benefits

.

2.5 V to 5.5 V supply operation

.

Fast parallel interface 17 ns write cycle

.

Update rate of 20.4 MSPS

.

INL of ±1 LSB for 12-bit DAC

.

10 MHz multiplying bandwidth

.

±10 V reference input

.

Extended temperature range:

–40°C to +125°C

.

See data sheet for additional features
