ADS1225IRGVRG4

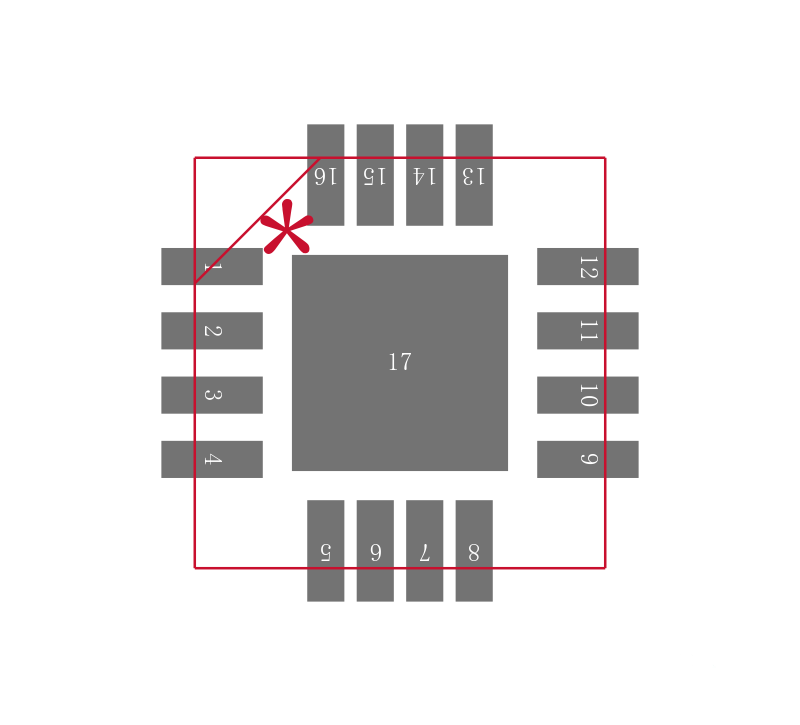

ADC Single Delta-Sigma 100sps 24Bit Serial 16Pin VQFN EP T/R

DESCRIPON

The ADS1225 and ADS1226 are 24-bit delta-sigma analog-to-digital A/D converters. They offer

excellent performance, ease-of-use, and low power in a small 4mm × 4mm QFN package and are

well-suited for demanding high-resolution measurements, especially in portable and other space-saving and power-constrained applications.

FEATURES

• 100SPS Data Rate High-Speed Mode

• Single-Cycle Settling

• Easy Conversion Control with START Pin

• Automatic Shutdown

• Low Noise: 4µVRMS Noise High-Resolution Mode

• Input Multiplexer with Two Differential Channels ADS1226

• Voltage Reference Supports Ratiometric Measurements

• Self-Calibrating

• Simple Read-Only 2-Wire Serial Interface

• Internal High-Impedance Input Buffer

• Internal Temperature Sensor

• Internal Oscillator

• Low-Power: 1mW While Operating, < 1µA During Shutdown

• Analog and Digital Supplies: 2.7V to 5.5V
