ADS7961SDBTG4

12月10日/ 8-位， 1 MSPS的16 /12/ 8/4通道，单端，微功耗，串行接口的ADC 12/10/8-Bit, 1 MSPS, 16/12/8/4-Channel, Single-Ended, MicroPower, Serial Interface ADCs

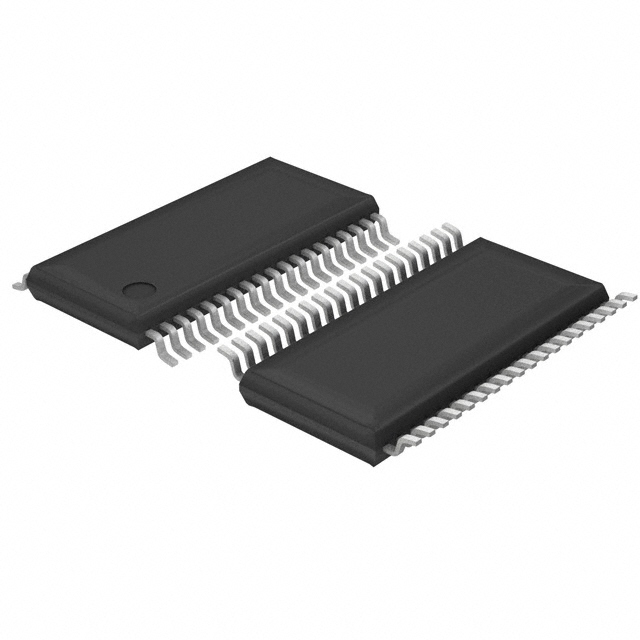

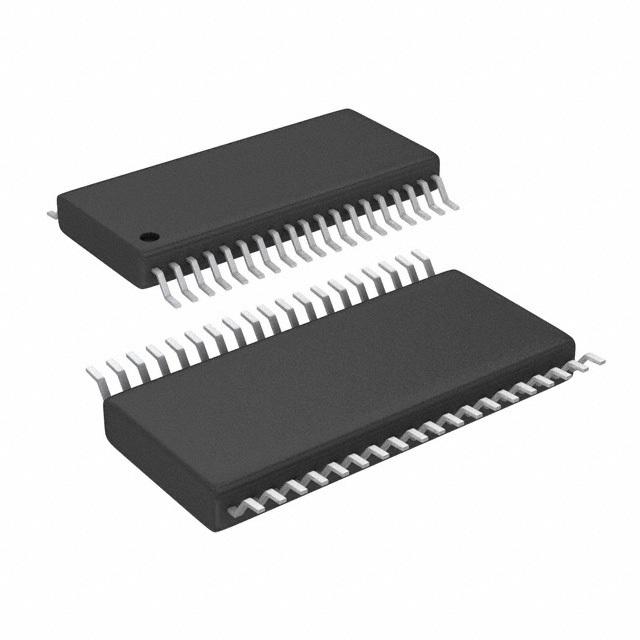

8 Bit Analog to Digital Converter 16 Input 1 SAR 38-TSSOP

得捷:
IC ADC 8-BIT 1MSPS 16CH 38TSSOP

艾睿:
16-Channel Single ADC SAR 1Msps 8-bit Serial 38-Pin TSSOP Tube

安富利:
The ADS79XX is a 12/10/8-bit multichannel analog-to-digital converter family. The following table shows all twelve devices from this product family.The devices include a capacitor based SAR A/D converter with inherent sample and hold.The devices accept a wide analog supply range from 2.7V to 5.25V. Very low power consumption makes these devices suitable for battery-powered and isolated power supply applications.A wide 1.7V to 5.25V I/O supply range facilitates a glue-less interface with the most commonly used CMOS digital hosts.The serial interface is controlled by CS\ and SCLK for easy connection with microprocessors and DSP.The input signal is sampled with the falling edge of CS\\. It uses SCLK for conversion, serial data output, and reading serial data in. The devices allow auto sequencing of preselected channels or manual selection of a channel for the next conversion cycle.There are two software selectable input ranges 0V - 2.5V and 0V - 5V, four individually configurable GPIOs in case of TSSOP package devices, and two programmable alarm thresholds per channel. These features make the devices suitable for most data acquisition applications.The devices offer an attractive power-down feature. This is extremely useful for power saving when the device is operated at lower conversion speeds.The 16/12-channel devices from this family are available in a 38-pin TSSOP and 32 pin QFN package and the 4/8-channel devices are available in a 30-pin TSSOP and 24 pin QFN packages.

Chip1Stop:
16-Channel Single ADC SAR 1Msps 8-bit Serial 38-Pin TSSOP Tube

Verical:
16-Channel Single ADC SAR 1Msps 8-bit Serial 38-Pin TSSOP Tube
