ADS1191IRSMT

低功耗，双通道， 16位模拟前端的生物电位测量 Low-Power, 2-Channel, 16-Bit Analog Front-End for Biopotential Measurements

The ADS1191/2 are a family of multichannel, simultaneous sampling, 16-bit, delta-sigma ΔΣ analog-to-digital converters ADCs with a built-in programmable gain amplifier PGA, internal reference, and an onboard oscillator.

The ADS1191/2 incorporate all of the features that are commonly required in portable, low-power medical electrocardiogram ECG, sports, and fitness applications.

With its high levels of integration and exceptional performance, the ADS1191/2 family enables the creation of scalable medical instrumentation systems at significantly reduced size, power, and overall cost.

The ADS1191/2 have a flexible input multiplexer per channel that can be independently connected to the internally-generated signals for test, temperature, and lead-off detection. Additionally, any configuration of input channels can be selected for derivation of the right leg drive RLD output signal. The ADS1191/2 operate at data rates up to 8 kSPS. Lead-off detection can be implemented internal to the device, using the device internal excitation current sink/source.

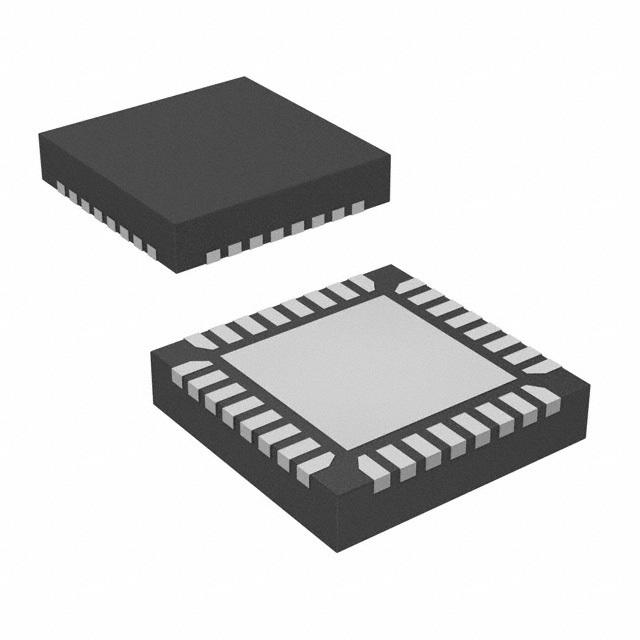

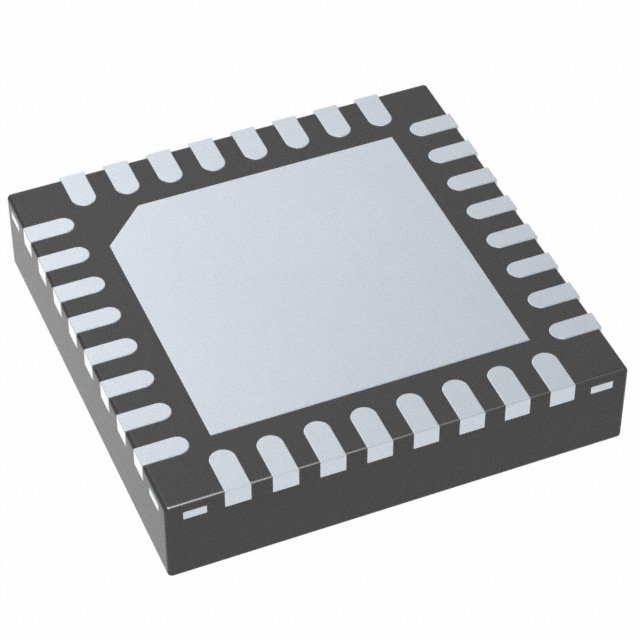

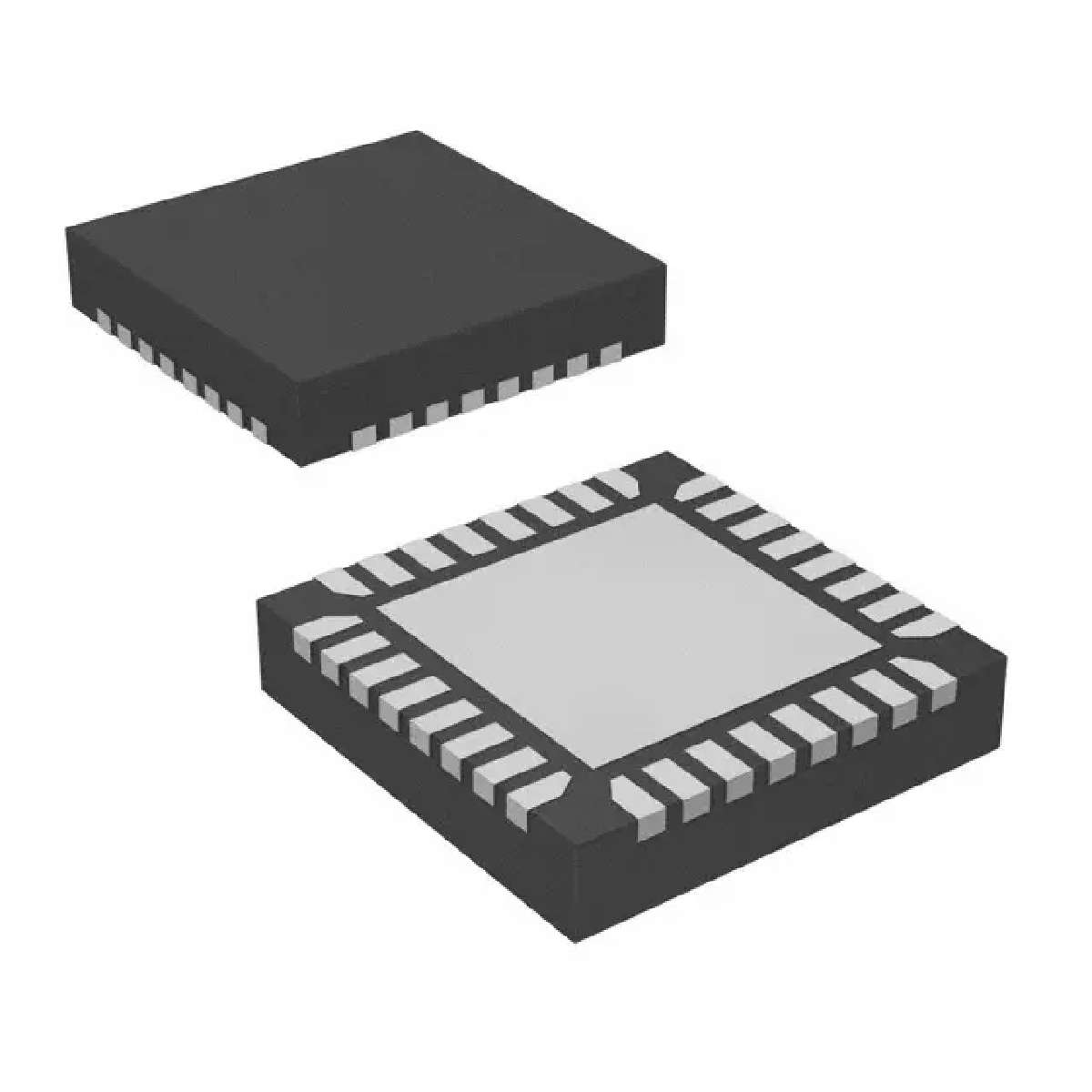

The devices are packaged in a 5-mm × 5-mm, 32-pin thin quad flat pack TQFP. Operating temperature is specified from –40°C to +85°C.
