AD7997BRU-0

8通道， 10位和12位ADC， I2CCompatible 8-Channel, 10- and 12-Bit ADCs with I2CCompatible

GENERAL DESCRIPTION

The AD7997/AD7998 are 8-channel, 10- and 12-bit, low power, successive approximation ADCs with an I2C-compatible interface. The parts operate from a single 2.7 V to 5.5 V power supply and feature a 2 µs conversion time. The parts contain an 8-channel multiplexer and track-and-hold amplifier that can handle input frequencies up to 11 MHz.

FEATURES

  10- and 12-bit ADC with fast conversion time: 2 µs typ

  8 single-ended analog input channels

  Specified for VDD of 2.7 V to 5.5 V

  Low power consumption

  Fast throughput rate: up to 188 kSPS

  Sequencer operation

  Automatic cycle mode

  I2C®-compatible serial interface supports standard, fast, and high speed modes

  Out-of-range indicator/alert function

Pin-selectable addressing via AS

Shutdown mode: 1 µA max

Temperature range: −40°C to +85°C

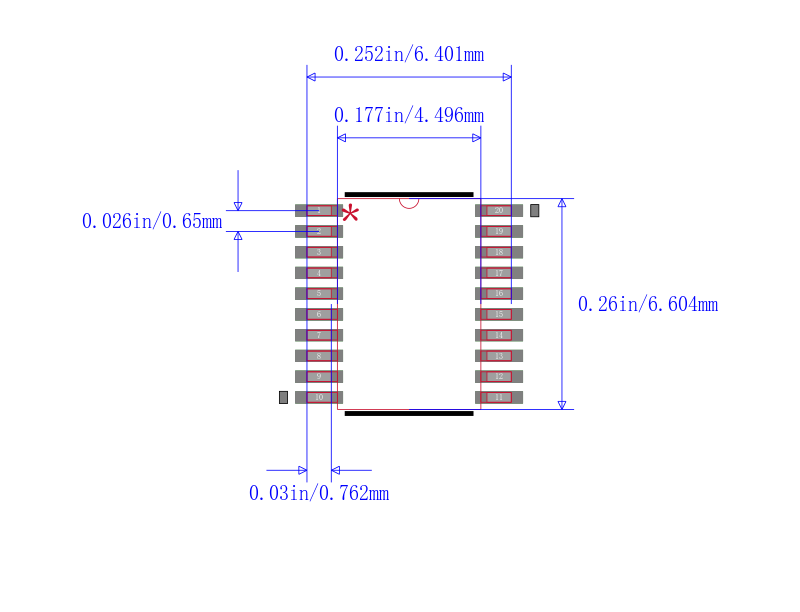

20-lead TSSOP package

See the AD7992 and AD7994 for 2-channel and 4-channel equivalent devices, respectively
