双8位/ 10位/ 12位，高带宽，乘法DAC，串行接口 Dual 8-/10-/12-Bit, High Bandwidth, Multiplying DACs with Serial Interface
Converting digital signals to analog can easily be handled using this from Analog Devices. This device"s digital interface is serial 3-wire, spi, qspi, microwire. This device is based on R-2R architecture. It has a current output. This DAC has a resolution of 12bit. This DAC has a temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device uses a single power supply.
输出接口数 2
通道数 2
位数 12
耗散功率 0.0000035 W
采样率 2.47 Msps
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 0.0035 mW
数模转换数DAC 2
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 16

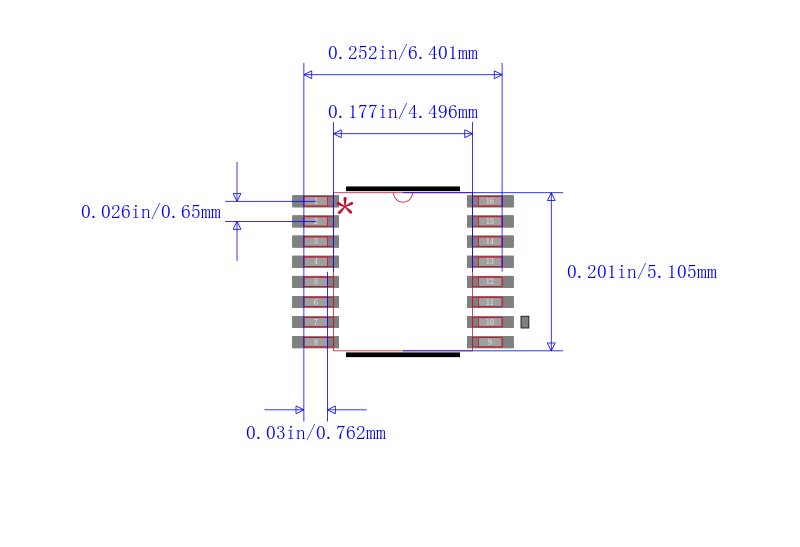

封装 TSSOP-16
高度 1.05 mm
封装 TSSOP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD5449YRUZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5449YRUZ 亚德诺 | 完全替代 | AD5449YRUZ-REEL7和AD5449YRUZ的区别 |
AD5449YRU 亚德诺 | 完全替代 | AD5449YRUZ-REEL7和AD5449YRU的区别 |
AD5449YRU-REEL7 亚德诺 | 完全替代 | AD5449YRUZ-REEL7和AD5449YRU-REEL7的区别 |
