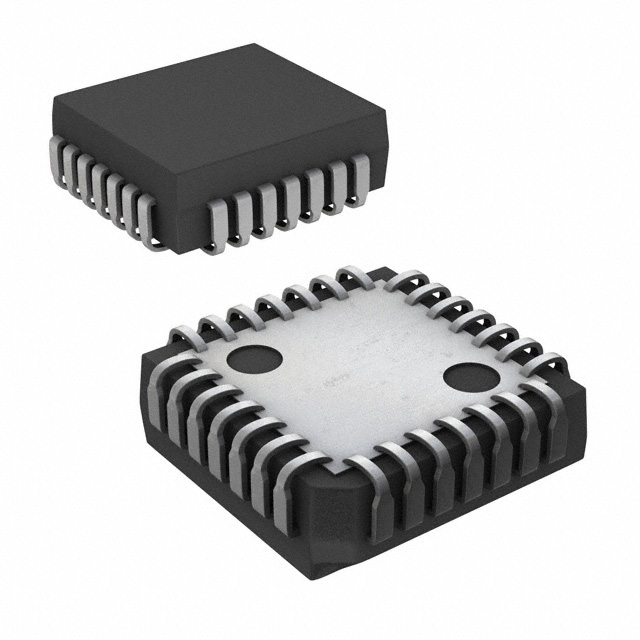

ADC0848CCV图片1
ADC0848CCV图片2
ADC0848CCV图片3
ADC0848CCV图片4
ADC0848CCV图片5
ADC0848CCV图片6
ADC0848CCV图片7
ADC0848CCV图片8
ADC0848CCV概述

TEXAS INSTRUMENTS  ADC0848CCV  模数转换器, 8 bit, 25 kSPS, 单, 4.5 V, 6 V, LCC

The is a 8-bit successive approximation Analog-to-digital Converter ADC with versatile analog input multiplexers. The 8-channel multiplexers can be software configured for single-ended, differential or pseudo-differential modes of operation. The differential mode provides low frequency input common mode rejection and allows offsetting the analog range of the converter. In addition, the A/D reference can be adjusted enabling the conversion of reduced analog ranges with 8-bit resolution. The A/D is designed to operate from the control bus of a wide variety of microprocessors. TRI-STATE output latches that directly drive the data bus permit the A/D to be configured as memory locations or I/O devices to the microprocessor with no interface logic necessary.

.
Easy interface to all microprocessors
.
No zero or full-scale adjust required
.
Internal clock
.
Green product and no Sb/Br
ADC0848CCV中文资料参数规格
技术参数

电源电压DC 4.50V min

供电电流 2.5 mA

电路数 1

通道数 8

针脚数 28

位数 8

耗散功率 15 mW

采样率 25 ksps

功耗 15.0 mW

模数转换数ADC 1

输入数 4, 8

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 875 mW

电源电压 4.5V ~ 6V

电源电压Max 6 V

电源电压Min 4.5 V

输入电压 5 V

封装参数

引脚数 28

封装 PLCC-28

外形尺寸

封装 PLCC-28

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 信号处理, 自动化与过程控制

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

ADC0848CCV引脚图与封装图
ADC0848CCV引脚图
ADC0848CCV封装图
ADC0848CCV封装焊盘图
