ANALOG DEVICES AD9708ARZRL Digital to Analog Converter, 8Bit, 125MSPS, Parallel, 2.7V to 5.5V, SOIC, 28Pins
8 位 1 28-SOIC
得捷:
IC DAC 8BIT A-OUT 28SOIC
立创商城:
AD9708ARZRL
艾睿:
If you need analog outputs such as audio and video from a given set of digital input, look no further than the AD9708ARZRL DAC converter, developed by Analog Devices. It has a current output. This device is based on Segment architecture. This device&s;s digital interface is parallel. This DAC has a resolution of 8bit. This DAC has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device uses analog and digital power.
Chip1Stop:
DAC 1-CH Segment 8-bit 28-Pin SOIC W T/R
Verical:
DAC 1-CH Segment 8-bit 28-Pin SOIC W T/R
Newark:
# ANALOG DEVICES AD9708ARZRL Digital to Analog Converter, 8 bit, 125 MSPS, Parallel, 2.7V to 5.5V, SOIC, 28 Pins
罗切斯特:
D/A Converter, Parallel, 8 Bits Input Loading, 0.035us Settling Time, PDSO28
输出接口数 1
供电电流 25.0 mA
通道数 1
位数 8
耗散功率 0.175 W
采样率 125 Msps
分辨率Bits 8.0
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 175 mW
数模转换数DAC 1
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 28

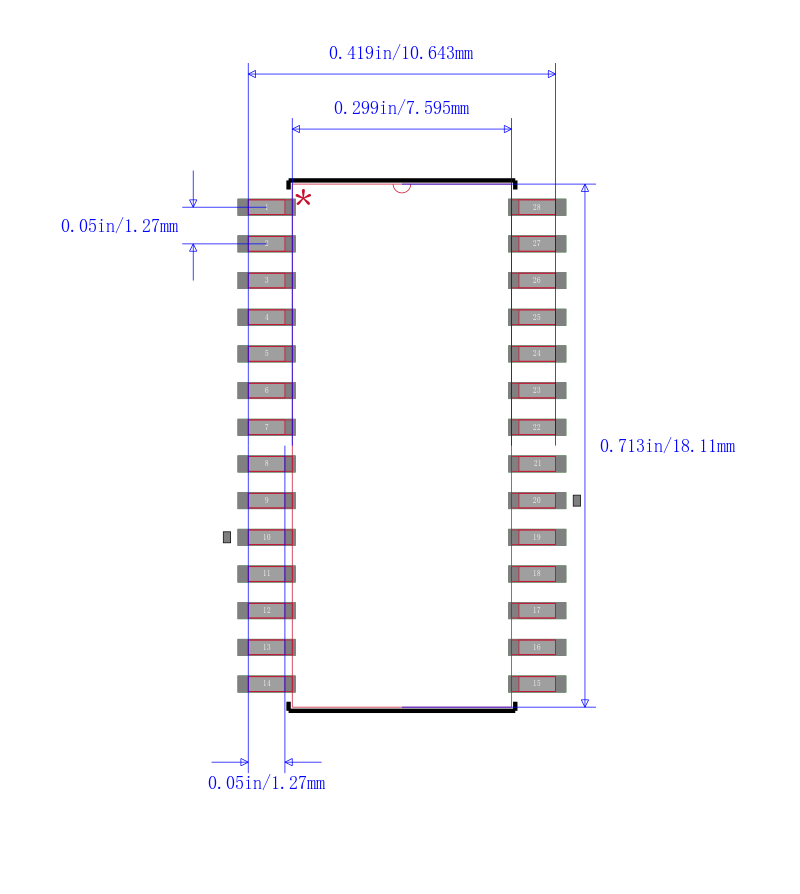

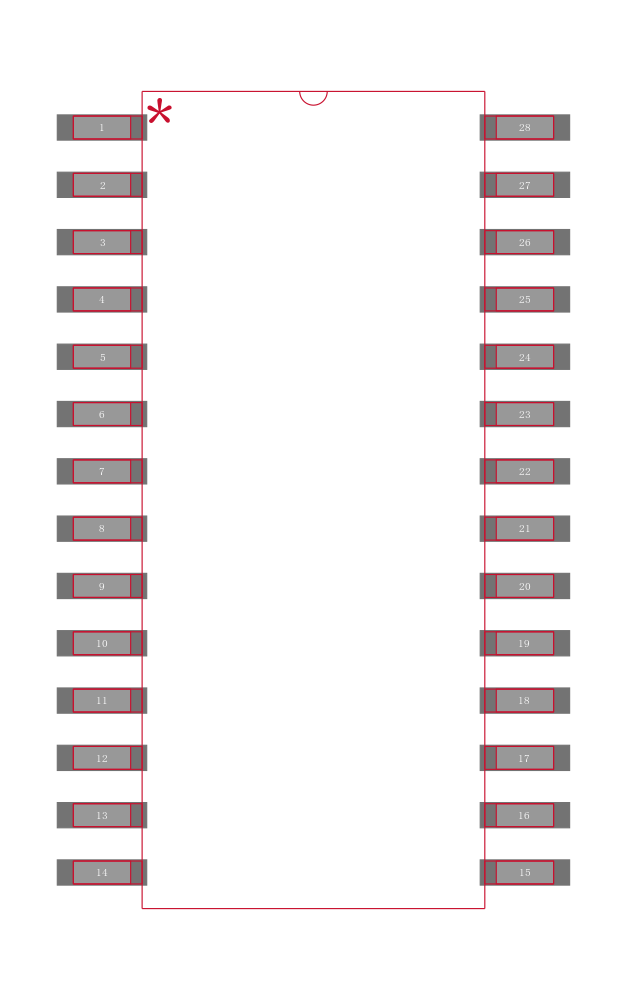

封装 SOIC-28
高度 2.35 mm
封装 SOIC-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD9708ARZRL ADI 亚德诺 | 当前型号 | 当前型号 |
AD9708AR 亚德诺 | 完全替代 | AD9708ARZRL和AD9708AR的区别 |
AD9708ARU 亚德诺 | 完全替代 | AD9708ARZRL和AD9708ARU的区别 |
