ANALOG DEVICES AD5680BRJZ-2REEL7 芯片, 数模转换器, 18位, 12.5KSPS, SOT-23-8
Converting digital signals to analog signals such as audio or video? This DAC converter provided from Analog Devices will do just that! It has a voltage output. This device is based on Resistor-String architecture. This device"s digital interface is serial 3-wire, spi, qspi, microwire. This DAC has a resolution of 18bit. This DAC has a temperature range of -40 °C to 105 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device uses a single power supply.

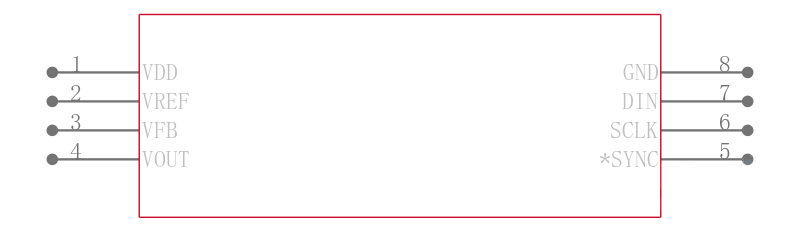

针脚数 8
位数 18
耗散功率 2.5 mW
采样率 12.5 kHz
分辨率Bits 18.0
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 2.5 mW
数模转换数DAC 1
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8

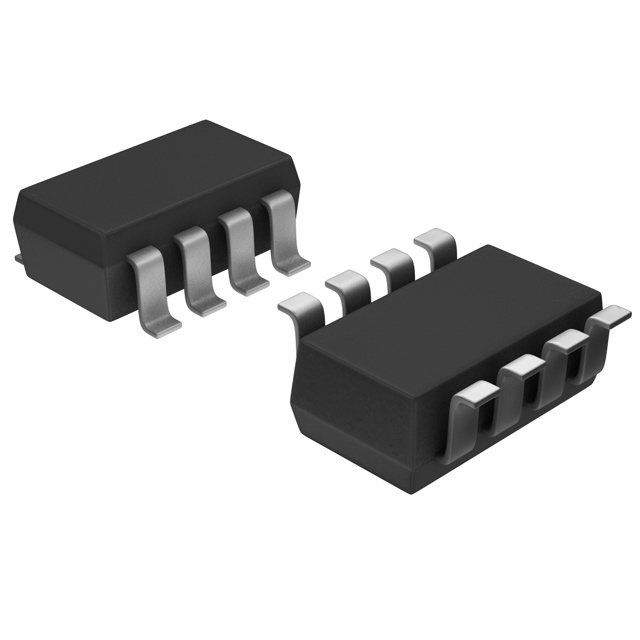

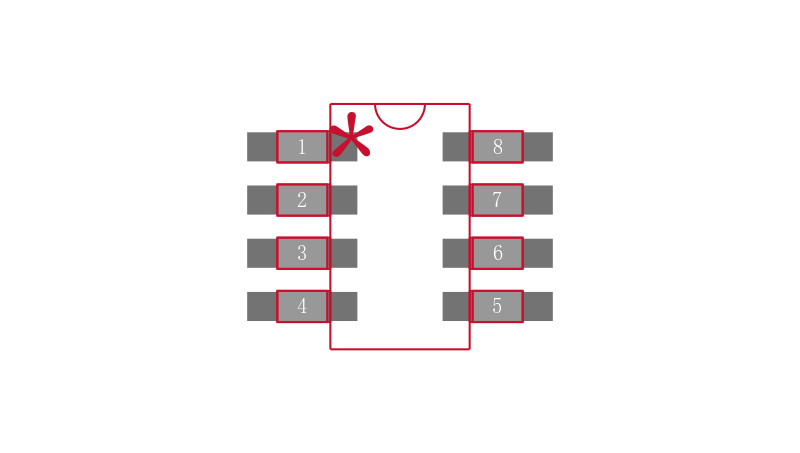

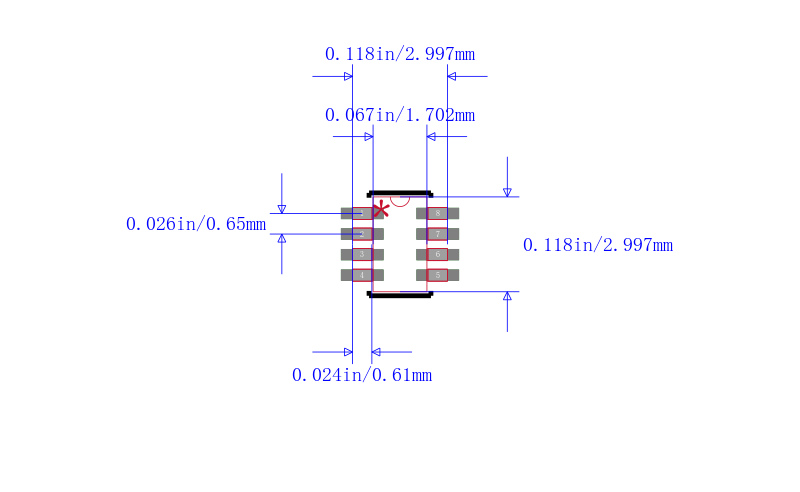

封装 SOT-23-8
封装 SOT-23-8
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD5680BRJZ-2REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5680BRJZ-2500RL7 亚德诺 | 完全替代 | AD5680BRJZ-2REEL7和AD5680BRJZ-2500RL7的区别 |
