具有 5V 输入电压范围的 12 位高速低功耗采样模数转换器 8-VSSOP -40 to 85
If you require your analog signals to be converted into digital data then this ADC from Texas Instruments is perfect. This device is based on SAR architecture. It has a pseudo-differential input signal. This device"s digital interface is serial spi, qspi. Its maximum power dissipation is 20 mW. This ADC has a resolution of 12bit. This ADC has an input voltage of 5 V. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 4.75V min
供电电流 2.20 mA
电路数 1
位数 12
耗散功率 11 mW
采样率 500 ksps
功耗 11.0 mW
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 20 mW
输入通道数 1
输入电压 5 V
安装方式 Surface Mount
引脚数 8

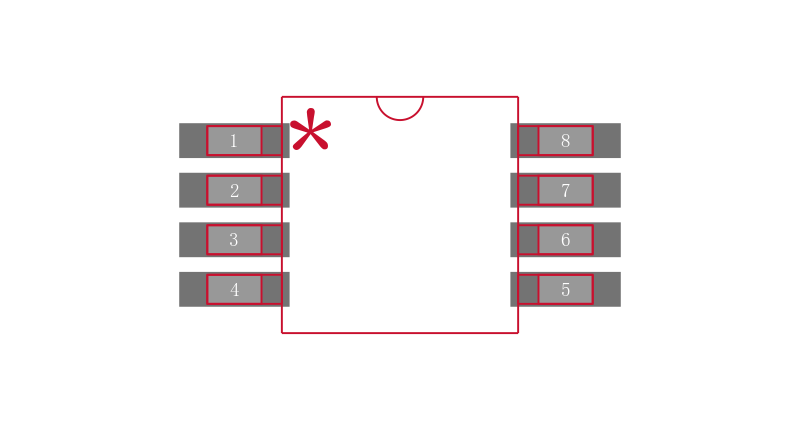

封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADS7818E/250G4 TI 德州仪器 | 当前型号 | 当前型号 |
ADS7818E/250 德州仪器 | 类似代替 | ADS7818E/250G4和ADS7818E/250的区别 |
ADS7818E/2K5G4 德州仪器 | 类似代替 | ADS7818E/250G4和ADS7818E/2K5G4的区别 |
ADS7818E/2K5 德州仪器 | 类似代替 | ADS7818E/250G4和ADS7818E/2K5的区别 |
