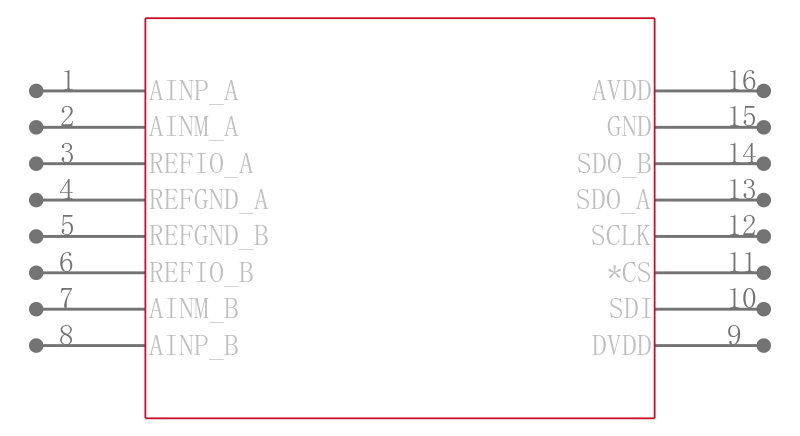

ADS7253IPW

12 位、1MSPS、双路、同步采样差分单端/伪差分 SAR ADC 16-TSSOP -40 to 125

The ADS8353, ADS7853, and ADS7253 belong to a family of pin-compatible, dual, high-speed, simultaneous-sampling, analog-to-digital converters ADCs that support single-ended and pseudo-differential analog inputs.

Each device includes two individually programmable reference sources that can be used for system-level gain calibration. Also, a flexible serial interface that can operate over a wide power-supply range enables easy communication with a large variety of host controllers. Power consumption for a given throughput can be optimized by using the two low-power modes supported by the device. All devices are fully specified over the extended industrial temperature range –40°C to 125°C and are available in pin-compatible, WQFN-16 3-mm × 3-mm and TSSOP-16 packages.
