12位4通道串行输出采样模拟数字转换器 12-Bit, 4-Channel Serial Output Sampling ANALOG-TO-DIGITAL CONVERTER
DESCRIPON
The ADS7841 is a 4-channel, 12-bit sampling Analog-to Digital Converter ADC with a synchronous serial interface. The resolution is programmable to either 8 bits or 12 bits. Typical power dissipation is 2mW at a 200kHz through put rate and a +5V supply. The reference voltage VREF can be varied between 100mV and VCC, providing a correspond ing input voltage range of 0V to VREF. The device includes a shutdown mode which reduces power dissipation to under 15µW. The ADS7841 is tested down to 2.7V operation.
FEATURES
●SINGLE SUPPLY: 2.7V to 5V
●4-CHANNEL SINGLE-ENDED OR 2-CHANNEL DIFFERENTIAL INPUT
●UP TO 200kHz CONVERSION RATE
●±1LSB MAX INL AND DNL
●NO MISSING CODES
●72dB SINAD
●SERIAL INTERFACE
●DIP-16 OR SSOP-16 PACKAGE
●ALTERNATE SOURCE FOR MAX1247
●ADS7841ES: +125°C Version
APPLICATIONS
●DATA ACQUISITION
●TEST AND MEASUREMENT
●INDUSTRIAL PROCESS CONTROL
●PERSONAL DIGITAL ASSISTANTS
●BATTERY-POWERED SYSTEMS
供电电流 550 µA
电路数 1
通道数 2, 4
位数 12
耗散功率 4.5 W
采样率 200 ksps
功耗 1.8 mW
模数转换数ADC 1
输入数 4
工作温度Max 85 ℃
工作温度Min 40 ℃
耗散功率Max 4.5 mW
输入通道数 4, 2
输入电压 2.5V, 5V
安装方式 Surface Mount

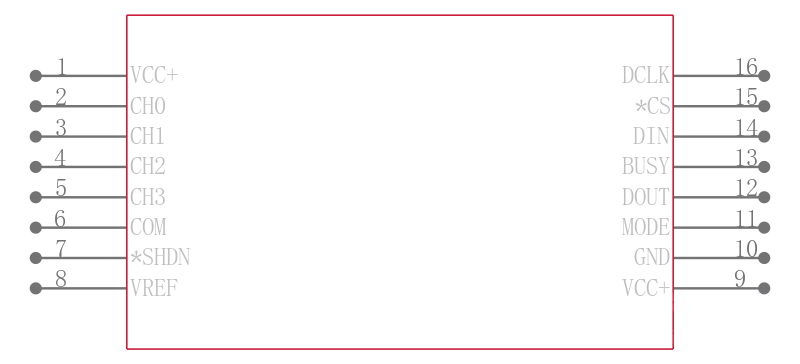

引脚数 16

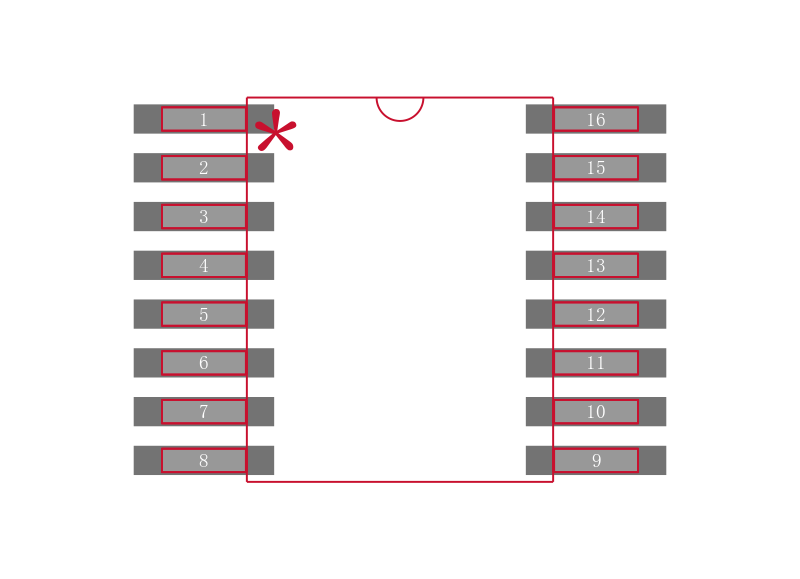

封装 SSOP-16
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SSOP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADS7841EBG4 TI 德州仪器 | 当前型号 | 当前型号 |
ADS7841EB 德州仪器 | 类似代替 | ADS7841EBG4和ADS7841EB的区别 |
ADS7841EB/2K5 德州仪器 | 类似代替 | ADS7841EBG4和ADS7841EB/2K5的区别 |
ADS7841EB/2K5G4 德州仪器 | 类似代替 | ADS7841EBG4和ADS7841EB/2K5G4的区别 |
