伪差分, 555 kSPS的12位ADC,采用8引脚SOT- 23 Pseudo Differential, 555 kSPS 12-Bit ADC in an 8-Lead SOT-23
Product Details
The AD7453 is a 12-bit, low-power, successive-approximation SAR analog-to-digital converters that features a pseudo differential analog input. This part operates from a single 2.7 V to 5.25 V power supply and features throughput rates up to 555 kSPS.
The part contains a low-noise, wide bandwidth, differential track and hold amplifier T/H which can handle input frequencies in excess of 1 MHz with the -3 dB point being 20 MHz typically. The reference voltage is applied externally to the VREF pin and can be varied from 100 mV to 3.5 V depending on the power supply and what suits the application.
The conversion process and data acquisition are controlled using CS and the serial clock allowing the device to interface with Microprocessors or DSPs. The input signals are sampled on the falling edge of CS and the conversion is also initiated at this point.
The SAR architecture of this part ensures that there are no pipeline delays.
The AD7453 uses advanced design techniques to achieve very low power dissipation at high throughput rates.
### Features and Benefits
\- 7 mW typ at 555 kSPS with 5 V Supplies
\- 3 mW typ at 555 kSPS with 3 V Supplies
\- 70 dB SINAD at 100 kHz Input Frequency
|
---|---
数字逻辑电平 SAR
电路数 1
通道数 1
位数 12
耗散功率 1.55 mW
采样率 555 ksps
分辨率Bits 12.0
输入电容 30.0 pF
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 7.25 mW
输入通道数 1
输入电压 2.5 V
安装方式 Surface Mount
引脚数 8

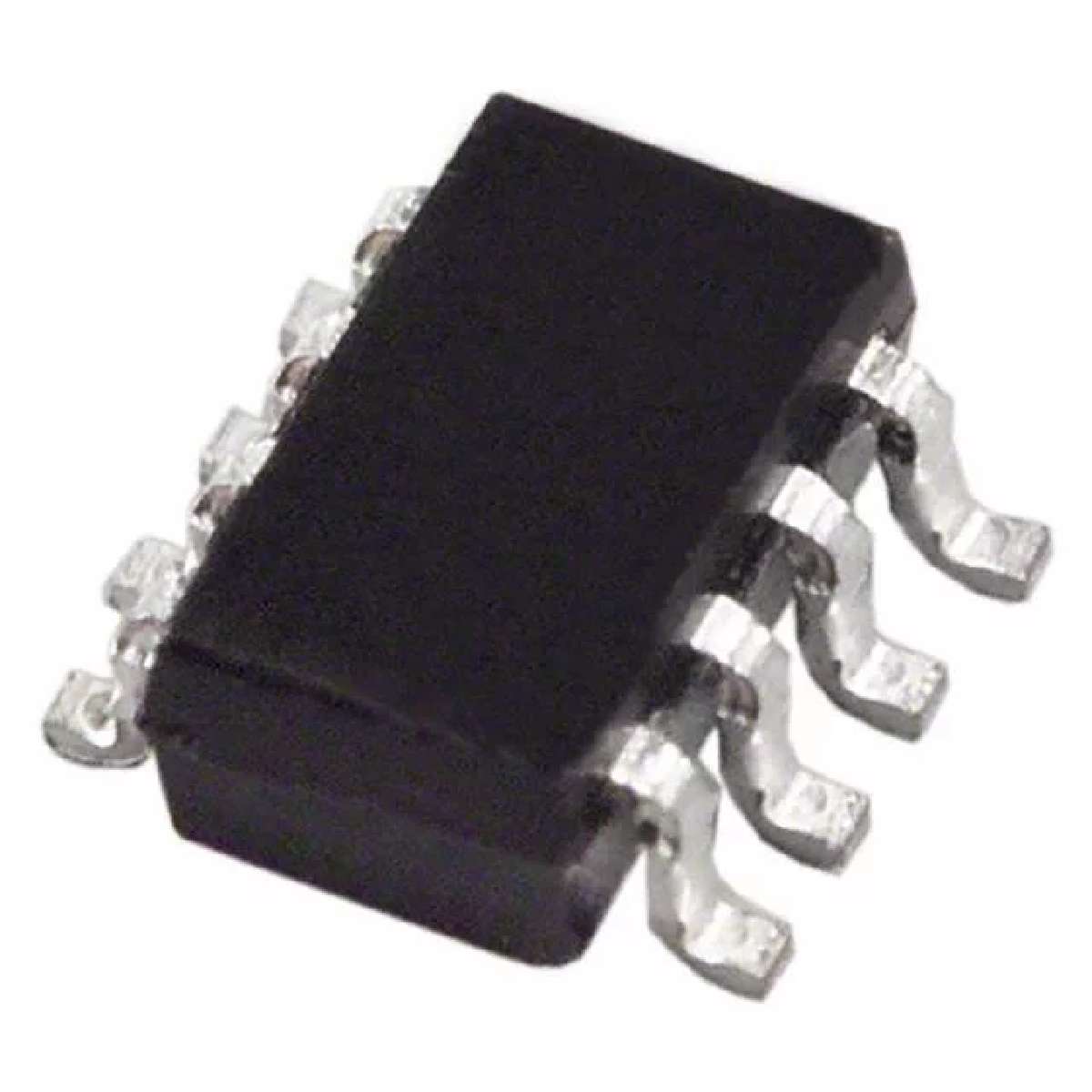

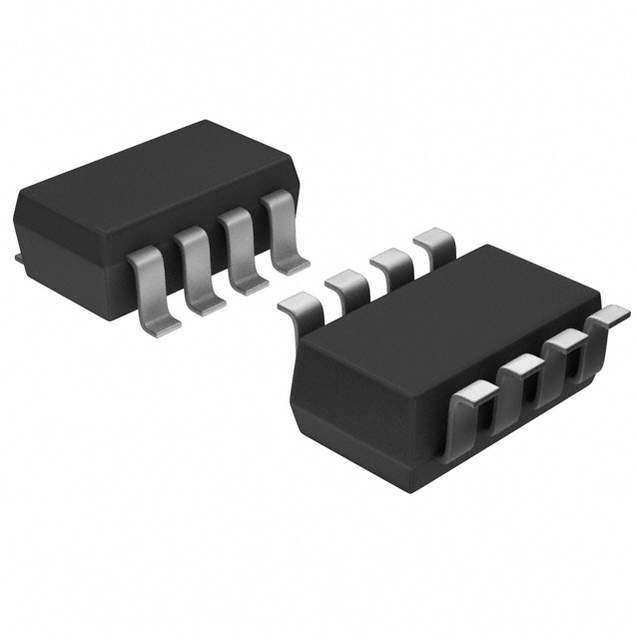

封装 SOT-23-8
高度 1.15 mm
封装 SOT-23-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7453BRTZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD7453BRTZ-R2 亚德诺 | 完全替代 | AD7453BRTZ-REEL7和AD7453BRTZ-R2的区别 |
AD7453ARTZ-REEL7 亚德诺 | 完全替代 | AD7453BRTZ-REEL7和AD7453ARTZ-REEL7的区别 |
AD7453BRT-R2 亚德诺 | 完全替代 | AD7453BRTZ-REEL7和AD7453BRT-R2的区别 |
