AD5333BRUZ-REEL7

IC,D/A CONVERTER,DUAL,10Bit,CMOS,TSSOP,24Pin

Product Details

The AD5332/AD5333/AD5342/AD5343 are dual 8-,10-,and 12-bit DACs. They operate from a 2.5 V to 5.5 V supply consuming just 230 µA at 3 V, and feature a power-down pin, PD that further reduces the current to 80 nA. These devices incorporate an on-chip output buffer that can drive the output to both supply rails, while the AD5333 and AD5342 allow a choice of buffered or unbuffered reference input.

**Product Highlights**

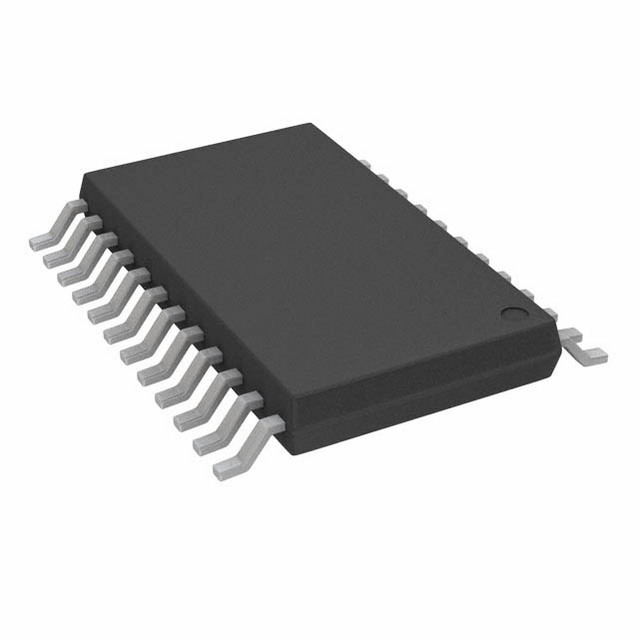

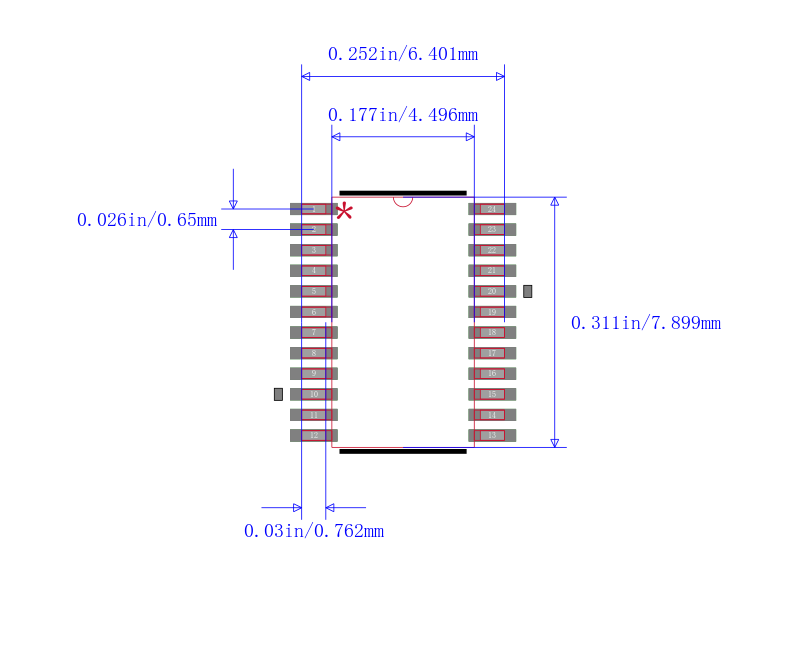

1. Available in a 24-lead TSSOP package

2. Low power, single supply operation from 2.5 V to 5.5 V supply

3. Consumes 0.69 mW at 3 V and 1.5 mW at 5 V

4. On-chip ouput buffer can drive output to both supply rails

5. Allows a choice of buffered/unbuffered reference input

6. Programmable output range 0-VREF or 0-2VREF via GAIN pin

### Features and Benefits

.

Dual 10-Bit DAC in 24-Lead TSSOP

.

Low Power: 300 µA @ 5 V, 230 µA @ 3 V

.

Power-Down to 200 nA @ 5 V, 80 nA @ 3 V

.

Guaranteed Monotonic by Design

.

Power-On-Reset to Zero Volts

.

Double-Buffered Input Logic

.

Simultaneous Update of DAC

.

Outputs via LDAC pin active low

.

Asynchronous Clear Facility

.

via CLR pin active low

.

Low Power Parallel Data Interface

.

Temperature Range: -40°C to 105°C
