AD5663BRMZ

ANALOG DEVICES  AD5663BRMZ  数模转换器, NANO双路, 16 bit, 200 kSPS, 串行, 2.7V 至 5.5V, SOP, 10 引脚

Product Details

The AD5663, a member of th _nano_DAC® family, is a low power, dual, 16-bit buffered voltage-out DAC that operates from a single 2.7 V to 5.5 V supply and is guaranteed monotonic by design.

The AD5663 requires an external reference voltage to set the output range of the DAC. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V or midscale -1 and remains there until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 480 nA at 5 V and provides software-selectable output loads while in power-down mode.

The low power consumption of this part in normal operation makes it ideally suited to portable, battery-operated equipment. The power consumption is 1.25 mW at 5 V, going down to 2.4 μW in power-down mode.

The on-chip precision output amplifier of the AD5663 allows rail-to-rail output swing to be achieved.

The AD5663 uses a versatile, 3-wire serial interface that operates at clock rates up to 50 MHz and is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards.

**Product Highlights**

1. Dual 16-bit DAC; relative accuracy of ±12 LSBs maximum.

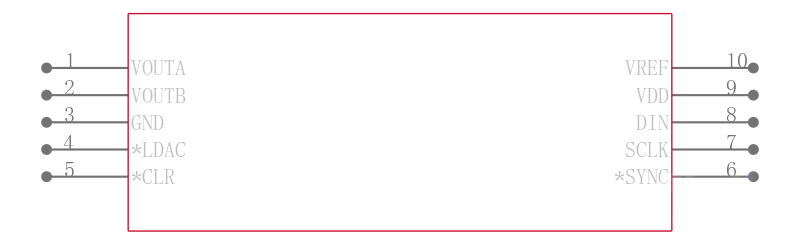

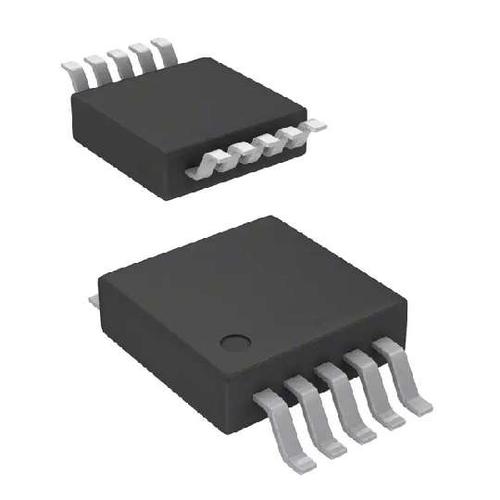

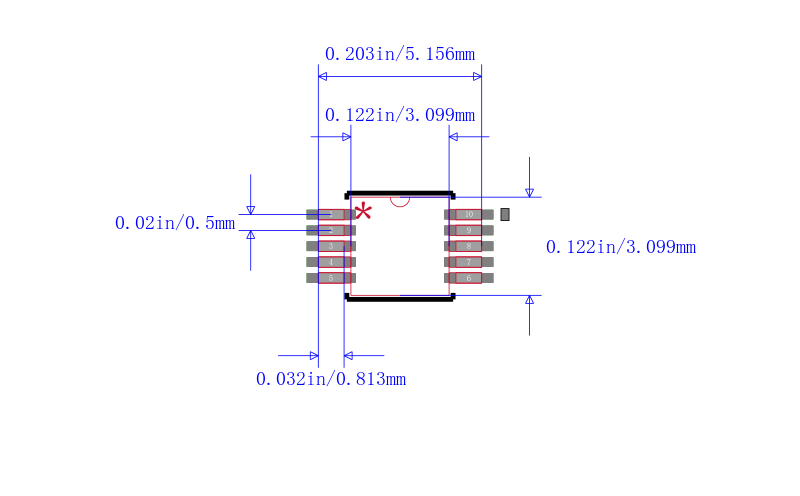

2. Available in 10-lead MSOP and 10-lead, 3 mm × 3 mm LFCSP_WD packages.

3. Low power; typically consumes 0.6 mW at 3 V and 1.25 mW at 5 V.

4. 7 μs maximum settling time.

**Applications**

.

Process control

.

Data acquisition systems

.

Portable battery-powered instruments

.

Digital gain and offset adjustment

.

Programmable voltage and current sources

.

Programmable attenuators

### Features and Benefits

.

Low power, dual 16-bit nanoDAC

.

Relative accuracy: ±12 LSBs maximum

.

Guaranteed monotonic by design

.

10-lead MSOP and 3 mm × 3 mm LFCSP_WD

.

2.7 V to 5.5 V power supply

.

Per channel power-down

.

Power-on reset to zero scale or midscale

.

Hardware LDAC and CLR functions

.

Serial interface; up to 50 MHz
