ADE7754ARZRL概述

数据采集ADC/DAC – 专业 3 Phase Energy Meter IC w/Watt & VA

Don"t forget to implement this data conversion tool from Analog Devices so your computer can recognize your input signals. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.


得捷:
IC ENERGY METERING 3PHASE 24SOIC


立创商城:
ADE7754ARZRL


贸泽:
数据采集ADC/DAC – 专业 3 Phase Energy Meter IC w/Watt & VA


艾睿:
Don&s;t forget to implement this ADE7754ARZRL data conversion tool from Analog Devices so your computer can recognize your input signals. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.


安富利:
Energy Measurement 24-Pin SOIC W T/R


Chip1Stop:
Energy Measurement 24-Pin SOIC W T/R


Verical:
Energy Measurement 24-Pin SOIC W T/R


罗切斯特:
ADE7754 - Polyphase Multifunction Energy Metering IC With Serial Port


DeviceMart:
IC ENERGY METERING 3PHASE 24SOIC


Win Source:
IC ENERGY METERING 3PHASE 24SOIC


ADE7754ARZRL中文资料参数规格
技术参数

电源电压DC 5.00 V

供电电流 7 mA

功耗 70 mW

输入阻抗 370 kΩ

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4.75V ~ 5.25V

封装参数

安装方式 Surface Mount

引脚数 24

封装 SOIC-24

外形尺寸

长度 15.6 mm

宽度 7.6 mm

高度 2.35 mm

封装 SOIC-24

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

ADE7754ARZRL引脚图与封装图
ADE7754ARZRL引脚图

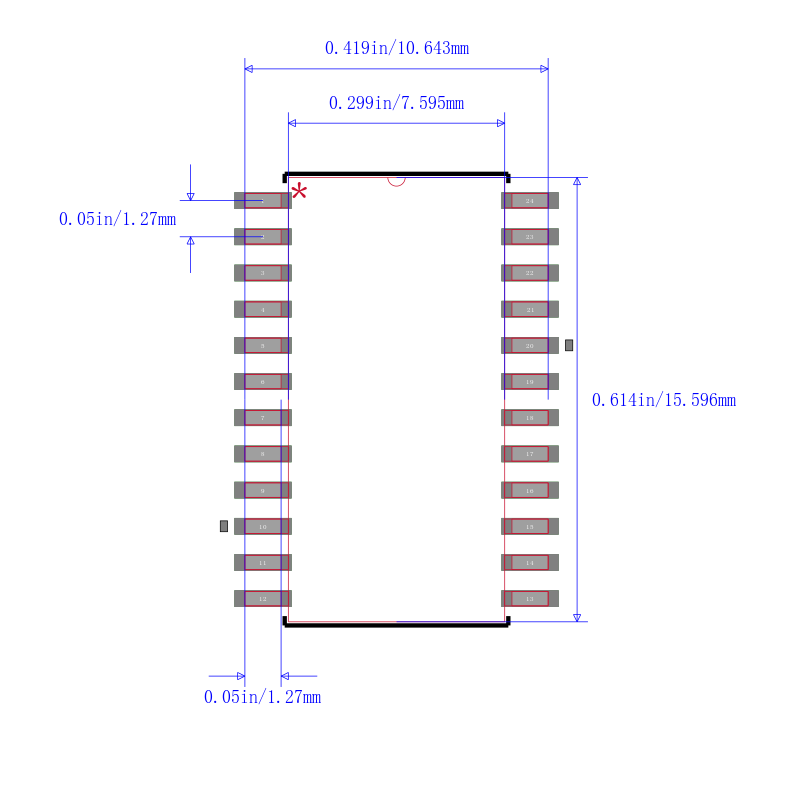

ADE7754ARZRL封装图
ADE7754ARZRL封装焊盘图
在线购买ADE7754ARZRL
型号: ADE7754ARZRL
制造商: ADI 亚德诺
描述:数据采集ADC/DAC – 专业 3 Phase Energy Meter IC w/Watt & VA
替代型号ADE7754ARZRL
型号/品牌 代替类型 替代型号对比

ADE7754ARZRL

ADI 亚德诺

当前型号

当前型号

ADE7754AR

亚德诺

完全替代

ADE7754ARZRL和ADE7754AR的区别

ADE7754ARRL

亚德诺

完全替代

ADE7754ARZRL和ADE7754ARRL的区别
