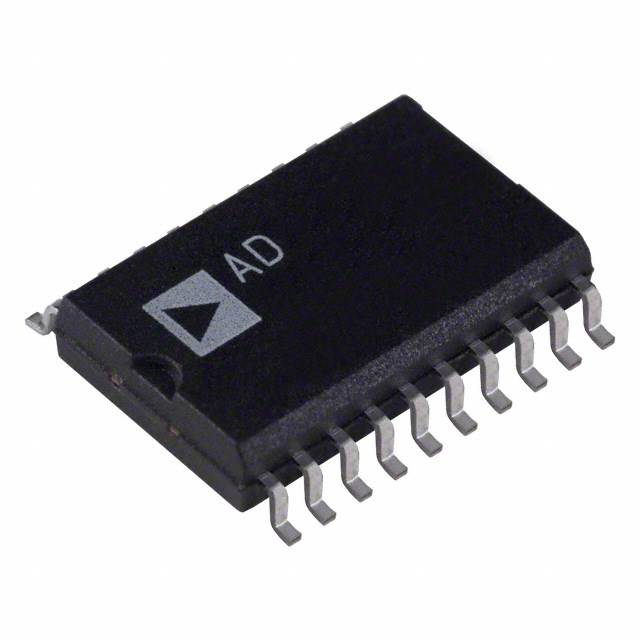

AD8802ARZ-REEL图片1
AD8802ARZ-REEL图片2
AD8802ARZ-REEL图片3
AD8802ARZ-REEL图片4
AD8802ARZ-REEL图片5
AD8802ARZ-REEL概述

DAC 12CH R-2R 8Bit 20Pin SOIC W T/R

Product Details

The 12-channel AD8802/AD8804 provides independent digitally-controllable voltage outputs in a compact 20-lead package. This potentiometer divider TrimDAC allows replacement of the mechanical trimmer function in new designs. The AD8802/ AD8804 is ideal for dc voltage adjustment applications.

Easily programmed by serial interfaced microcontroller ports, the AD8802 with its midscale preset is ideal for potentiometer replacement where adjustments start at a nominal value. Applications such as gain control of video amplifiers, voltage controlled frequencies and bandwidths in video equipment, geometric correction and automatic adjustment in CRT computer graphic displays are a few of the many applications ideally suited for these parts. The AD8804 provides independent control of both the top and bottom end of the potentiometer divider allowing a separate zero-scale voltage setting determined by the VREFL pin. This is helpful for maximizing the resolution of devices with a limited allowable voltage control range.

Internally the AD8802/AD8804 contains 12 voltage-output digital-to-analog converters, sharing a common reference-voltage input.

Each DAC has its own DAC latch that holds its output state. These DAC latches are updated from an internal serial-to-parallel shift register that is loaded from a standard 3-wire serial input digital interface. The serial-data-input word is decoded where the first 4 bits determine the address of the DAC latches to be loaded with the last 8 bits of data. The AD8802/ AD8804 consumes only 10 µA from 5 V power supplies. In addition, in shutdown mode reference input current consumption is also reduced to 10 µA while saving the DAC latch settings for use after return to normal operation.

The AD8802/AD8804 is available in the 20-pin plastic DIP, the SOIC-20 surface mount package, and the 1 mm thin TSSOP-20 package.

### Features and Benefits

.
Low Cost
.
Replaces 12 Potentiometers
.
Individually Programmable Outputs
.
3-Wire SPI Compatible Serial Input
.
Power Shutdown < 55 µWatts
.
Including IDD & IREF
.
Midscale Preset, AD8802
.
Separate VREF Range Settling, AD8804
.
+3 to +5 Single Supply Operation
AD8802ARZ-REEL中文资料参数规格
技术参数

位数 8

耗散功率 0.055 mW

分辨率Bits 8.0

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 0.055 mW

数模转换数DAC 12

封装参数

安装方式 Surface Mount

引脚数 20

封装 SOIC-20

外形尺寸

封装 SOIC-20

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

军工级 No

海关信息

ECCN代码 EAR99

数据手册

AD8802ARZ-REEL引脚图与封装图
AD8802ARZ-REEL引脚图
AD8802ARZ-REEL封装图
AD8802ARZ-REEL电路图
AD8802ARZ-REEL封装焊盘图
