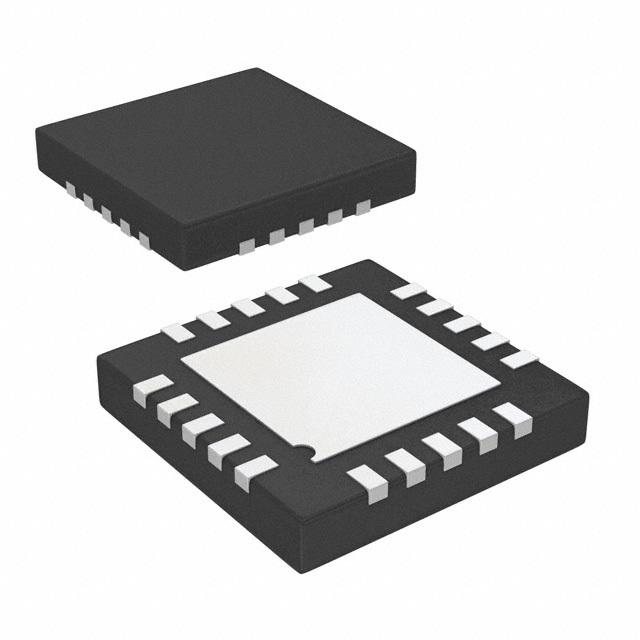

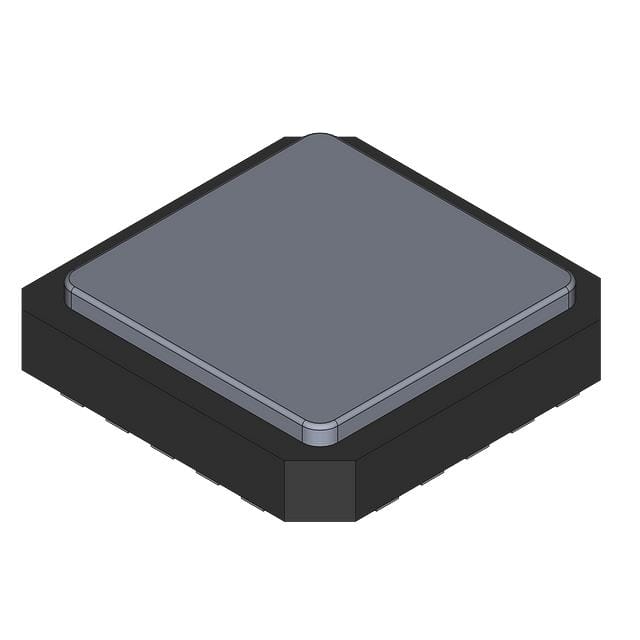

ANALOG DEVICES AD7291BCPZ 模数转换器, 12 bit, 22.22 kSPS, 单, 1.65 V, 3.6 V, LFCSP
模拟至数字转换器 12 位,8 通道,Analog Devices
### 模拟至数字转换器 - Analog Devices
模拟至数字转换器转换模拟电气信号,用于数据处理用途。 Analog Devices 提供行业最大系列 A/D 转换器产品,设计工程师依赖这些产品在接地和空间恶劣环境中提供可靠性能。
得捷:
IC ADC 12BIT SAR 20LFCSP
立创商城:
AD7291BCPZ
欧时:

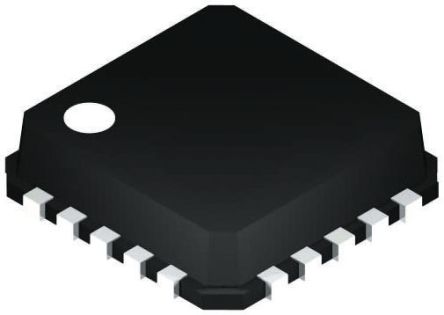

Analog Devices AD7291BCPZ 12 位 ADC, 差分输入, I2C接口, 20引脚 LFCSP WQ封装
贸泽:
模数转换器 - ADC 8Ch 12 bit SAR w/ internal temp sen IC
e络盟:
芯片, 模数转换器, 12位, 22.2 KSPS, I2C-串行口, LFCSP-20
艾睿:
Octal Channel Single ADC SAR 22.22ksps 12-bit Serial 20-Pin LFCSP EP Tray
安富利:
The AD7291 is a 12-bit, low power, 8-channel, successive approximation analog-to-digital converter ADC with an internal temperature sensor.The part operates from a single 3.3 V power supply and features an I2C-compatible interface. The part contains a 9-channel multiplexer and a track-and-hold amplifier than can handle frequencies up to 30 MHz. The device has an on-chip 2.5 V reference that can be disabled to allow the use of an external reference.The AD7291 provides a 2-wire serial interface compatible with I2C interfaces. The I2C interface supports standard and fast I2C interface modes. The AD7291 normally remains in a partial power-down state while not converting and powers up for conversions. The conversion process can be controlled by a command mode where conversions occur across I2C write operations or an autocycle mode selected through software control.The AD7291 includes a high accuracy band gap temperature sensor, which is monitored and digitized by the 12-bit ADC to give a resolution of 0.25°C.The AD7291 offers a programmable sequencer, which enables the selection of a preprogrammable sequence of channels for conversion.
Chip1Stop:
Octal Channel Single ADC SAR 22.22ksps 12-bit Serial 20-Pin LFCSP EP Tray
Verical:
Octal Channel Single ADC SAR 22.22ksps 12-bit Serial 20-Pin LFCSP EP Tray
Newark:
# ANALOG DEVICES AD7291BCPZ Analog to Digital Converter, 12 bit, 22.22 kSPS, Single, 1.65 V, 3.6 V, LFCSP
罗切斯特:
ADC, Successive Approximation, 12-Bit, 8 Channel, Serial Access
DeviceMart:
IC ADC 12BIT SAR 8CH 20-LFCSP
电源电压DC 1.65V min
电路数 1
通道数 8
针脚数 20
位数 12
耗散功率 12.6 W
采样率 22.22 ksps
分辨率Bits 12.0
输入电容 34.0 pF
模数转换数ADC 1
输入数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 12.6 mW
输入通道数 8
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
输入电压 2.5 V
安装方式 Surface Mount
引脚数 20
封装 LFCSP-20
长度 4.1 mm
宽度 4.1 mm
高度 0.73 mm
封装 LFCSP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tray
制造应用 Signal Processing, 工业, Automation & Process Control, Industrial, 自动化与过程控制, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7291BCPZ ADI 亚德诺 | 当前型号 | 当前型号 |
