AD5722AREZ

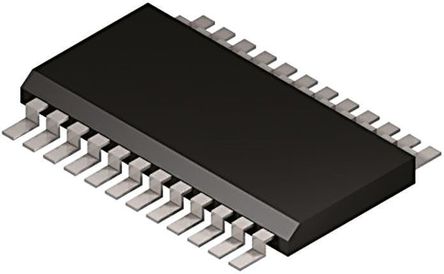

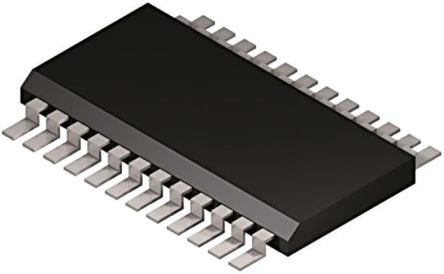

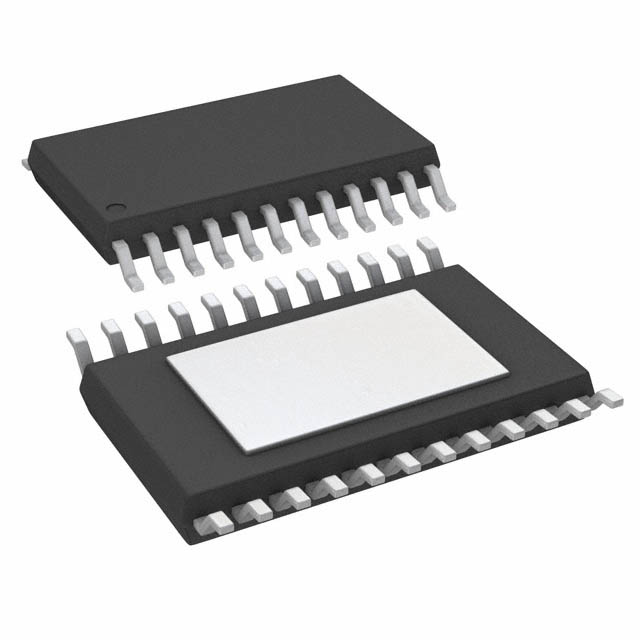

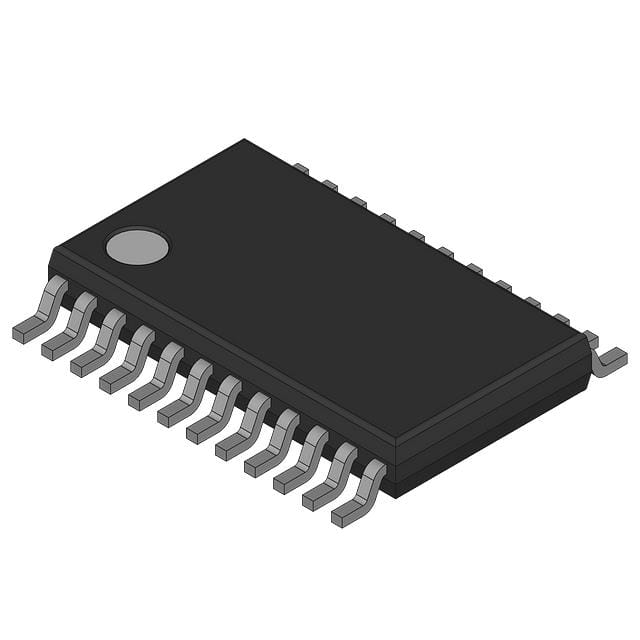

ANALOG DEVICES  AD5722AREZ  芯片, 数模转换器, 12位, TSSOP-24

12 位，2 通道，Analog Devices

### 数字到模拟转换器 - Analog Devices

得捷:
IC DAC 12BIT V-OUT 24TSSOP

欧时:
数模转换器 12 位，2 通道，Analog Devices### 数字到模拟转换器 - Analog Devices

立创商城:
AD5722AREZ

贸泽:
Digital to Analog Converters - DAC IC Dual 12Bit Serial Inpt Vout

艾睿:
DAC 2-CH Resistor-String 12-bit Automotive 24-Pin TSSOP EP Tube

安富利:
The AD5722 is dual, 12-/14-/16-bit, serial input, voltage output, digital-to-analog converters. They operate from single-supply voltages from +4.5 V up to +16.5 V or dualsupply voltages from ±4.5 V up to ±16.5 V. Nominal full-scale output range is software-selectable from +5 V, +10 V, +10.8 V, ±5 V, ±10 V, or ±10.8 V. Integrated output amplifiers, reference buffers, and proprietary power-up/power-down control circuitry are also provided.The parts offer guaranteed monotonicity, integral nonlinearity INL of ±16 LSB maximum, low noise, and 10 μs typical settling time.The AD5722 use a serial interface that operates at clock rates up to 30 MHz and are compatible with DSP and microcontroller interface standards. Double buffering allows the simultaneous updating of all DACs. The input coding is user-selectable twos complement or offset binary for a bipolar output depending on the state of Pin BIN/2sComp, and straight binary for a unipolar output. The asynchronous clear function clears all DAC registers to a user-selectable zero-scale or midscale output. The parts are available in a 24-lead TSSOP and offer guaranteed specifications over the -40°C to +85°C industrial temperature range.

Chip1Stop:
DAC 2-CH Resistor-String 12-bit Automotive 24-Pin TSSOP EP Tube

Verical:
DAC 2-CH Resistor-String 12-bit Automotive 24-Pin TSSOP EP Tube

Newark:
# ANALOG DEVICES  AD5722AREZ  Digital to Analog Converter, 12 bit, Bipolar, Unipolar, ± 4.5V to ± 16.5V, TSSOP, 24 Pins

罗切斯特:
DAC 2-CH Resistor-String 12-bit Automotive 24-Pin TSSOP EP Tube

DeviceMart:
IC DAC DUAL 12BIT 1LSB 24TSSOP
