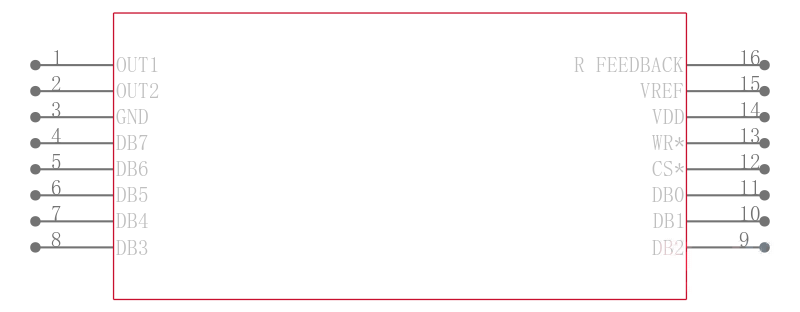

AD7524JRZ-REEL

IC,D/A CONVERTER,SINGLE,8Bit,CMOS,SOP,16Pin

Product Details

The AD7524 is a low cost, 8-bit monolithic CMOS DAC designed for the direct interface to most microprocessors.

Basically an 8-bit DAC with input latches. the AD7524"s load cycle is similar to the "write" cycle of a random access memory. Using an advanced thin-film on CMOS fabrication process, the AD7524 provides accuracy to 1/8LSB with a typical power dissipation of less than 10 milliwatts.

A newly improved design eliminates the protection Schottky previously required and guarantees TTL compatibility when using a +5 supply. Loading speed has been increased for compatibility with most microprocessors.

Featuring operation from +5V to +15V, the AD7524 interfaces directly to most microprocessor buses or output ports.

Excellent multiplying characteristics 2- or 4-quadrant make the AD7524 an ideal choice for many microprocessor controlled gain setting and signal control applications.

**APPLICATIONS**

.

Microprocessor Controlled Gain Circuits

.

Microprocessor Controlled Attenuator Circuits

.

Microprocessor Controlled Function Generation

.

Precision AGC Circuits

.

Bus Structured Instruments

### Features and Benefits

.

Microprocessor compatible 6800, 8085, Z80, etc.

.

TTL/CMOS compatible inputs

.

On-chip data latches

.

Endpoint linearity

.

Low power consumption

.

Monotonicity guaranteed full temperature range

.

Latch free no protection Schottky required

AD7524-EP supports defense and aerospace applications AQEC standard

.

Download AD7524-EP Data Sheet pdf

.

Military temperature range −55°C to +125°C

.

Controlled manufacturing baseline

.

One assembly/test site

.

One fabrication site

.

Enhanced product change notification

.

Qualification data available on request

.

V62/12659-01XB DSCC Drawing Number
