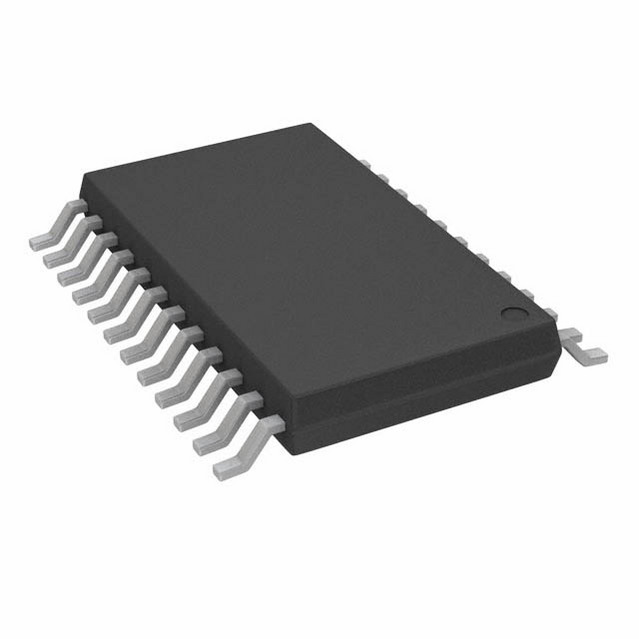

ADC Single Delta-Sigma 105sps 16Bit Serial 24Pin TSSOP T/R
Product Details
The AD7709 is a complete analog front-end for low frequency measurement applications. The AD7709 contains a 16-bit sigma delta ADC with PGA and can be configured as 2 fully-differential input channels or 4 pseudo-differential input channels. Inputs signal ranges from 20mV to 2.56V can be directly converted using the AD7709. These signals can be converted directly from a transducer without the need for signal conditioning. Other on-chip features include three software configurable current sources, switchable reference inputs, low side power switches and a 4-bit digital I/O port.
### Features and Benefits
电路数 1
通道数 4
位数 16
耗散功率 3.75 mW
功耗 3.75 mW
分辨率Bits 16.0
输入阻抗 2.50 GΩ
模数转换数ADC 1
输入数 2, 4
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 8.8 mW
安装方式 Surface Mount
引脚数 24

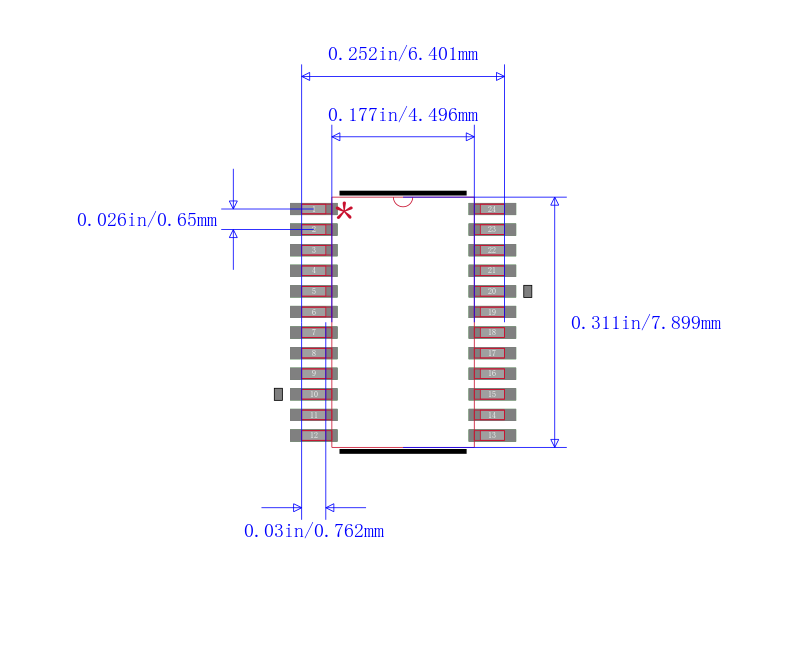

封装 TSSOP-24
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7709BRUZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
AD7709BRUZ 亚德诺 | 完全替代 | AD7709BRUZ-REEL和AD7709BRUZ的区别 |
AD7709ARUZ 亚德诺 | 完全替代 | AD7709BRUZ-REEL和AD7709ARUZ的区别 |
AD7709BRUZ-REEL7 亚德诺 | 完全替代 | AD7709BRUZ-REEL和AD7709BRUZ-REEL7的区别 |
