六电流通道，一电压通道 Six Current Channels, One Voltage Channel
Single Phase 量表 IC 40-LFCSP-WQ（6x6）
得捷:
6 CURRENT ONE VOLTAGE CHNL ENERG
立创商城:
ADE7816ACPZ-RL
艾睿:
Energy Measurement 40-Pin LFCSP EP T/R
安富利:

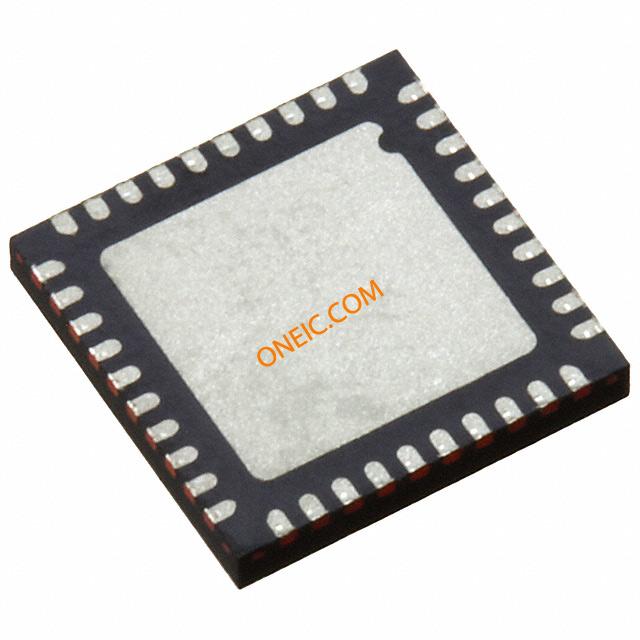

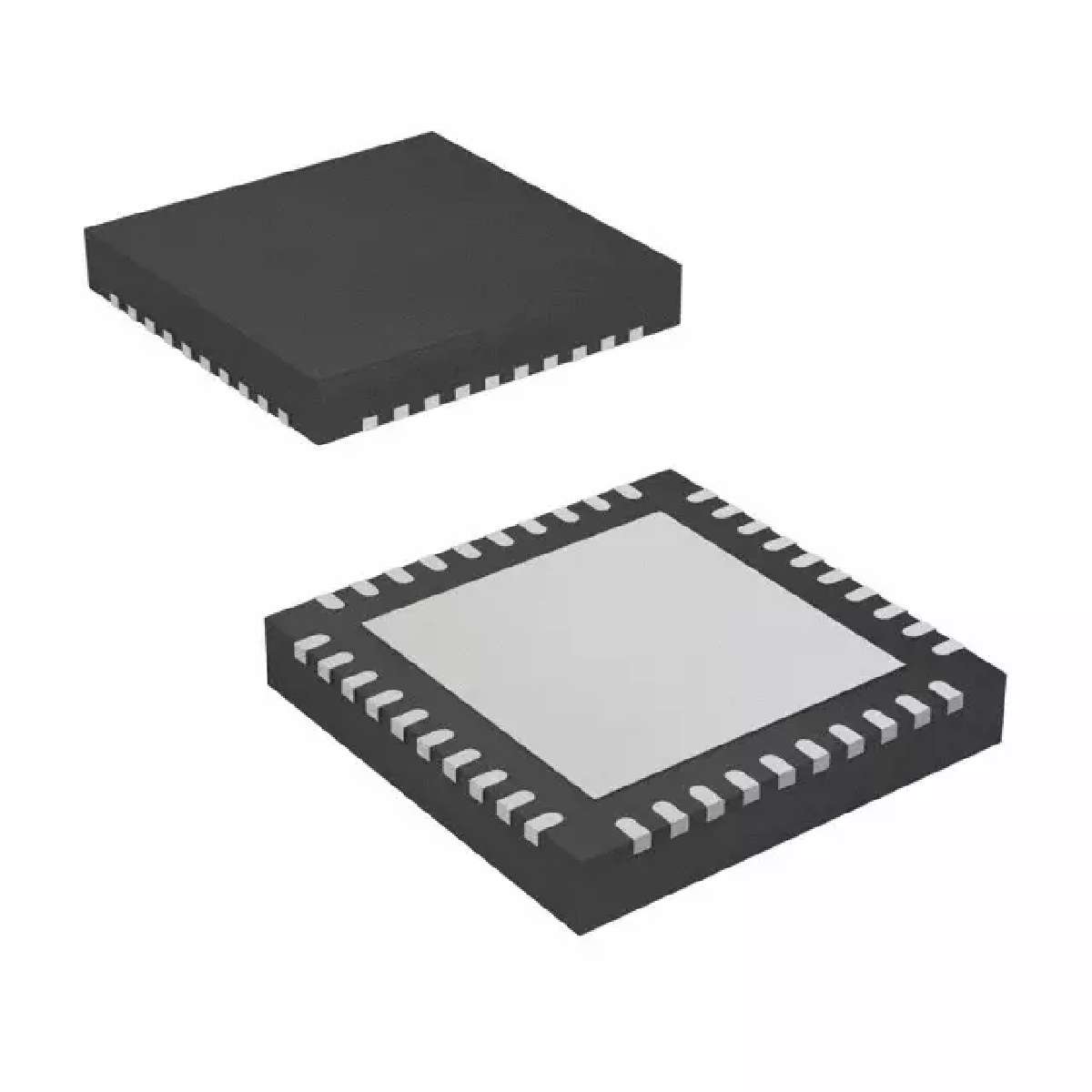

The ADE7816 is a highly accurate, multichannel metering device that is capable of measuring one voltage channel and up to six current channels. It measures line voltage and current and calculates active and reactive energy, as well as instantaneous rms voltage and current. The device incorporates seven sigma-delta Σ-Δ ADCs with a high accuracy energy measurement core. The six current input channels allow multiple loads to be measured simultaneously. The voltage channel and the six current channels each have a complete signal path allowing for a full range of measurements. Each input channel supports a flexible gain stage and is suitable for use with current transformers CTs. Six onchip digital integrators facilitate the use of the Rogowski coil sensors.The ADE7816 energy metering IC operates from a 3.3 V supply voltage and is available in a 40-lead LFCSP that is Pb free and RoHS compliant.
Chip1Stop:
Energy Measurement 40-Pin LFCSP EP T/R
