12位， 8通道采样模拟数字转换器与I2C⑩接口 12-Bit, 8-Channel Sampling ANALOG-TO-DIGITAL CONVERTER with I2C⑩ Interface
Taking a continuous analog signal and converting it to digital data is easy with Texas Instruments" ADC. It has a pseudo-differential and differential input signal. This device is based on SAR architecture. Its maximum power dissipation is 5 mW. This device"s digital interface is serial 2-wire, i2c. This ADC has a resolution of 12bit. This ADC has an input voltage of 2.5 V/5V. This ADC has a temperature range of -40 °C to 85 °C.
电源电压DC 2.70V min
供电电流 750 µA
电路数 1
位数 12
耗散功率 3.75 mW
采样率 50 ksps
功耗 675 µW
模数转换数ADC 1
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 5 mW
输入通道数 4, 8
电源电压Max 5.25 V
电源电压Min 2.7 V
输入电压 2.5V, 5V
安装方式 Surface Mount
引脚数 16

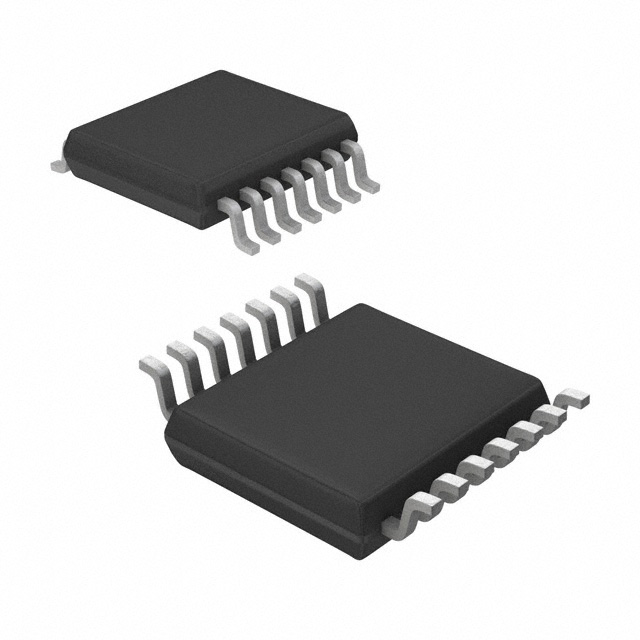

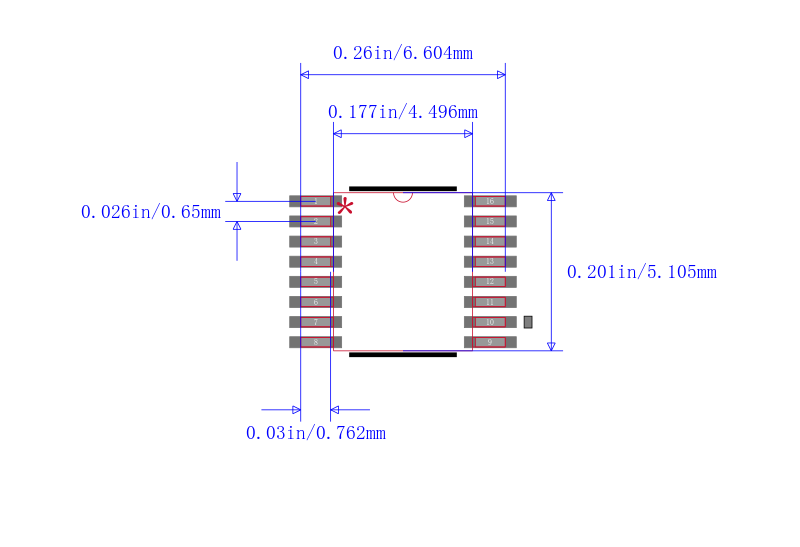

封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADS7828EB/2K5 TI 德州仪器 | 当前型号 | 当前型号 |
ADS7828EB/250 德州仪器 | 完全替代 | ADS7828EB/2K5和ADS7828EB/250的区别 |
ADS7828E/2K5 德州仪器 | 完全替代 | ADS7828EB/2K5和ADS7828E/2K5的区别 |
ADS7828E/250 德州仪器 | 类似代替 | ADS7828EB/2K5和ADS7828E/250的区别 |
