2.5 V至5.5 V八通道电压输出8位/ 10位/ 12位DAC，采用16引脚TSSOP 2.5 V to 5.5 V Octal Voltage Output 8-/10-/12-Bit DACs in 16-Lead TSSOP
Converting digital signals to analog can easily be handled using this from Analog Devices. This device"s digital interface is serial 3-wire, spi, qspi, microwire. It has a voltage output. This device is based on Resistor-String architecture. This DAC has a resolution of 10bit. This DAC has a minimum operating temperature of -40 °C and a maximum of 105 °C. This device comes in tube packaging. This device uses a single power supply.
输出接口数 8
通道数 8
位数 10
耗散功率 0.0045 W
分辨率Bits 10.0
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 4.5 mW
数模转换数DAC 8
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 16

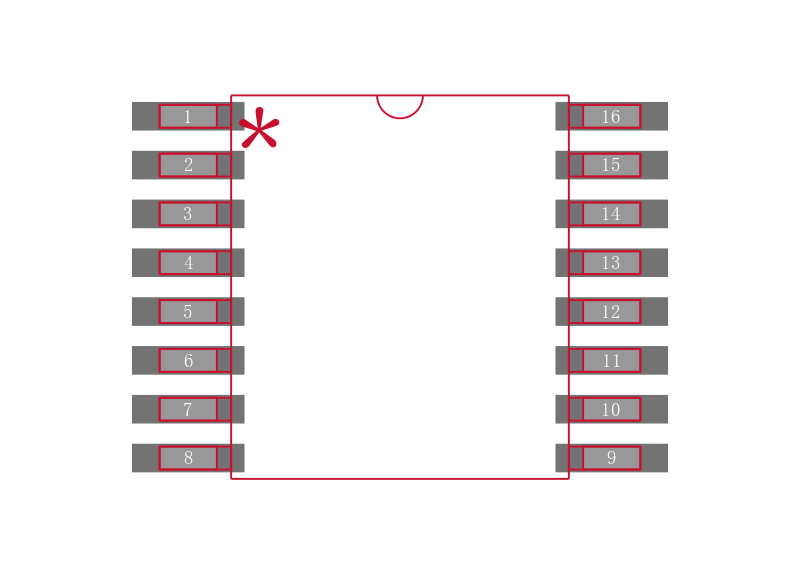

封装 TSSOP-16
高度 1.05 mm
封装 TSSOP-16
工作温度 -40℃ ~ 105℃
产品生命周期 End of Life
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 No
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD5318ARU ADI 亚德诺 | 当前型号 | 当前型号 |
AD5318ARUZ 亚德诺 | 类似代替 | AD5318ARU和AD5318ARUZ的区别 |
