1 MSPS , 12位/ 10位/ 8位ADC,采用6引脚SOT -23 1 MSPS, 12-/10-/8-Bit ADCs in 6-Lead SOT-23
12 位模数转换器 1 输入 1 SAR SOT-23-6
得捷:
IC ADC 12BIT SAR SOT23-6
立创商城:
AD7476BRTZ-REEL7
贸泽:
模数转换器 - ADC 12Bit 1MSPS Lo-Pwr
艾睿:
A must-have for data processing uses, this AD7476BRTZ-REEL7 ADC made by Analog Devices will translate analog electrical signals. Its maximum power dissipation is 15 mW. It has a single-ended input signal. This device&s;s digital interface is serial spi, qspi, microwire. This device is based on SAR architecture. This ADC has a resolution of 12bit. This ADC has an input voltage of 5.25 V. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
Chip1Stop:
Single ADC SAR 600ksps 12-bit Serial 6-Pin SOT-23 T/R
Verical:
Single Channel Single ADC SAR 600ksps 12-bit Serial 6-Pin SOT-23 T/R
罗切斯特:
Single ADC SAR 600ksps 12-bit Serial 6-Pin SOT-23 T/R
Win Source:
IC ADC 12BIT 600KSPS SOT23-6
数字逻辑电平 SAR
电路数 1
通道数 1
位数 12
耗散功率 15 W
采样率 600 ksps
分辨率Bits 12.0
输入电容 30.0 pF
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 15 mW
输入通道数 1
输入电压 5.25 V
安装方式 Surface Mount
引脚数 6

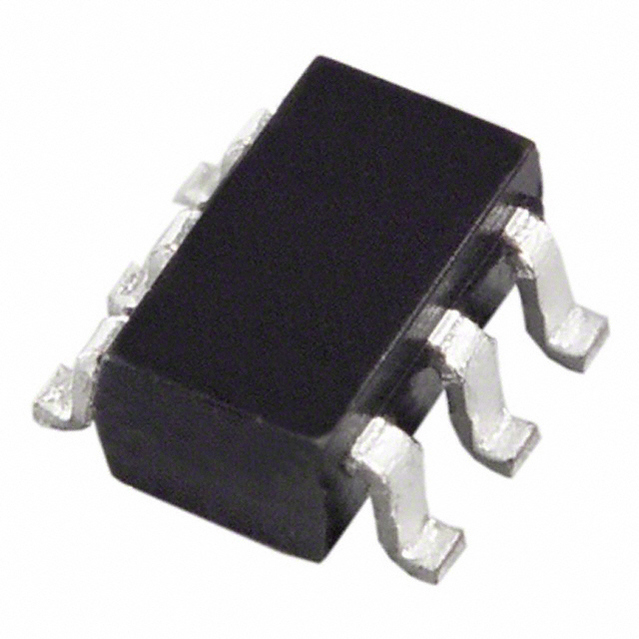

封装 SOT-23-6
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Unmanned Systems, Aerospace and Defense, Avionics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7476BRTZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD7476ARTZ-500RL7 亚德诺 | 类似代替 | AD7476BRTZ-REEL7和AD7476ARTZ-500RL7的区别 |
AD7466BRTZ-REEL7 亚德诺 | 类似代替 | AD7476BRTZ-REEL7和AD7466BRTZ-REEL7的区别 |
AD7476SRTZ-R2 亚德诺 | 类似代替 | AD7476BRTZ-REEL7和AD7476SRTZ-R2的区别 |
