AD7490BCPZ

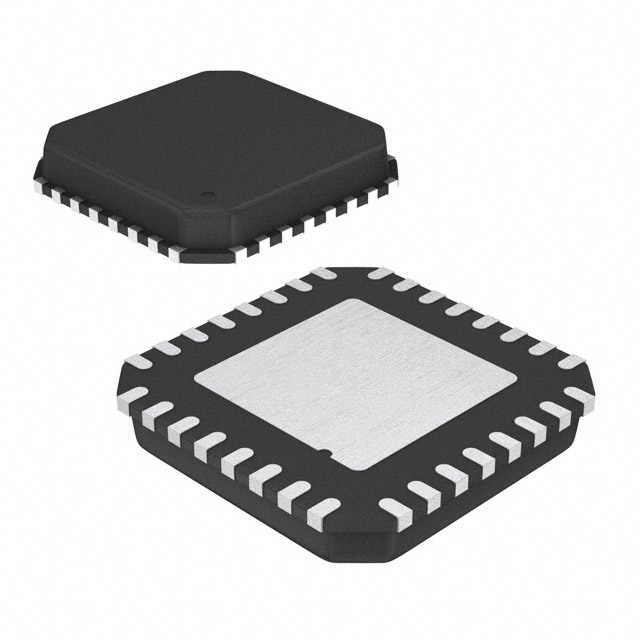

ANALOG DEVICES  AD7490BCPZ  模数转换器, 12 bit, 1 MSPS, 单, 2.7 V, 5.25 V, LFCSP

The is a 12-bit high speed, low power, 16-channel successive approximation Analog-to-digital Converter ADC features throughput rates up to 1MSPS. The part contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 1MHz. The conversion process and data acquisition are controlled using CS and the serial clock signal, allowing the device to easily interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS and conversion is also initiated at this point. There are no pipeline delays associated with the part. It uses advanced design techniques to achieve very low power dissipation at high throughput rates. It also features 16 single-ended analog inputs with a channel sequencer to allow a preprogrammed selection of channels to be converted sequentially. The conversion time is determined by the SCLK frequency because this is also used as the master clock to control the conversion.

.

Low power at max throughput rate

.

Wide input bandwidth

.

Flexible power/serial clock speed management

.

High speed serial interface SPI™/QSPI™/MICROWIRE™/DSP compatible

.

Full shutdown mode - 0.5µA maximum
