2.7~5V,100KSPS,16位高速微功耗采样模数转换器
Texas Instruments offers this ADC that will easily convert your continuous analog signals into digital data without altering essential content. It has a pseudo-differential input signal. This device"s digital interface is serial spi. This device is based on SAR architecture. Its maximum power dissipation is 8.5 mW. This ADC has a resolution of 16bit. This ADC has an input voltage of 5 V. This ADC has a temperature range of -40 °C to 85 °C.
数字逻辑电平 SAR
供电电流 900 µA
电路数 1
通道数 1
位数 16
耗散功率 4.5 mW
采样率 100 ksps
功耗 4.5 mW
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 8.5 mW
输入通道数 1
输入电压 5 V
安装方式 Surface Mount

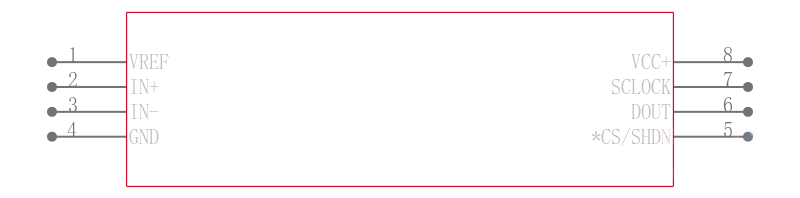

引脚数 8
封装 VSSOP-8
长度 3 mm
宽度 3 mm
高度 0.97 mm
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADS8320EB/2K5 TI 德州仪器 | 当前型号 | 当前型号 |
ADS8320E/250 德州仪器 | 完全替代 | ADS8320EB/2K5和ADS8320E/250的区别 |
ADS8320EB/250 德州仪器 | 类似代替 | ADS8320EB/2K5和ADS8320EB/250的区别 |
ADS8320E/2K5 德州仪器 | 类似代替 | ADS8320EB/2K5和ADS8320E/2K5的区别 |
