AD9740ARU概述

10位, 165 MSPS TxDAC系列D / A转换器 10-Bit, 165 MSPS TxDAC D/A Converter

Product Details

The AD9740 is the 10-bit member of the new third generation family in the _TxDAC_ product line. This new family includes the AD9744 14-bit, AD9742 12-bit, and AD9740 10-bit high-speed _TxDAC_ converters with a maximum sampling rate of 210 MSPS. The family is pin-compatible with the previous two generations AD9764/AD9762/AD9760 and AD9754/AD9752/AD9750 with improved performance and lower power dissipation.

The _TxDAC_ product line is optimized for the transmit signal path of communications systems. All of the devices, including the first two generations, share the same interface options, small outline package and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD974x family has lower power dissipation than previous generations, making all three converters suitable for portable and low power applications.

_TxDAC_ is a registered trademark of Analog Devices.

**Applications**

Wideband communication transmit channel

.
Direct IF
.
Base stations
.
Wireless local loops
.
Digital radio links
.
Direct digital synthesis DDS
.
Instrumentation

### Features and Benefits

.
Pin-Compatible TxDAC Product Family
.
Industry Standard 28-lead SOIC and TSSOP Packages
.
SFDR to Nyquist at 20 MHz Output, 210 MSPS: 73 dBc
.
Two"s Complement or Straight Binary Data Format
.
Power Dissipation: 135 mW at 3.3 V Power-Down Mode: 15 mW
.
On-Chip 1.20 V Reference
AD9740ARU中文资料参数规格
技术参数

位数 10

耗散功率 145 mW

采样率 210 Msps

分辨率Bits 10.0

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压Max 3.6 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 28

封装 TSSOP-28

外形尺寸

高度 1.05 mm

封装 TSSOP-28

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Obsolete

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

军工级 No

数据手册

AD9740ARU引脚图与封装图

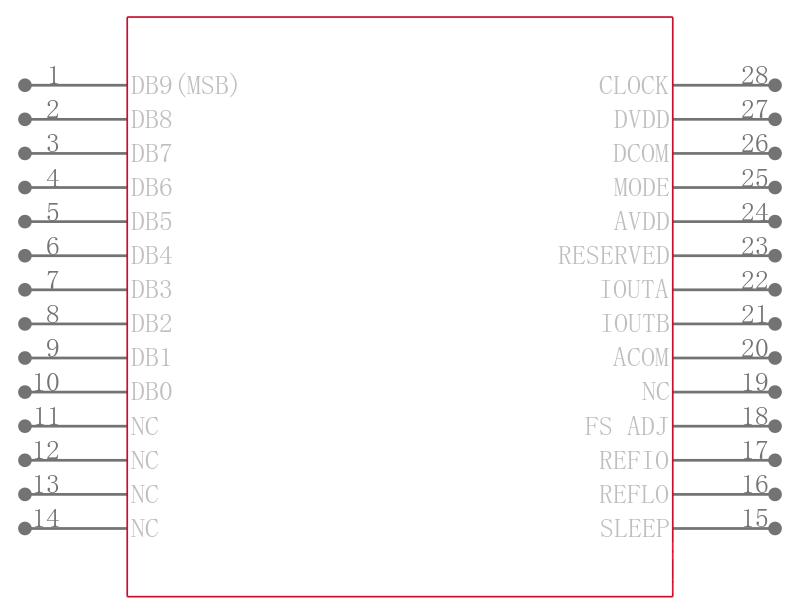

AD9740ARU引脚图

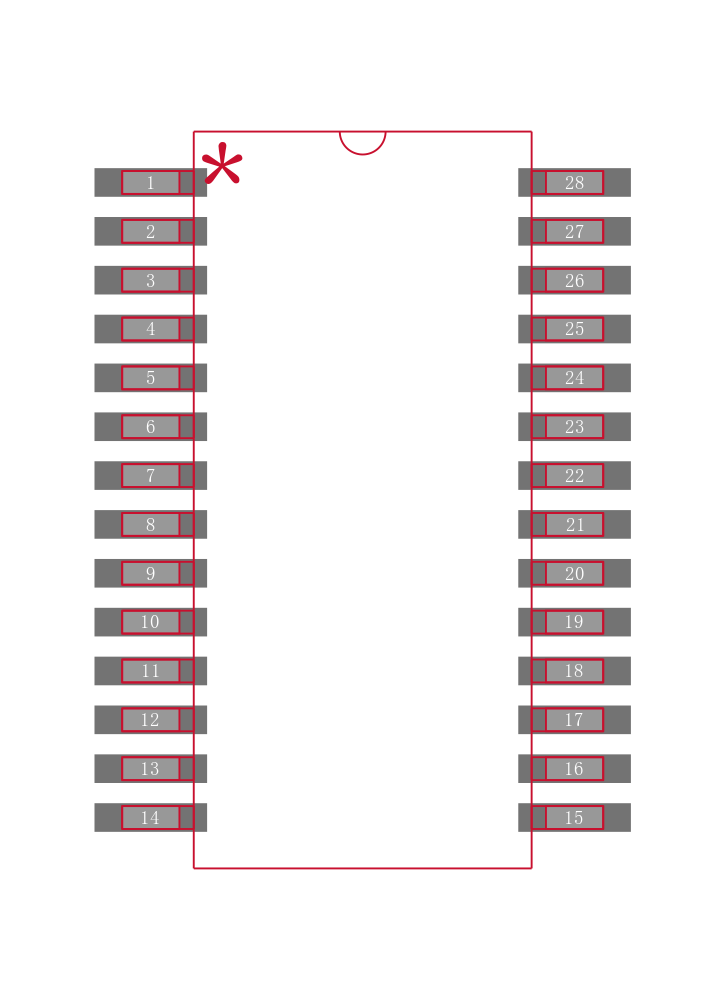

AD9740ARU封装图
AD9740ARU电路图

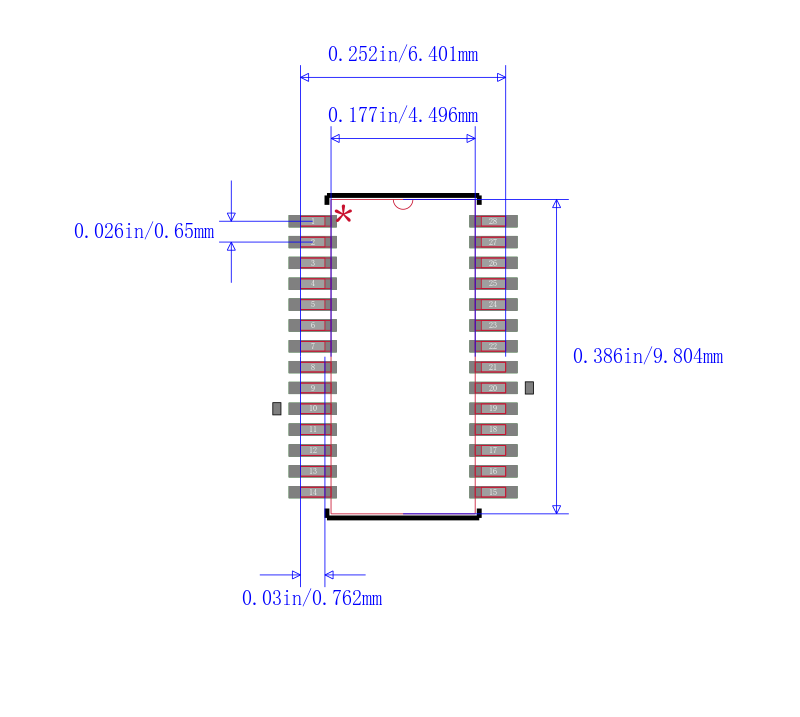

AD9740ARU封装焊盘图
