AD5643RBRMZ-5

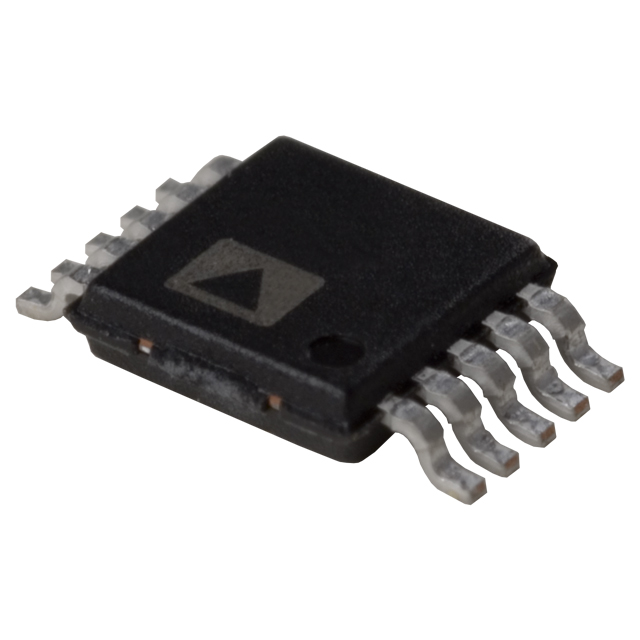

ANALOG DEVICES  AD5643RBRMZ-5  数模转换器, NANO双路, 14 bit, 250 kSPS, 串行, 4.5V 至 5.5V, SOP, 10 引脚

The is a low power dual 14-bit buffered voltage-out Digital-to-analog Converter DAC operates from a single 2.7 to 5.5V supply. The AD5643R-5 has a 2.5V, 5ppm/°C reference, giving a full-scale output of 5 V. The on-chip reference is off at power-up, allowing the use of an external reference and all devices can be operated from a single 2.7 to 5.5V supply. The internal reference is turned on by writing to the DAC. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0V and remains until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 480nA at 5V and provides software-selectable output loads while in power-down mode. It uses a versatile, 3-wire serial interface that operates at clock rates up to 50 MHz and they are compatible with standard SPI®, QSPI™, MICROWIRE™ and DSP interface standards.

.

Guaranteed monotonic by design

.

Power-on reset to zero scale

.

Per channel power-down

.

Serial interface up to 50MHz

.

Hardware LDAC and CLR functions
