AD7895ARZ-3

ANALOG DEVICES  AD7895ARZ-3  模数转换器, 双极, 12 bit, 192 kSPS, 单, 4.75 V, 5.25 V, SOIC

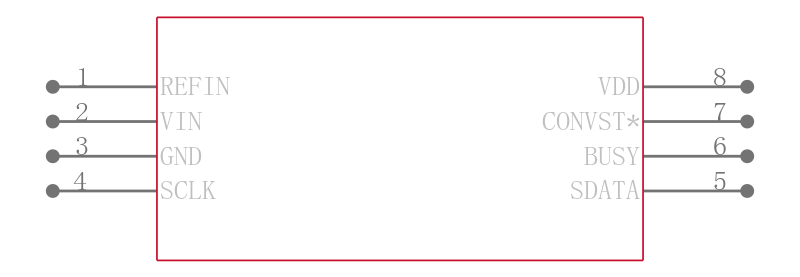

Product Details

The AD7895 is a fast 12-bit ADC that operates from a single +5 V supply and is housed in a small 8-pin mini-DIP and 8-pin SOIC. The part contains a 3.8 µs successive approximation A/D converter, an on-chip track/hold amplifier, an on-chip clock and a high speed serial interface.

Output data from the AD7895 is provided via a high speed, serial interface port. This two-wire serial interface has a serial clock input and a serial data output with the external serial clock accessing the serial data from the part.

In addition to the traditional dc accuracy specifications such as linearity and full-scale and offset errors, the AD7895 is specified for dynamic performance parameters, including harmonic distortion and signal-to-noise ratio.

The part accepts an analog input range of ±10 V AD7895-10, ±2.5 V AD7895-3, 0 V to 2.5 V AD7895-2 and operates from a single +5 V supply, consuming only 20 mW max.

The AD7895 features a high sampling rate mode and, for low power applications, a proprietary automatic power-down mode where the part automatically goes into power down once conversion is complete and "wakes up" before the next conversion cycle.

The part is available in a small, 8-pin, 0.3" wide, plastic dual-in-line package mini-DIP and in an 8-pin, small outline IC SOIC.

### Features and Benefits

.

Fast 12-Bit ADC with 3.8 µs Conversion Time

.

8-Pin Mini-DlP and SOIC

.

Single 5 V Supply Operation

.

High Speed, Easy-to-Use, Serial Interface

.

On-Chip Track/Hold Amplifier

.

High Input Impedance

.

Selection of Input Ranges:

±10 V for AD7895-10

±2.5 V for AD7895-3

0 V to +2.5 V for AD7895-2

.

Low Power: 20 mW max

.

14-Bit Pin Compatible Upgrade AD7894
