ADAU1962AWBSTZ-RL

DAC 12CH Delta-Sigma 24Bit 80Pin LQFP T/R

Product Details

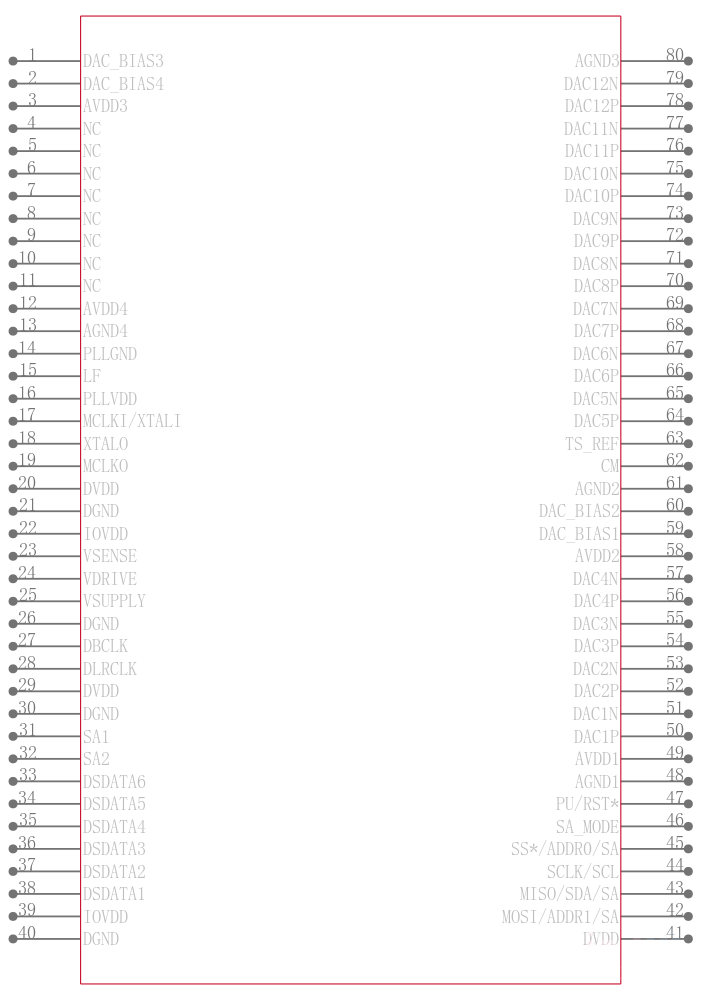

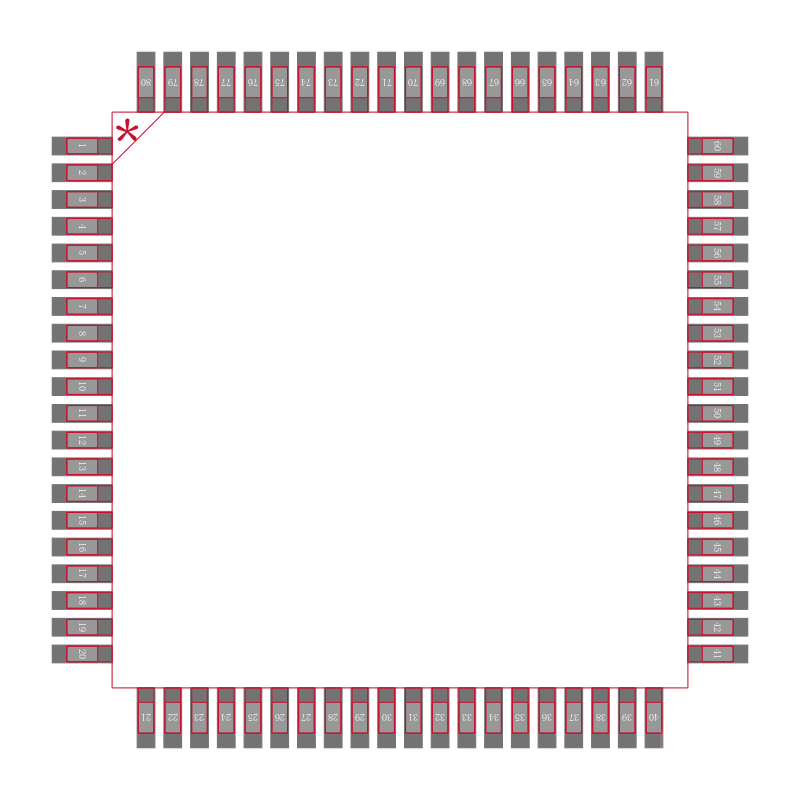

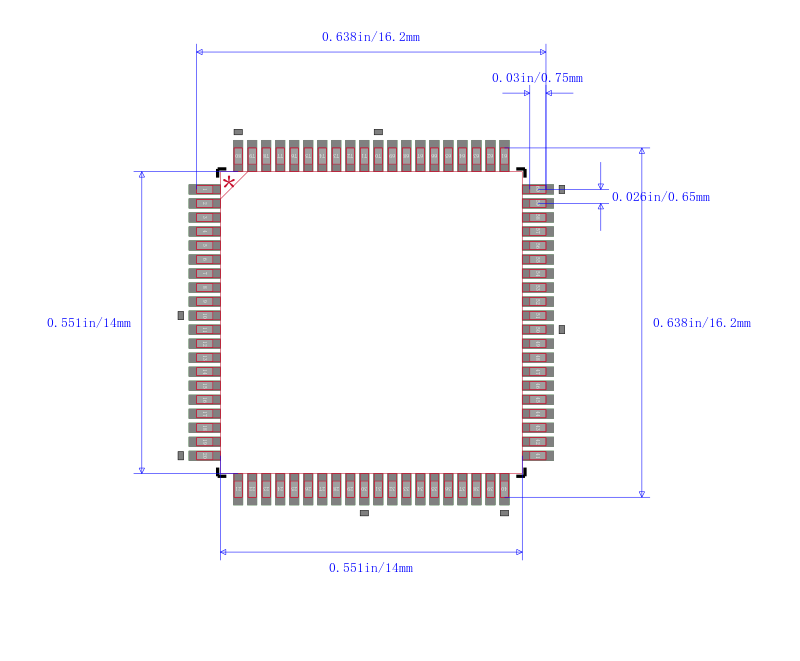

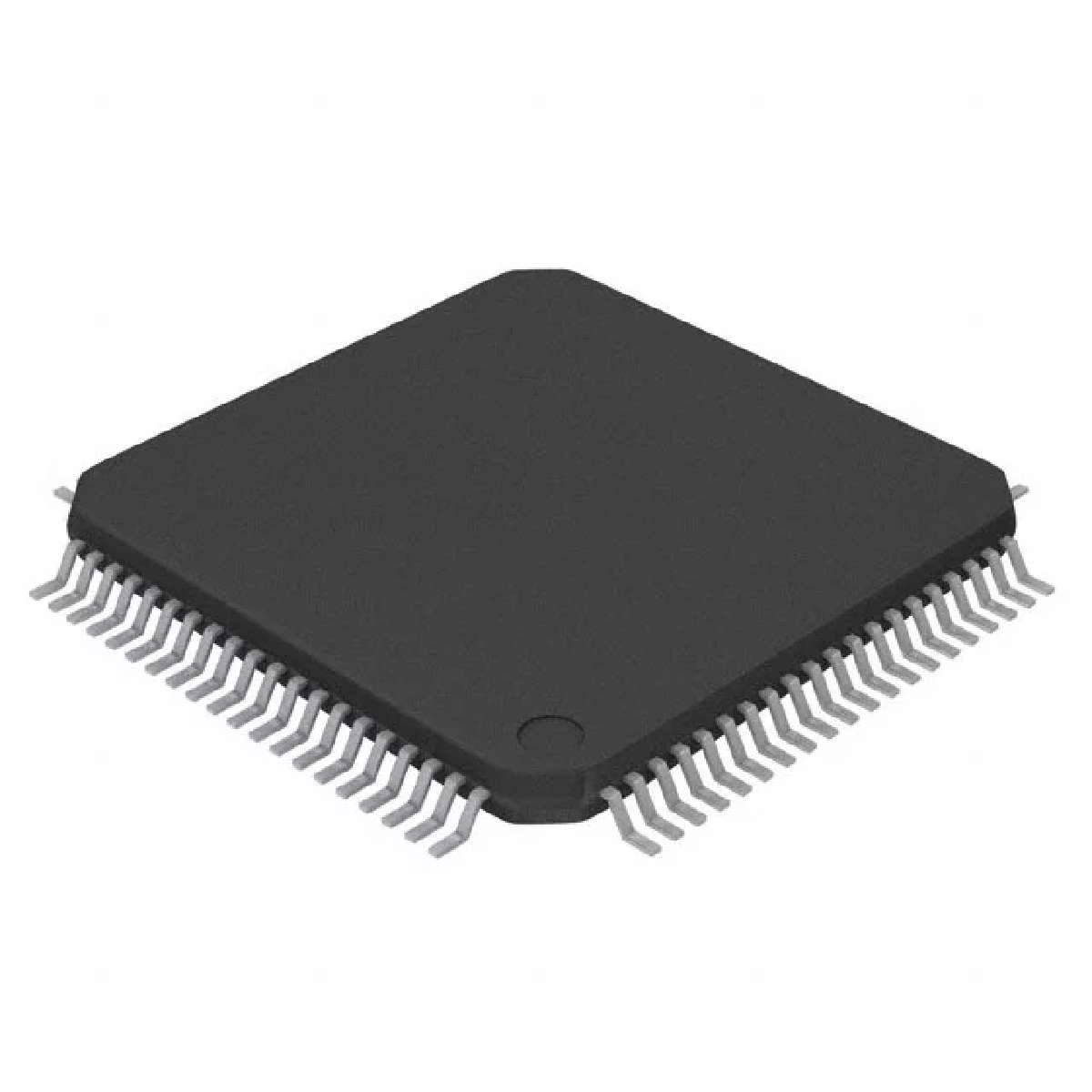

The ADAU1962A is a high performance, single-chip digital-to-analog converter DAC that provides 12 DACs with differential or single-ended outputs using the Analog Devices, Inc., patented multibit Σ-Δ architecture. A serial peripheral interface SPI/I2C port is included, allowing a microcontroller to adjust volume and many other parameters. The ADAU1962A operates from 2.5 V digital and 3.3 V analog supplies. A linear regulator is included to generate the digital supply voltage from the analog supply voltage. The ADAU1962A is available in an 80-lead LQFP.

The ADAU1962A is designed for low EMI. This consideration is apparent in both the system and circuit design architectures. By using the on-board PLL to derive the internal master clock from an external left-right frame clock LRCLK, the ADAU1962A can eliminate the need for a separate high frequency master clock and can be used with or without a bit clock. The DACs are designed using the latest Analog Devices continuous time architectures to further minimize EMI. By using 2.5 V digital supplies, power consumption is minimized, and the digital waveforms are a smaller amplitude, further reducing emissions.

Note that throughout this data sheet, multifunction pins, such as SCLK/SCL, are referred to by the entire pin name or by a single function of the pin, for example, SCLK, when only that function is relevant.

**APPLICATIONS**

.

Automotive audio systems

.

Home theater systems

.

Digital audio effects processors

### Features and Benefits

.

Differential or single-ended voltage DAC output

.

114 dB DAC dynamic range,

A-weighted, differential

.

−97 dB total harmonic distortion plus noise THD + N, differential

.

110 dB DAC dynamic range,

A-weighted, single-ended

.

−95 dB THD + N, single-ended

.

2.5 V digital and 3.3 V analog and input/output I/O supplies

.

249 mW total quiescent power

.

Phase-locked loop PLL generated or direct master clock MCLK

.

Low electromagnetic interference EMI design

.

Linear regulator driver to generate digital supply

.

Supports 24-bit and 32 kHz to

192 kHz sample rates

.

Low propagation 192 kHz sample rate mode

.

See datasheet for additional features
