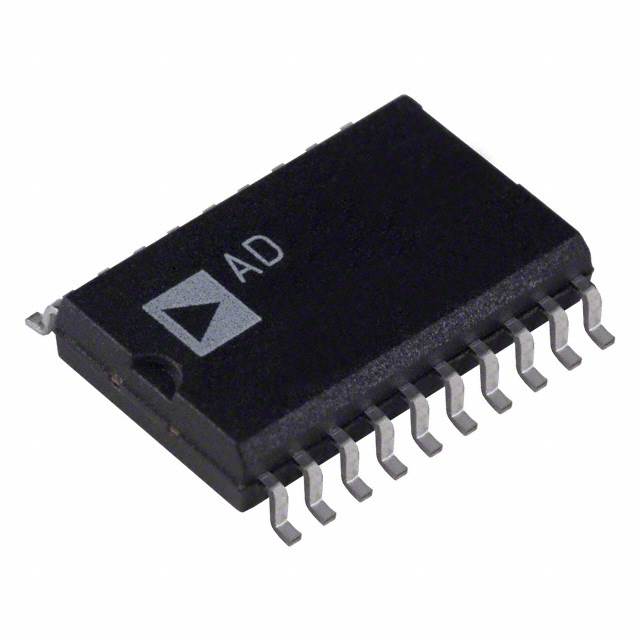

AD7392ARZ-REEL

3 V ，并行输入微功耗10位/ 12位DAC 3 V, Parallel Input Micropower 10-/12-Bit DACs

Product Details

The AD7392/AD7393 comprise a set of pin-compatible 10-/12-bit voltage output, digital-to-analog converters. The parts are designed to operate from a single 3 V supply. Built using a CBCMOS process, these monolithic DACs offer low cost and ease of use in single-supply 3 V systems. Operation is guaranteed over the supply voltage range of 2.7 V to 5.5 V, making this device ideal for battery-operated applications.

The full-scale voltage output is determined by the external reference input voltage applied. The rail-to-rail REFIN to DACOUT allows a full-scale voltage equal to the positive supply VDD or any value in between. The voltage outputs are capable of sourcing 5 mA.

A data latch load of 12 bits with a 45 ns write time eliminates wait states when interfacing to the fastest processors. Addition-ally, an asynchronous RS input sets the output to a zero scale at power-on or upon user demand.

Both parts are offered with similar pinouts, which allows users to select the amount of resolution appropriate for their applications without changing the circuit card.

The AD7392/AD7393 are specified for operation over the extended industrial temperature range of −40°C to +85°C. The AD7393AR is specified for the automotive temperature range of −40°C to +125°C. The AD7392/AD7393 are available in 20-lead PDIP and 20-lead SOIC packages.

For serial data input, 8-lead packaged versions, see the AD7390 and AD7391.

**Applications**

* Automotive 0.5 V to 4.5 V output span voltage

* Portable communications

* Digitally controlled calibration

* PC peripherals

Data Sheet, Rev. C, 8/07

### Features and Benefits

.

Micropower: 100 μA

.

0.1 μA typical power shutdown

.

Single-supply 2.7 V to 5.5 V operation

.

AD7392: 12-bit resolution

.

AD7393: 10-bit resolution

.

0.9 LSB differential nonlinearity error
