ADV7127KRUZ50-REEL

数模转换器- DAC CMOS 240 MHz 10B High Speed DAC

Product Details

The ADV7127 is a high speed, DAC on a single monolithic chip. It consists of a 10-bit, video DAC with an on-board voltage reference, complementary outputs, a standard TTL input interface, and high impedance analog output current sources.

The ADV7127 has a 10-bit wide input port. A single 5 V or 3.3 V power supply and clock are all that are required to make the device functional.

The ADV7127 is fabricated in a complementary metal-oxide semiconductor CMOS process. Its monolithic CMOS construction ensures greater functionality with low power dissipation. The ADV7127 is available in a 24-lead TSSOP package which includes a power-down mode and an on-board voltage reference circuit.

**Product Highlights**

1. 240 MSPS throughput.

2. Guaranteed monotonic to 10 bits.

3. Compatible with a wide variety of high resolution color graphics systems including RS-343A and RS-170.

**Applications**

.

Digital video systems 1600 × 1200 at 100 Hz

.

High resolution color graphics

.

Digital radio modulation

.

Image processing

.

Instrumentation

.

Video signal reconstruction

.

Direct digital synthesis DDS

.

Wireless local area networks LANs

### Features and Benefits

.

240 MSPS throughput rate

.

10-bit digital-to-analog converter DAC

.

RS-343A-/RS-170-compatible output

.

Complementary outputs

.

DAC output current range: 2 mA to 18.5 mA

.

TTL-compatible inputs

.

Internal voltage reference

.

Single supply 5 V or 3.3 V operation

.

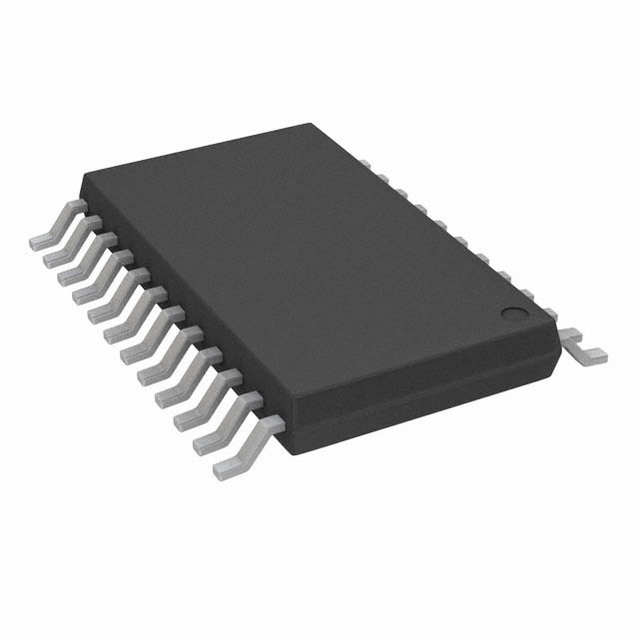

24-lead thin shrink small outline package TSSOP package

.

Low power dissipation

.

Low power standby mode

.

Power-down mode

.

Industrial temperature range −40°C to +85°C
