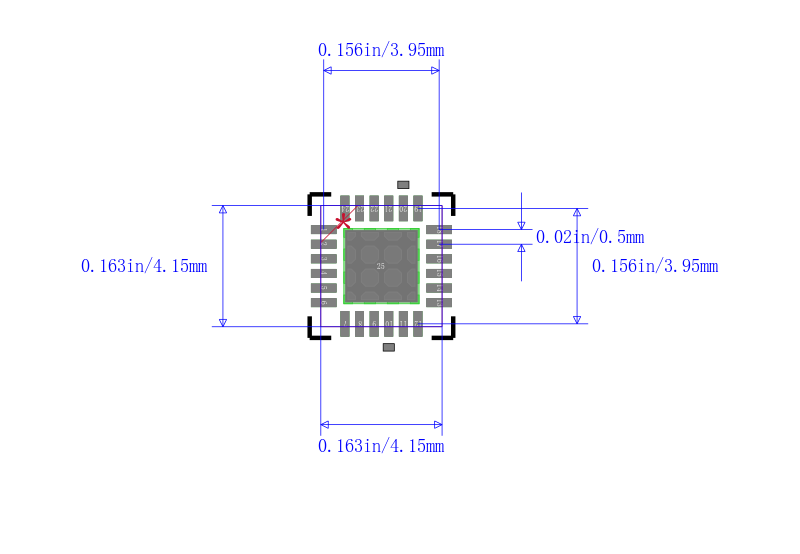

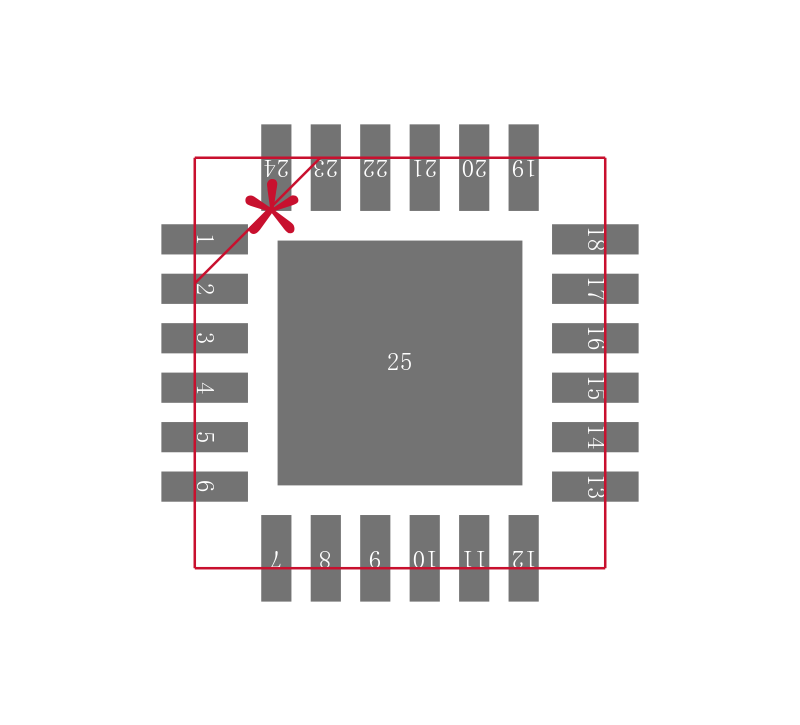

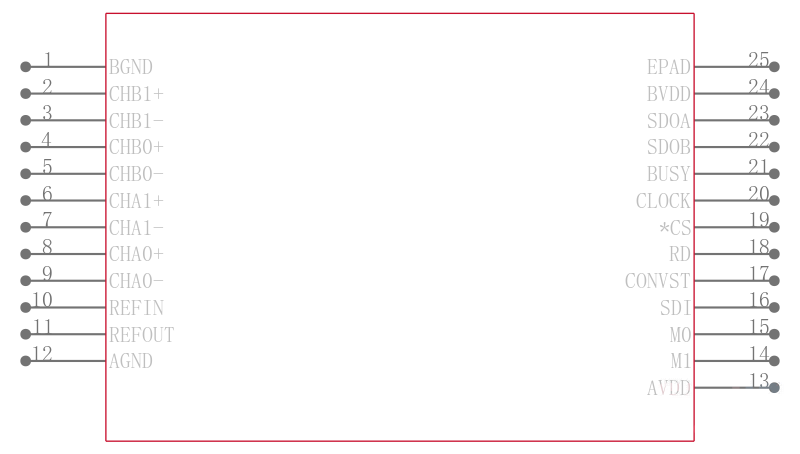

ADS7863IRGET

双路， 2MSPS ， 12位， 2 + 2或3 + 3通道，同步采样模拟数字转换器 Dual, 2MSPS, 12-Bit, 2 + 2 or 3 + 3 Channel, Simultaneous Sampling ANALOG-TO-DIGITAL CONVERTER

DESCRIPON

The ADS7863 is a dual, 12-bit, 2MSPS, analog-to-digital converter ADC with four fully differential or six pseudo-differential input channels grouped into two pairs for high-speed, simultaneous signal acquisition. Inputs to the sample-and-hold S/H amplifiers are fully differential and are maintained differential to the input of the ADC. This architecture provides excellent common-mode rejection of 72dB at 100kHz, which is a critical performance characteristic in noisy environments.

FEATURES

• Four Fully- or Six Pseudo-Differential Inputs

• SNR: 71dB, THD: –81dB

• Programmable and Buffered Internal 2.5V Reference

• Flexible Power-Down Features

• Variable Power-Supply Ranges: 2.7V to 5.5V

• Low-Power Operation: 45mW at 5V

• Operating Temperature Range:

–40°C to +125°C

• Pin-Compatible with ADS7861 and ADS8361 SSOP package

APPLICATIONS

• Motor Control

• Multi-Axis Positioning Systems

• Three-Phase Power Control
