AD7683ARMZRL7

AD7683ARMZRL7图片1
AD7683ARMZRL7图片2
AD7683ARMZRL7图片3
AD7683ARMZRL7图片4
AD7683ARMZRL7图片5
AD7683ARMZRL7概述

AD7683ARMZRL7 编带

Use this specially engineered ADC from Analog Devices to easily convert a time-varying analog signal to a digital number representation of the amplitude of that signal. This device is based on SAR architecture. Its maximum power dissipation is 6 mW. This device"s digital interface is serial 3-wire, spi, qspi, microwire. It has a pseudo-differential input signal. This ADC has a resolution of 16bit. This ADC has an input voltage of 2.5 V/5V. This ADC has a temperature range of -40 °C to 85 °C.

AD7683ARMZRL7中文资料参数规格
技术参数

数字逻辑电平 SAR

电路数 1

通道数 1

位数 16

耗散功率 4 mW

采样率 100 ksps

功耗 4 mW

分辨率Bits 16.0

输入电容 30.0 pF

模数转换数ADC 1

输入数 1

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 6 mW

输入通道数 1

输入电压 2.5V, 5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 MSOP-8

外形尺寸

宽度 3 mm

高度 0.85 mm

封装 MSOP-8

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

军工级 No

海关信息

ECCN代码 EAR99

数据手册

AD7683ARMZRL7引脚图与封装图

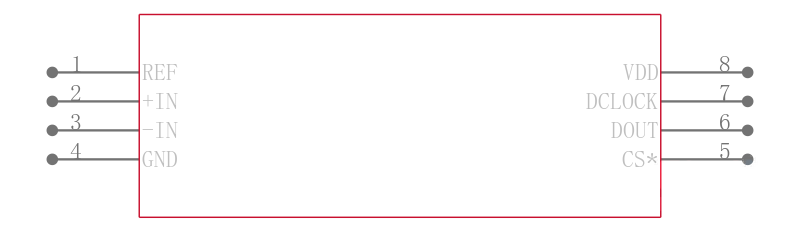

AD7683ARMZRL7引脚图

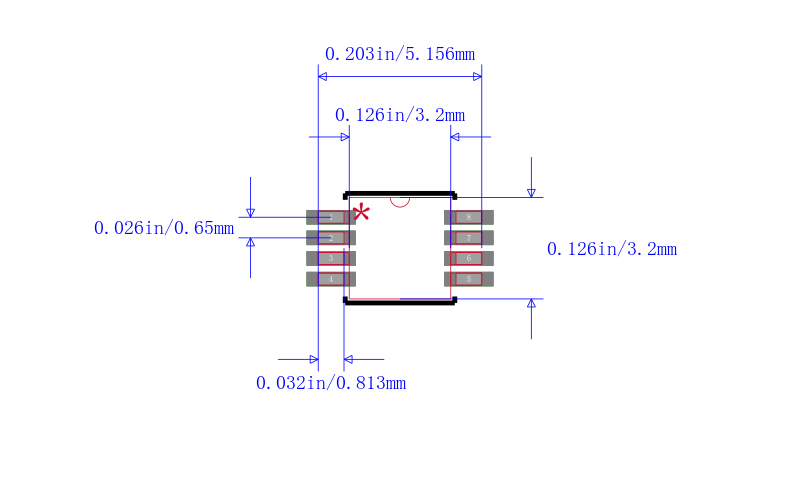

AD7683ARMZRL7封装图
AD7683ARMZRL7封装焊盘图
在线购买AD7683ARMZRL7
型号: AD7683ARMZRL7
制造商: ADI 亚德诺
描述:AD7683ARMZRL7 编带
替代型号AD7683ARMZRL7
型号/品牌 代替类型 替代型号对比

AD7683ARMZRL7

ADI 亚德诺

当前型号

当前型号

AD7683ARMZ

亚德诺

完全替代

AD7683ARMZRL7和AD7683ARMZ的区别

AD7683ARMRL7

亚德诺

完全替代

AD7683ARMZRL7和AD7683ARMRL7的区别

AD7683ARM

亚德诺

完全替代

AD7683ARMZRL7和AD7683ARM的区别
