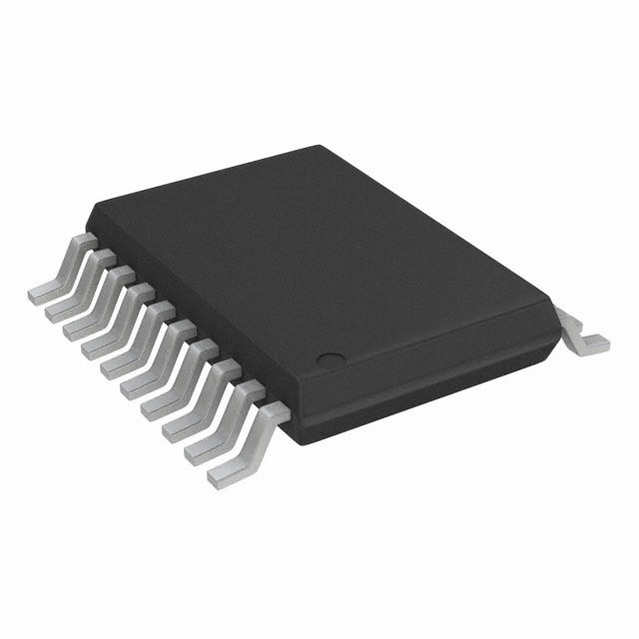

AD7707BRUZ-REEL7图片1

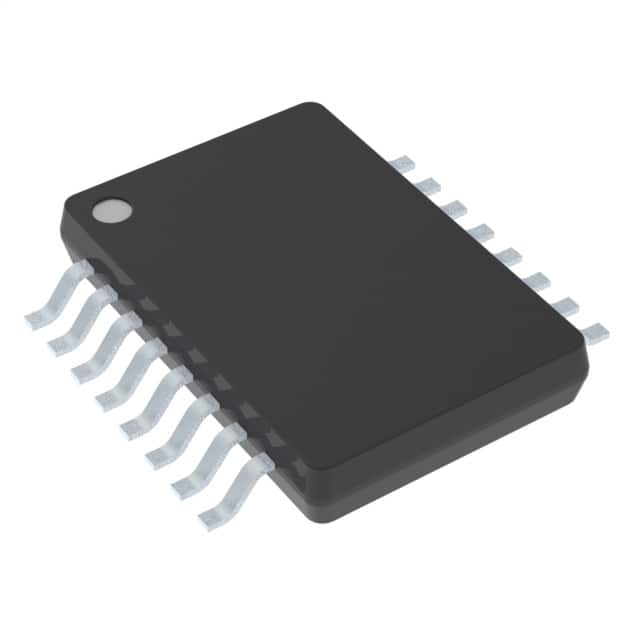

AD7707BRUZ-REEL7图片2
AD7707BRUZ-REEL7图片3
AD7707BRUZ-REEL7图片4
AD7707BRUZ-REEL7图片5
AD7707BRUZ-REEL7概述

Analog to Digital Converters - ADC 3V/5V +/-10V Input Range 1mW 3CH 16B

Product Details

The AD7707 is a complete analog front end for low frequency measurement applications. This 3-channel device can accept either low level input signals directly from a transducer or high level ±10 V signals and produce a serial digital output. It employs a Σ-Δ conversion technique to realize up to 16 bits of no missing codes performance. The selected input signal is applied to a proprietary programmable gain front end based around an analog modulator. The modulator output is processed by an on-chip digital filter. The first notch of this digital filter can be programmed via an on-chip control register allowing adjustment of the filter cutoff and output update rate.

The AD7707 operates from a single 2.7 V to 3.3 V or 4.75 V to 5.25 V supply. The AD7707 features two low level pseudo differential analog input channels, one high level input channel and a differential reference input. Input signal ranges of 0 mV to 20 mV through 0 V to 2.5 V can be accommodated on both low level input channels when operating with a VDD of 5 V and a reference of 2.5 V. They can also handle bipolar input signal ranges of ±20 mV through ±2.5 V, which are referenced to the LCOM input. The AD7707, with a 3 V supply and a 1.225 V reference, can handle unipolar input signal ranges of 0 mV to 10 mV through 0 V to 1.225 V. Its bipolar input signal ranges are ±10 mV through ±1.225 V. The high level input channel can accept input signal ranges of ±10 V, ±5 V, 0 V to 10 V and 0 V to 5 V. The AD7707 thus performs all signal conditioning and conversion for a 3-channel system.

The AD7707 is ideal for use in smart, microcontroller or DSP- based systems. It features a serial interface that can be configured for 3-wire operation. Gain settings, signal polarity and update rate selection can be configured in software using the input serial port. The part contains self-calibration and system calibration options to eliminate gain and offset errors on the part itself or in the system.

CMOS construction ensures very low power dissipation, and the power-down mode reduces the standby power consumption to 20 μW typical. This part is available in a 20-lead wide body 0.3 inch small outline SOIC package and a low profile 20-lead TSSOP.

**Product Highlights**

1. The AD7707 consumes less than 1 mW at 3 V supplies and 1 MHz master clock, making it ideal for use in low power systems. Standby current is less than 8 μA.

2. On-chip thin-film resistors allow ±10 V, ±5 V, 0 V to 10 V, and 0 V to 5 V high level input signals to be directly accom- modated on the analog inputs without requiring split supplies or charge-pumps.

3. The low level input channels allow the AD7707 to accept input signals directly from a strain gage or transducer removing a considerable amount of signal conditioning.

4. The part features excellent static performance specifications with 16 bits, no missing codes, ±0.003% accuracy, and low rms noise. Endpoint errors and the effects of temperature drift are eliminated by on-chip calibration options, which remove zero-scale and full-scale errors.

### Features and Benefits

.
Charge balancing ADC

16 bits no missing codes

0.003% nonlinearity

.
High level ±10 V and low level ±10 mV input channels
.
True bipolar ±100 mV capability on low level input

Channels without requiring charge pumps

.
Programmable gain front end
.
Gains from 1 to 128
.
3-wire serial interface

SPI®, QSPI™, MICROWIRE™ and DSP Compatible

Schmitt trigger input on SCLK

.
Ability to buffer the analog input
.
2.7 V to 3.3 V or 4.75 V to 5.25 V operation
.
Power dissipation 1 mW @ 3 V
.
Standby current 8 µA max
.
20-Lead SOIC and TSSOP Packages
AD7707BRUZ-REEL7中文资料参数规格
技术参数

通道数 3

位数 16

耗散功率 3.75 mW

功耗 3.75 mW

分辨率Bits 16.0

输入电容 10.0 pF

输入阻抗 9.00 GΩ

模数转换数ADC 1

输入数 1, 2

工作温度Max 85 ℃

工作温度Min 40 ℃

耗散功率Max 4.75 mW

输入通道数 1, 2

封装参数

安装方式 Surface Mount

引脚数 20

封装 TSSOP-20

外形尺寸

长度 6.5 mm

宽度 4.4 mm

高度 1.05 mm

封装 TSSOP-20

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

军工级 No

数据手册

AD7707BRUZ-REEL7引脚图与封装图
AD7707BRUZ-REEL7引脚图
AD7707BRUZ-REEL7封装图
AD7707BRUZ-REEL7电路图
AD7707BRUZ-REEL7封装焊盘图
在线购买AD7707BRUZ-REEL7
型号: AD7707BRUZ-REEL7
制造商: ADI 亚德诺
描述:Analog to Digital Converters - ADC 3V/5V +/-10V Input Range 1mW 3CH 16B
替代型号AD7707BRUZ-REEL7
型号/品牌 代替类型 替代型号对比

AD7707BRUZ-REEL7

ADI 亚德诺

当前型号

当前型号

AD7707BRU-REEL7

亚德诺

完全替代

AD7707BRUZ-REEL7和AD7707BRU-REEL7的区别

AD7707BR-REEL

亚德诺

完全替代

AD7707BRUZ-REEL7和AD7707BR-REEL的区别
