IC,D/A CONVERTER,SINGLE,12Bit,BICMOS,SOP,8Pin
Product Details
The AD8300 is a complete 12-bit, voltage-output digital-to-analog converter designed to operate from a single +3 volt supply. Built using a CBCMOS process, this monolithic DAC offers the user low cost, and ease-of-use in single-supply +3 volt systems. Operation is guaranteed over the supply voltage range of +2.7 V to +5.5 V making this device ideal for battery operated applications.
The 2.0475 V full-scale voltage output is laser trimmed to maintain accuracy over the operating temperature range of the device. The binary input data format provides an easy-to-use one-half-millivolt-per-bit software programmability. The voltage outputs are capable of sourcing 5 mA.

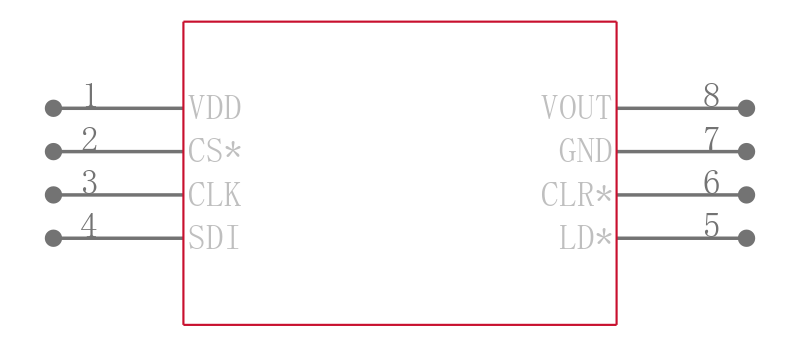

A double buffered serial data interface offers high speed, three-wire, DSP and microcontroller compatible inputs using data in SDI, clock CLK and load strobe LD pins. A chip select CS pin simplifies connection of multiple DAC packages by enabling the clock input when active low. Additionally, a CLR input sets the output to zero scale at power on or upon user demand.
The AD8300 is specified over the extended industrial -40°C to +85°C temperature range. AD8300"s are available in plastic DIP, and low profile 1.5 mm height SO-8 surface mount packages.
### Features and Benefits
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8300ARZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
AD8300AR 亚德诺 | 完全替代 | AD8300ARZ-REEL和AD8300AR的区别 |
AD8300AR-REEL 亚德诺 | 完全替代 | AD8300ARZ-REEL和AD8300AR-REEL的区别 |
AD8300ARZ 亚德诺 | 类似代替 | AD8300ARZ-REEL和AD8300ARZ的区别 |
