AD7476AYRMZ概述

ANALOG DEVICES  AD7476AYRMZ  模数转换器, 12 bit, 1 MSPS, 单, 2.35 V, 5.25 V, MSOP

Product Details

The AD7476A/AD7477A/AD7478A are 12-bit, 10-bit, and 8-bit high speed, low power, successive-approximation analog-todigital converters ADCs, respectively. The parts operate from a single 2.35 V to 5.25 V power supply and feature throughput rates up to 1 MSPS. The parts contain a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 13 MHz. The conversion process and data acquisition are controlled using CS and the serial clock, allowing the devices to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS, and the conversion is also initiated at this point. There are no pipeline delays associated with the parts. The AD7476A/AD7477A/ AD7478A use advanced design techniques to achieve low power dissipation at high throughput rates. The reference for the part is taken internally from VDD to allow the widest dynamic input range to the ADC. Thus, the analog input range for the part is 0 V to VDD. The conversion rate is determined by the SCLK.

Product Highlights

1. First 12-/10-/8-bit ADCs in a SC70 package.

2. High throughput with low power consumption.

3. Flexible power/serial clock speed management. The conversion rate is determined by the serial clock, allowing the conversion time to be reduced through the serial clock speed increase. This allows the average power consumption to be reduced when a power-down mode is used while not converting. The parts also feature a power-down mode to maximize power efficiency at lower throughput rates. Current consumption is 1 µA maximum and 50 nA typically when in power-down mode.

4. Reference derived from the power supply.

5. No pipeline delay. The parts feature a standard successive approximation ADC with accurate control of the sampling instant via a CS input and once-off conversion control.

Applications

.
Battery-powered systems

\- Personal digital assistants

\- Medical instruments

\- Mobile communications

.
Instrumentation and control systems
.
Data acquisition systems
.
High speed modems
.
Optical sensors

### Features and Benefits

.
Fast throughput rate: 1 MSPS
.
Specified for VDD of 2.35 V to 5.25 V
.
Low power
.
3.6 mW at 1 MSPS with 3 V supplies
.
12.5 mW at 1 MSPS with 5 V supplies
.
Wide input bandwidth
.
71 dB SNR at 100 kHz input frequency
.
Flexible power/serial clock speed management
.
No pipeline delays
.
High speed serial interface
.
SPI/QSPI/MICROWIRE/DSP compatible
.
Standby mode: 1 µA maximum
.
6-lead SC70 package
.
8-lead MSOP
.
Qualified for automotive applications
AD7476AYRMZ中文资料参数规格
技术参数

数字逻辑电平 SAR

电源电压DC 2.35V min

供电电流 2.50 mA

针脚数 8

位数 12

耗散功率 17.5 mW

采样率 1 Msps

分辨率Bits 12.0

输入电容 30.0 pF

模数转换数ADC 1

输入数 1

工作温度Max 125 ℃

工作温度Min -40 ℃

耗散功率Max 17.5 mW

输入通道数 1

电源电压Max 5.25 V

电源电压Min 2.35 V

输入电压 5.25 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 MSOP-8

外形尺寸

长度 3 mm

宽度 3 mm

高度 0.85 mm

封装 MSOP-8

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

军工级 No

REACH SVHC版本 2016/06/20

海关信息

ECCN代码 EAR99

数据手册

AD7476AYRMZ引脚图与封装图

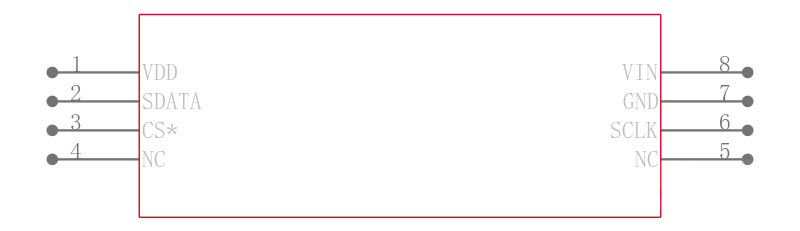

AD7476AYRMZ引脚图

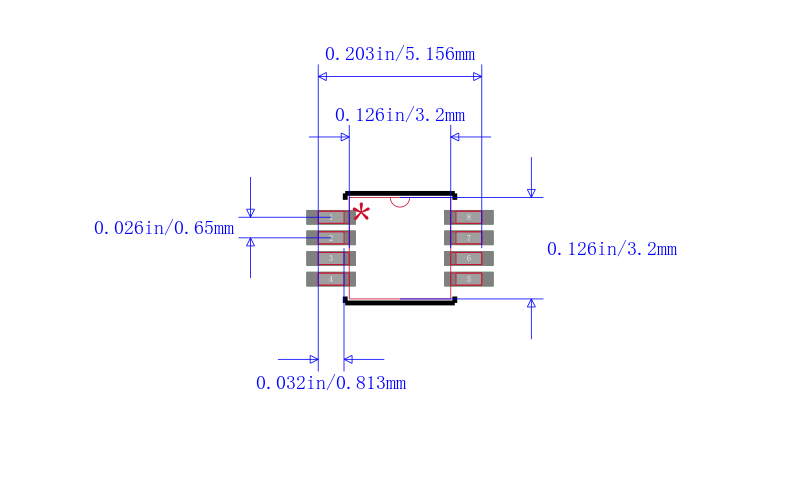

AD7476AYRMZ封装图
AD7476AYRMZ电路图

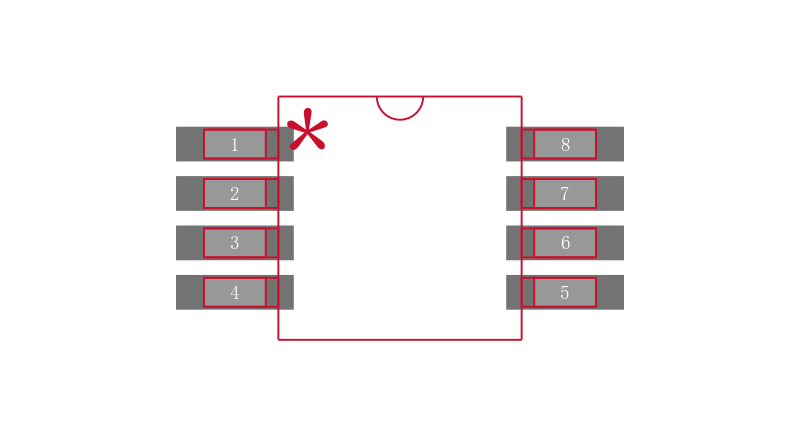

AD7476AYRMZ封装焊盘图
