ADS8325IBDRBR

16Bit, 100KSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC 8-SON -40℃ to 85℃

DESCRIPON

The ADS8325 is a 16-bit, sampling, Analog-to-Digital A/D converter specified for a supply voltage range from 2.7V to 5.5V. It requires very little power, even when operating at the full 100kHz data rate. At lower data rates, the high speed of the device enables it to spend most of its time in the power-down mode. For example, the average power dissipation is less than 1mW at a 10kHz data rate.

FEATURES

• 16-Bits No Missing Codes

• Very Low Noise: 3LSBPP

• Excellent Linearity: ±1.5LSB typ

• microPower:

  – 4.5mW at 100kHz

  – 1mW at 10kHz

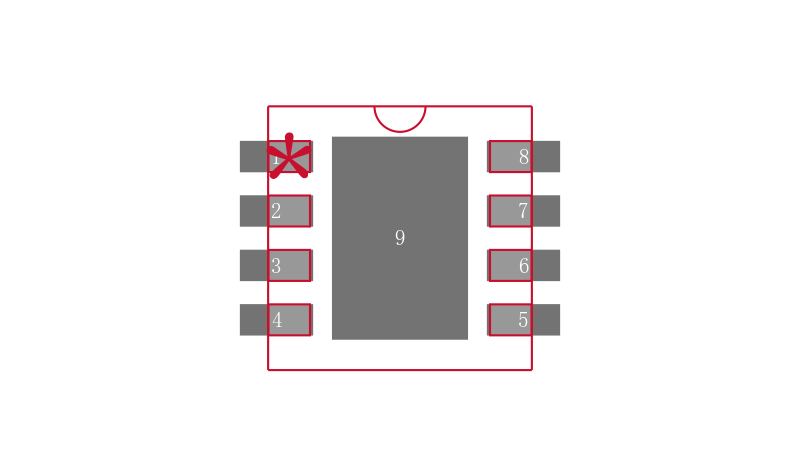

• MSOP-8 and SON-8 Packages SON Package Size Same as 3x3 QFN

• 16-Bit Upgrade to the 12-Bit ADS7816 and ADS7822

• Pin-Compatible With the ADS7816, ADS7822, ADS7826, ADS7827, ADS7829, and ADS8320

• Serial SPI™/SSI Interfaces

APPLICATIONS

• Battery-Operated Systems

• Remote Data Acquisition

• Isolated Data Acquisition

• Simultaneous Sampling, Multi-Channel

Systems

• Industrial Controls

• Robotics

• Vibration Analysis
