8通道,软件可选的真双极性输入, 12位加符号位ADC 8-Channel, Software-Selectable True Bipolar Input, 12-Bit Plus Sign ADC
Product Details
The AD7328 is an 8-channel, 12-bit plus sign, successive approximation ADC designed on the iCMOS industrial CMOS process._ i_CMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage parts could achieve. Unlike analog ICs using conventional CMOS processes, _i_CMOS components can accept bipolar input signals while providing increased performance, dramatically reduced power consumption, and reduced package size.
The AD7328 can accept true bipolar analog input signals. The AD7328 has four software-selectable input ranges, ±10 V, ±5 V, ±2.5 V, and 0 V to +10 V. Each analog input channel can be independently programmed to one of the four input ranges. The analog input channels on the AD7328 can be programmed to be single-ended, true differential, or pseudo differential.
The ADC contains a 2.5 V internal reference. The AD7328 also allows for external reference operation. If a 3 V reference is applied to the REFIN/OUT pin, the AD7328 can accept a true bipolar ±12 V analog input. Minimum ±12 V VDD and VSS supplies are required for the ±12 V input range. The ADC has a high speed serial interface that can operate at throughput rates up to 1 MSPS.
**Product Highlights**
1. The AD7328 can accept true bipolar analog input signals, ±10 V, ±5 V, ±2.5 V, and 0 V to +10 V unipolar signals
2. The eight analog inputs can be configured as eight single-ended inputs, four true differential input pairs, four pseudo differential inputs, or seven pseudo differential inputs
3. 1 MSPS serial interface. SPI®-/QSPI™-/DSP-/MICROWIRE™-compatible interface
4. Low power, 30 mW, at a maximum throughput rate of 1 MSPS
5. Channel sequencer
### Features and Benefits
数字逻辑电平 SAR
通道数 8
位数 12
耗散功率 21 mW
采样率 1 Msps
功耗 21 mW
分辨率Bits 13.0
输入电容 21.5 pF
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 31 mW
安装方式 Surface Mount
引脚数 20

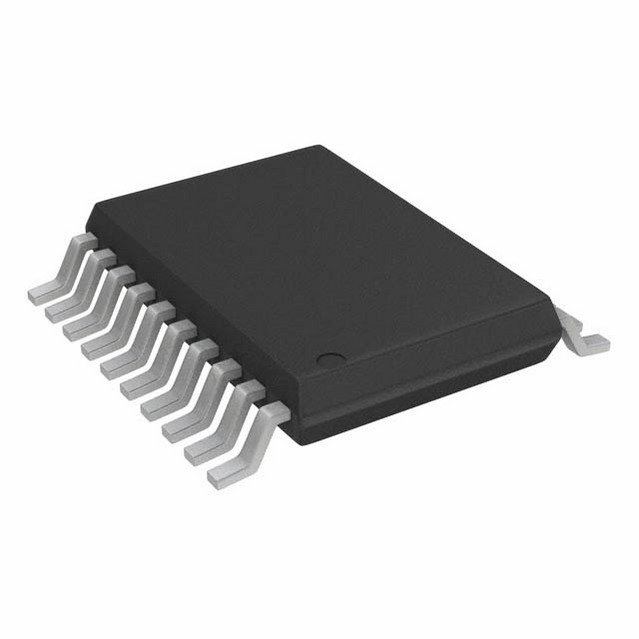

封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD7328BRUZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
AD7328BRUZ 亚德诺 | 完全替代 | AD7328BRUZ-REEL和AD7328BRUZ的区别 |
AD7328BRUZ-REEL7 亚德诺 | 完全替代 | AD7328BRUZ-REEL和AD7328BRUZ-REEL7的区别 |
