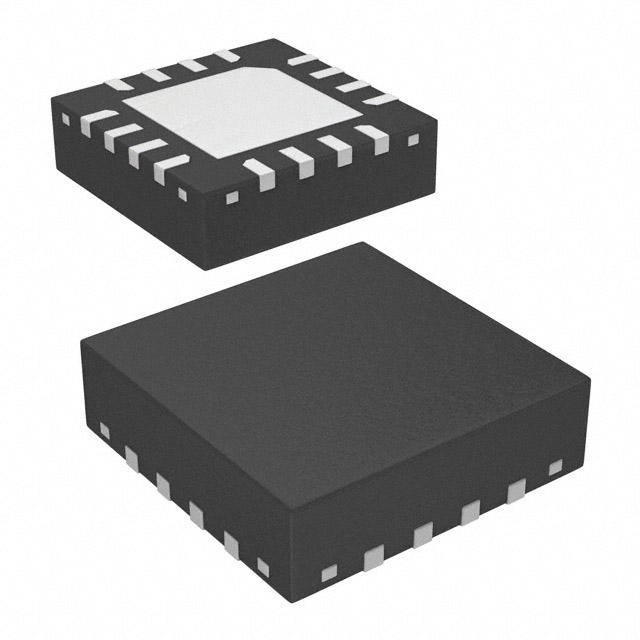

AD5685RBCPZ-RL7图片8
AD5685RBCPZ-RL7图片9

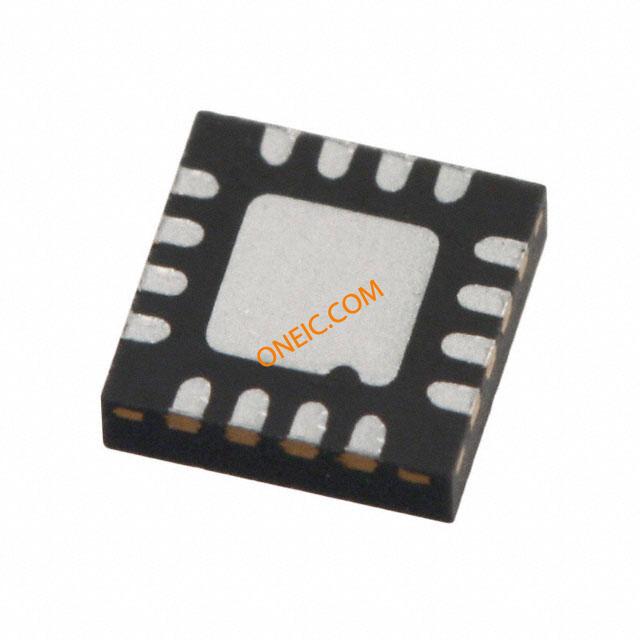

AD5685RBCPZ-RL7图片10

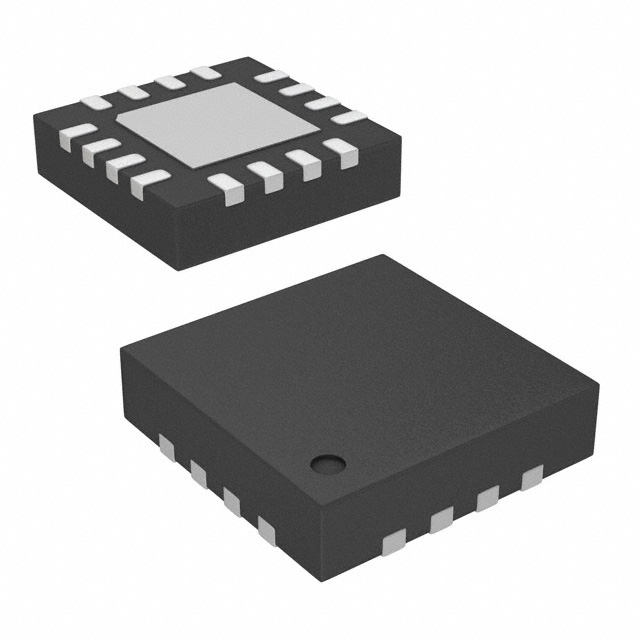

AD5685RBCPZ-RL7图片11
AD5685RBCPZ-RL7图片12
AD5685RBCPZ-RL7概述

ANALOG DEVICES  AD5685RBCPZ-RL7  数模转换器, 四路, 14 bit, 串行, 2.7V 至 5.5V, LFCSP, 16 引脚

Product Details

The AD5685R _nano_DAC+™ is a quad, 14-bit, rail-to-rail, voltage output DAC. The device includes a 2.5V, 2ppm/˚C internal reference enabled by default and a gain select pin giving a full-scale output of 2.5V gain=1 or 5V gain=2.

The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design and exhibits less than 0.1% FSR gain error and 1.5mV offset error performance. The device is available in a 3mm X 3mm LFCSP and a TSSOP package.

The AD5685R also incorporates a power-on-reset circuit and a RSTSEL pin that ensures the DAC outputs power up to zero-scale or midscale, and remain there until a valid write takes place. Each device contains a per-channel power-down feature that reduces the current consumption of the device to 4 uA at 3 V while in power-down mode.

The AD5685R employs a versatile SPI interface that operates at clock rates up to 50 MHz and includes a VLOGIC pin intended for 1.8V/3V/5V logic.

**Product Highlights**

1. High Relative Accuracy: AD5685R 14-bit: ±1LSB INL max

2. Low drift on-chip reference: 2.5V, 2ppm/°C temperature drift

3. Two package options: 3mm × 3mm 16-lead LFCSP or 16-lead TSSOP

**Applications**

.
Optical transceivers
.
Base-station power amplifers
.
Process control PLC I/O cards
.
Industrial automation
.
Data acquisition systems

### Features and Benefits

.
High relative accuracy INL: ±2 LSB maximum at 16 bits
.
Low drift 2.5 V reference: 2 ppm/°C typical
.
Tiny package: 3 mm × 3 mm, 16-lead LFCSP
.
Total unadjusted error TUE: ±0.1% of FSR maximum
.
Offset error: ±1.5 mV maximum
.
Gain error: ±0.1% of FSR maximum
.
High drive capability: 20 mA, 0.5 V from supply rails
.
User selectable gain of 1 or 2 GAIN pin
.
Reset to zero scale or midscale RSTSEL pin
.
1.8 V logic compatibility
.
50 MHz SPI with readback or daisy chain
.
Low glitch: 0.5 nV-sec
.
Low power: 3.3 mW at 3 V
.
2.7 V to 5.5 V power supply
.
−40°C to +105°C temperature range
AD5685RBCPZ-RL7中文资料参数规格
技术参数

输出接口数 4

通道数 4

针脚数 16

位数 14

耗散功率 7.15 mW

分辨率Bits 14.0

工作温度Max 105 ℃

工作温度Min -40 ℃

数模转换数DAC 4

电源电压 2.7V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 16

封装 LFCSP-16

外形尺寸

高度 0.73 mm

封装 LFCSP-16

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

军工级 No

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

AD5685RBCPZ-RL7引脚图与封装图
AD5685RBCPZ-RL7引脚图

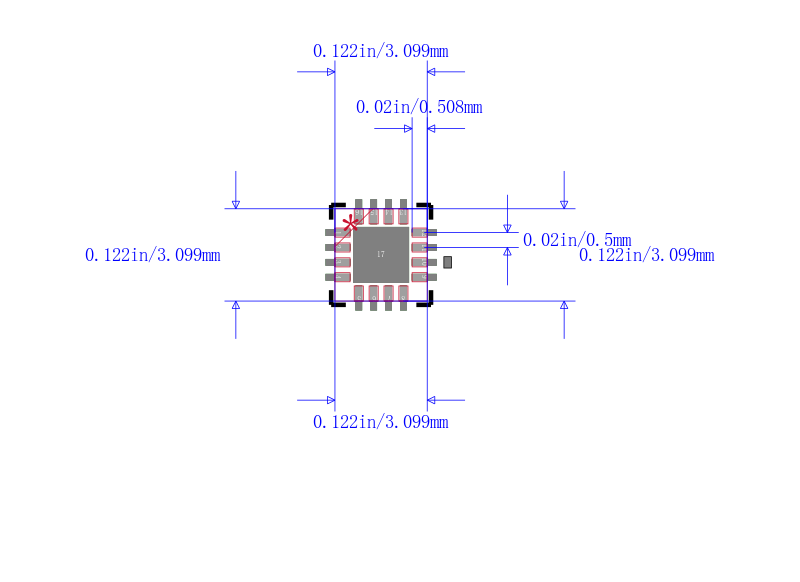

AD5685RBCPZ-RL7封装图
AD5685RBCPZ-RL7电路图

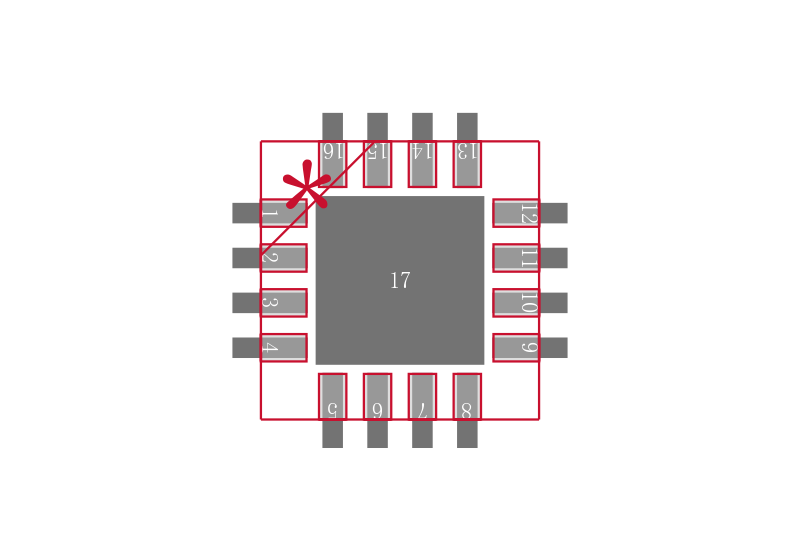

AD5685RBCPZ-RL7封装焊盘图
