12位, 210 MSPS TxDAC系列数位类比转换器 12-Bit, 210 MSPS TxDAC Digital-to-Analog Converter
Product Details
The AD9742 is the 12-bit member of the new third generation family in the _TxDAC_ product line. This new family includes the AD9744 14-bit, AD9742 12-bit, and AD9740 10-bit high-speed _TxDAC_ converters with a maximum sampling rate of 210 MSPS. The family is pin-compatible with the previous two generations AD9764/AD9762/AD9760 and AD9754/AD9752/AD9750 with improved performance and lower power dissipation.
The _TxDAC_ product line is optimized for the transmit signal path of communications systems. All of the devices, including the first two generations, share the same interface options, small outline package and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD974x family has lower power dissipation than previous generations, making all three converters suitable for portable and low power applications.
_TxDAC_ is a registered trademark of Analog Devices.
### Features and Benefits
Binary Data Format
3.3 V Power-Down Mode: 15 mW
输出接口数 1
通道数 1
位数 12
耗散功率 145 mW
采样率 210 Msps
分辨率Bits 12.0
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 145 mW
数模转换数DAC 1
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 28

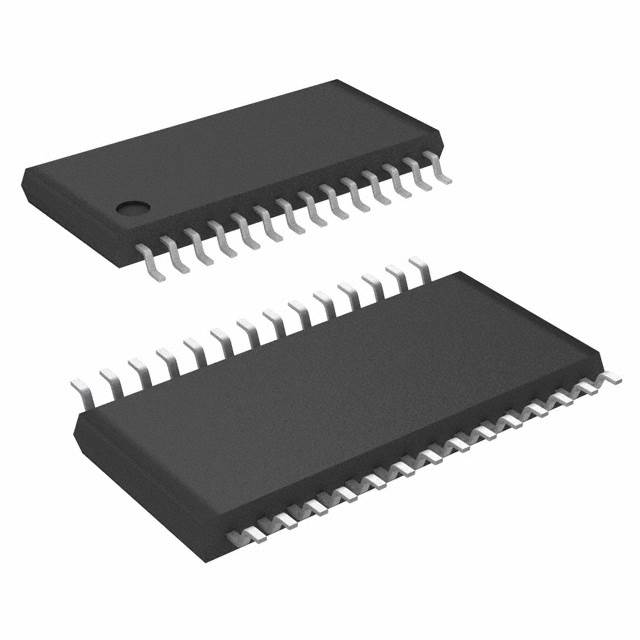

封装 TSSOP-28
高度 1.05 mm
封装 TSSOP-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 No
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD9742ARUZRL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD9742ARUZ 亚德诺 | 完全替代 | AD9742ARUZRL7和AD9742ARUZ的区别 |
AD9742ARZRL 亚德诺 | 完全替代 | AD9742ARUZRL7和AD9742ARZRL的区别 |
AD9742ARURL7 亚德诺 | 完全替代 | AD9742ARUZRL7和AD9742ARURL7的区别 |
