ANALOG DEVICES AD7680BRJZ-REEL7 模数转换器, 16 bit, 100 kSPS, 单, 4.5 V, 5.5 V, SOT-23
If you require your analog signals to be converted into digital data then this ADC from Analog Devices is perfect. It has a single-ended input signal. This device"s digital interface is serial spi, qspi, microwire. This device is based on SAR architecture. Its maximum power dissipation is 26.4 mW. This ADC has a resolution of 16bit. This ADC has an input voltage of 5.5 V. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
数字逻辑电平 SAR
电源电压DC 4.50V min
电路数 1
通道数 1
针脚数 6
位数 16
耗散功率 26.4 W
采样率 100 ksps
分辨率Bits 16.0
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 26.4 mW
输入通道数 1
电源电压Max 5.5 V
电源电压Min 4.5 V
输入电压 5.5 V
安装方式 Surface Mount
引脚数 6

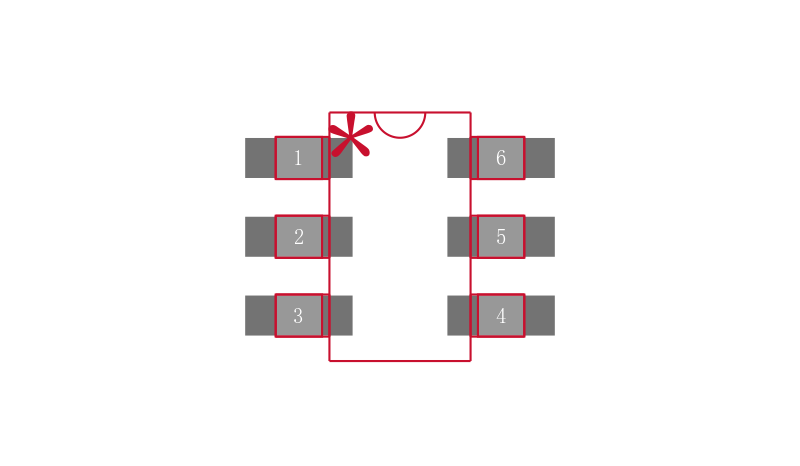

封装 SOT-23-6
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD7680BRJZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD7680BRJ-REEL7 亚德诺 | 完全替代 | AD7680BRJZ-REEL7和AD7680BRJ-REEL7的区别 |
AD7680BRJZ-REEL 亚德诺 | 完全替代 | AD7680BRJZ-REEL7和AD7680BRJZ-REEL的区别 |
AD7680BRJ-REEL 亚德诺 | 完全替代 | AD7680BRJZ-REEL7和AD7680BRJ-REEL的区别 |
