AD5664BCPZ-R2

ANALOG DEVICES AD5664BCPZ-R2 Digital to Analog Converter, 16Bit, 223KSPS, Serial, 2.7V to 5.5V, CSP, 10Pins

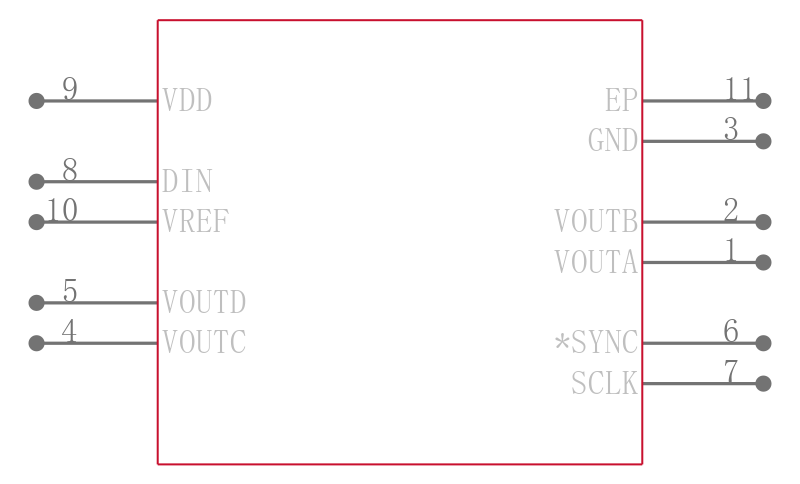

Product Details

The AD5624/AD5664, members of the _nano_DAC® family, are low power, quad, 12-, 16-bit buffered voltage-out DACs that operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design.

The AD5624/AD5664 require an external reference voltage to set the output range of the DAC. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V and remains there until a valid write takes place. The parts contain a power-down feature that reduces the current consumption of the device to 480 nA at 5 V and provides software-selectable output loads while in power-down mode.

The low power consumption of these parts in normal operation makes them ideally suited to portable battery-operated equipment. The power consumption is 2.25 mW at 5 V, going down to 2.4 μW in power-down mode.

The AD5624/AD5664 on-chip precision output amplifier allows rail-to-rail output swing to be achieved.The AD5624/AD5664 use a versatile 3-wire serial interface that operates at clock rates up to 50 MHz, and are compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards.

**Product Highlights**

1. Relative accuracy: ±12 LSBs maximum.

2. Available in 10-lead MSOP and 10-lead, 3 mm × 3 mm, LFCSP_WD.

3. Low power, typically consumes 1.32 mW at 3 V and 2.25 mW at 5 V.

4. Maximum settling time of 4.5 μs AD5624 and 7 μs AD5664.

**

**Applications**

**

.

Process control

.

Data acquisition systems

.

Portable battery-powered instruments

.

Digital gain and offset adjustment

.

Programmable voltage and current sources

.

Programmable attenuators

### Features and Benefits

.

Low power quad nanoDACs

.

AD5664: 16 Bits

.

AD5624: 12 Bits

.

Relative Accuracy: ±12 LSBs max

.

10-lead MSOP and 3mmx3mm LFCSP_WD package

.

2.7 V to 5.5 V power supply

.

Guaranteed monotonic by design

.

Power-on reset to zero

.

Per channel power-down

.

Serial interface ; Up to 50MHz
