ANALOG DEVICES AD9744ARUZ 数模转换器, 14 bit, 210 MSPS, 并行, 2.7V 至 3.6V, TSSOP, 28 引脚
The is a 14-bit high performance low power CMOS Digital-to-analog Converter DAC specifically optimized for the transmit signal path of communication systems. The AD9744 offers exceptional AC and DC performance while supporting update rates up to 210MSPS. The AD9744 low power dissipation makes it well suited for many applications. Its power dissipation can be further reduced to a mere 60mW with a slight degradation in performance by lowering the full-scale current output. Also, a power-down mode reduces the standby power dissipation to approximately 15mW. Segmented current source architecture is combined with a proprietary switching technique to reduce spurious components and enhance dynamic performance. Edge-triggered input latches and a 1.2V temperature compensated band gap reference have been integrated to provide a complete monolithic DAC solution.
输出接口数 1
供电电流 33.0 mA
通道数 1
针脚数 28
位数 14
耗散功率 0.145 W
采样率 210 Msps
分辨率Bits 14.0
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 145 mW
数模转换数DAC 1
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 28

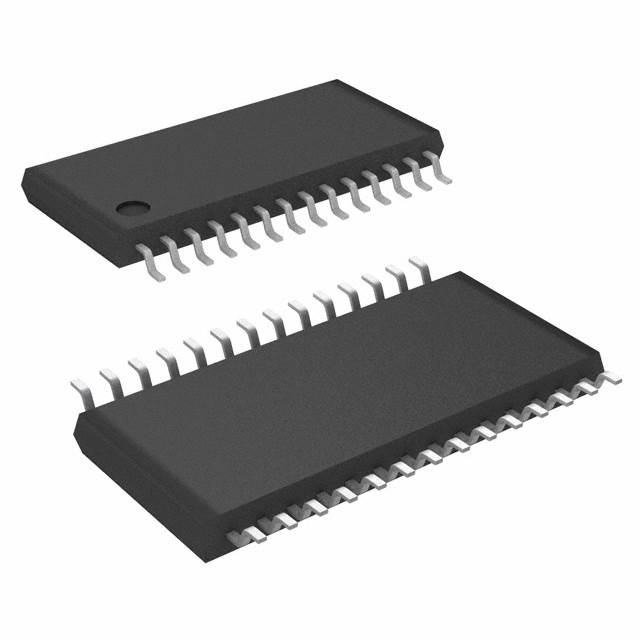

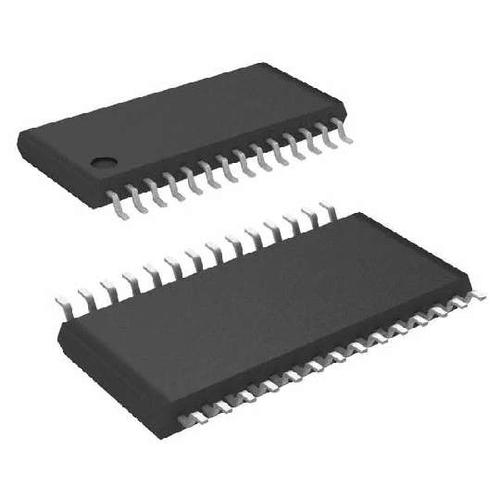

封装 TSSOP-28
高度 1.05 mm
封装 TSSOP-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 射频通信, Scanning Equipment, Sensing & Instrumentation, Communications & Networking, Wireless, 无线, Security and Surveillance, Aerospace and Defense, 通信与网络, 传感与仪器, Milcom, RF Communications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD9744ARUZ ADI 亚德诺 | 当前型号 | 当前型号 |
AD9744ARUZRL7 亚德诺 | 完全替代 | AD9744ARUZ和AD9744ARUZRL7的区别 |
AD9764ARUZ 亚德诺 | 类似代替 | AD9744ARUZ和AD9764ARUZ的区别 |
AD9754ARUZ 亚德诺 | 类似代替 | AD9744ARUZ和AD9754ARUZ的区别 |
