AD9949KCPZRL

12位CCD信号处理器， Precision Timing内核 12-Bit CCD Signal Processor with Precision Timing Core

Product Details

The AD9949 is a highly integrated CCD signal processor for digital still camera applications. Specified at pixel rates of up to 36 MHz, the AD9949 consists of a complete analog front end with A/D conversion, combined with a programmable timing driver. The Precision Timing core allows adjustment of high speed clocks with <600 ps resolution.

The analog front end includes black level clamping, CDS, PxGA, VGA, and a 36 MSPS 12-bit A/D converter. The timing driver provides the high speed CCD clock drivers for RG and H1–H4. Operation is programmed using a 3-wire serial interface.

Packaged in a space-saving 40-lead LFCSP package, the AD9949 is specified over an operating temperature range of –2ºC to +8ºC.

### Features and Benefits

.

Correlated Double Sampler CDS

.

0 dB to 18 dB Pixel Gain Amplifier PxGA®

.

6 dB to 42 dB 10-Bit Variable Gain Amplifier VGA

.

12-Bit 36 MSPS A/D Converter

.

Black Level Clamp with Variable Level Control

.

Complete On-Chip Timing Driver

.

Precision Timing Core with

.

<600 ps Resolution

.

On-Chip 3 V Horizontal and RG Drivers

.

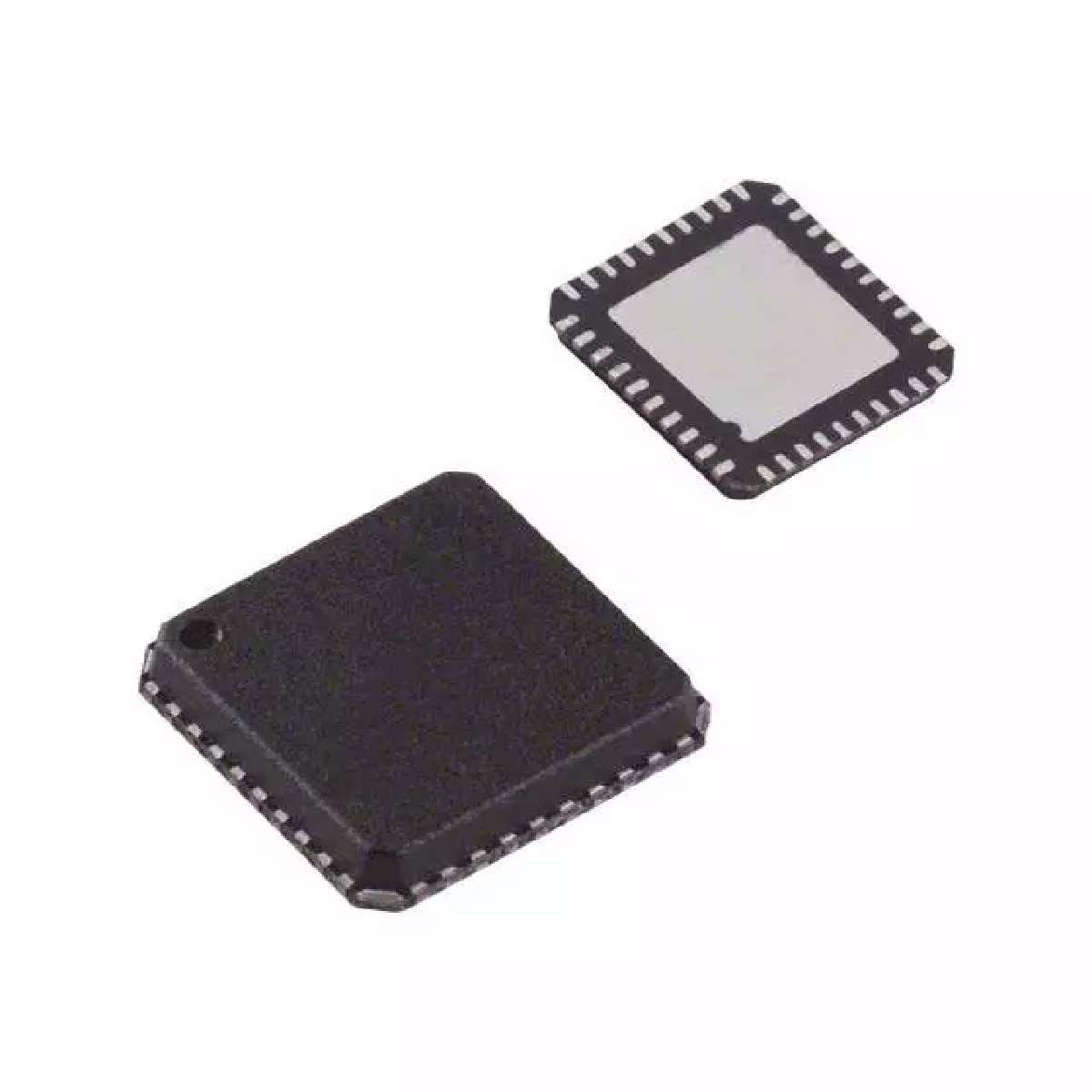

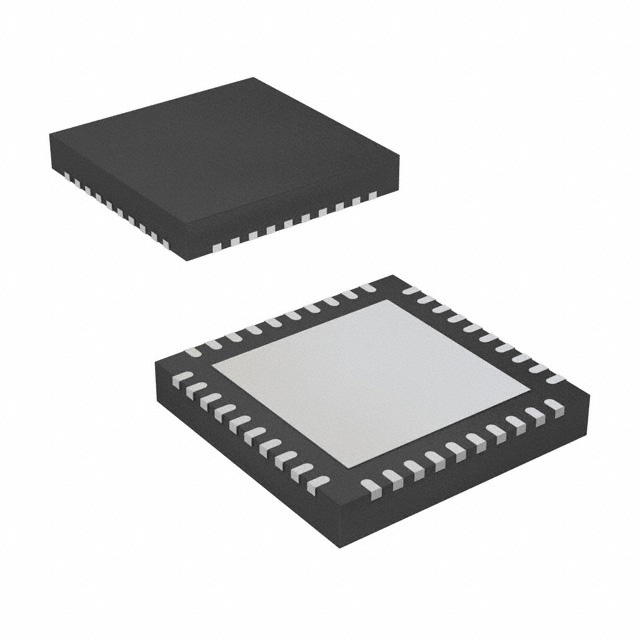

40-Lead LFCSP Package
