AD5725BRSZ-1500RL7

数模转换器- DAC IC Quad 12-Bit VTG Output

Product Details

The AD5725 is a quad, 12-bit, parallel input, voltage output digital-to-analog converter that offers guaranteed monotonicity, integral nonlinearity INL of ±0.5 LSB maximum and 10 μs maximum settling time.

Output voltage swing is set by two reference inputs, VREFP and VREFN. By setting the VREFN input to 0 V and the VREFP to a positive voltage, the DAC provides a unipolar positive output range. A similar configuration with VREFP at 0 V and VREFN at a negative voltage provides a unipolar negative output range. Bipolar outputs are configured by connecting both VREFP and VREFN to nonzero voltages. This method of setting output voltage ranges has advantages over the bipolar offsetting methods because it is not dependent on internal and external resistors with different temperature coefficients.

Digital controls allow the user to load or read back data from any DAC, load any DAC, and transfer data to all DACs at one time.

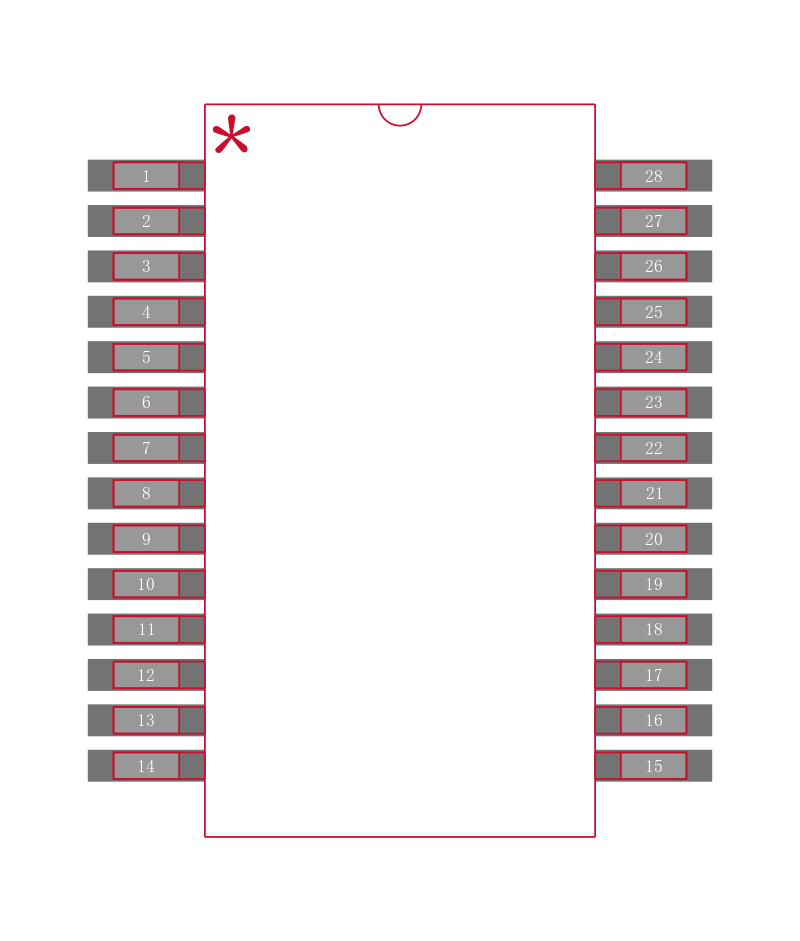

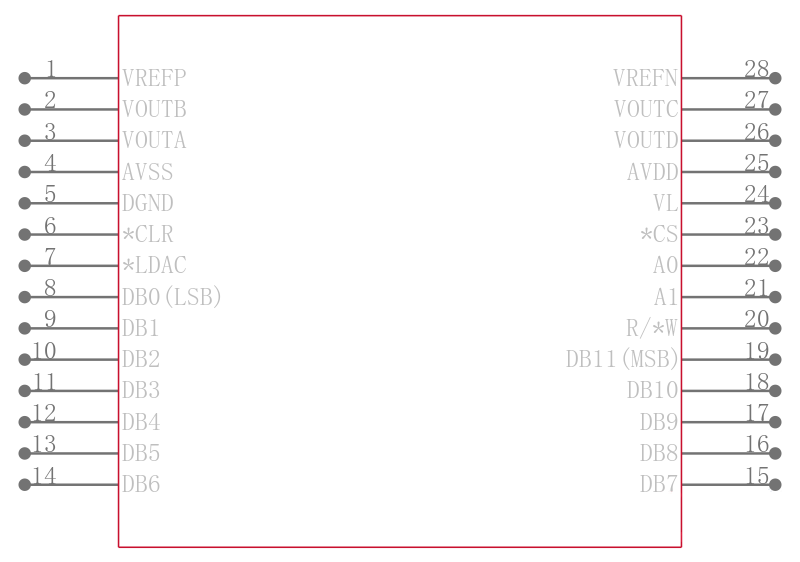

The AD5725 is available in a 28-lead SSOP package. It can be operated from a wide variety of supply and reference voltages, with supplies ranging from single +5 V to ±15 V, and references from +2.5 V to ±10 V. Power dissipation is less than 270 mW with ±15 V supplies and only 40 mW with a +5 V supply. Operation is specified over the temperature range of −40°C to +85°C.

**Applications**

.

Industrial automation

.

Closed-loop servo control, process control

.

Automotive test and measurement

.

Programmable logic controllers

### Features and Benefits

.

+5 V to ±15 V operation

.

Unipolar or bipolar operation

.

±0.5 LSB max INL error, ±1 LSB max DNL error

.

Settling time: 10 μs max 10 V step

.

Double-buffered inputs

.

Simultaneous updating via LDAC

.

Asynchronous CLR to zero/mid scale

.

Readback

.

Operating temperature range:

.

−40°C to +85°C

.

iCMOS® process technology

iCMOS® Process Technology

For analog systems designers within industrial/instrumentation equipment OEMs who need high performance ICs at higher-voltage levels, iCMOS is a technology platform that enables the development of analog ICs capable of 30 V and operating at ±15 V supplies while allowing dramatic reductions in power consumption and package size, and increased ac and dc performance.
