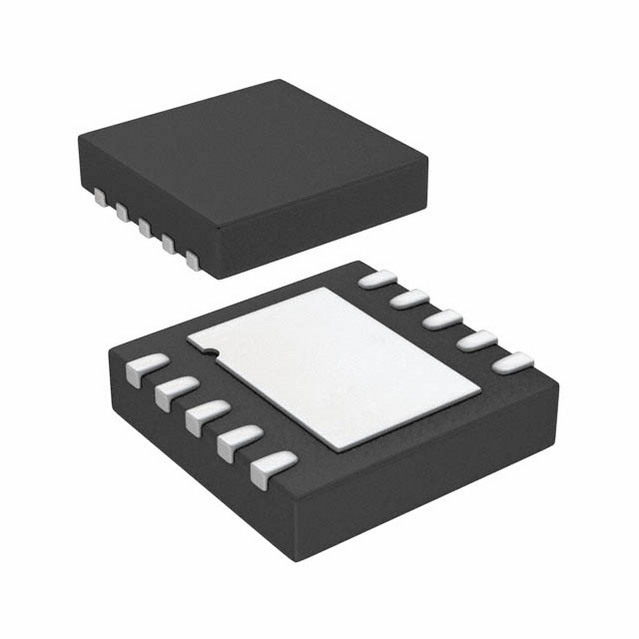

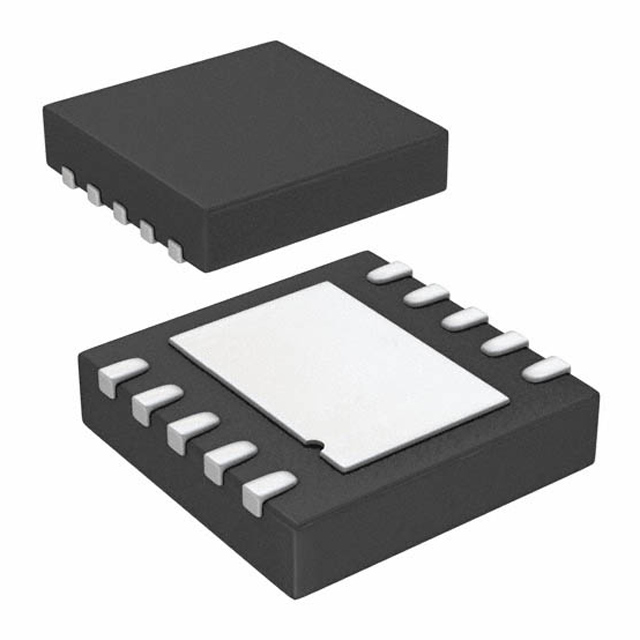

ANALOG DEVICES AD5664RBCPZ-3R2 数模转换器, 四路, 16 bit, 223 kSPS, 串行, 2.7V 至 3.6V, LFCSP, 10 引脚
If your digital signals need to be converted into analog then this DAC converter from Analog Devices will easily accomplish that that. This device"s digital interface is serial 3-wire, spi, qspi, microwire. This device is based on Resistor-String architecture. It has a voltage output. This DAC has a resolution of 16bit. This DAC has a temperature range of -40 °C to 105 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device uses a single power supply.
输出接口数 4
通道数 4
针脚数 10
位数 16
耗散功率 0.0066 W
采样率 223 kHz
分辨率Bits 16.0
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 6.6 mW
数模转换数DAC 4
电源电压 2.7V ~ 3.6V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 10

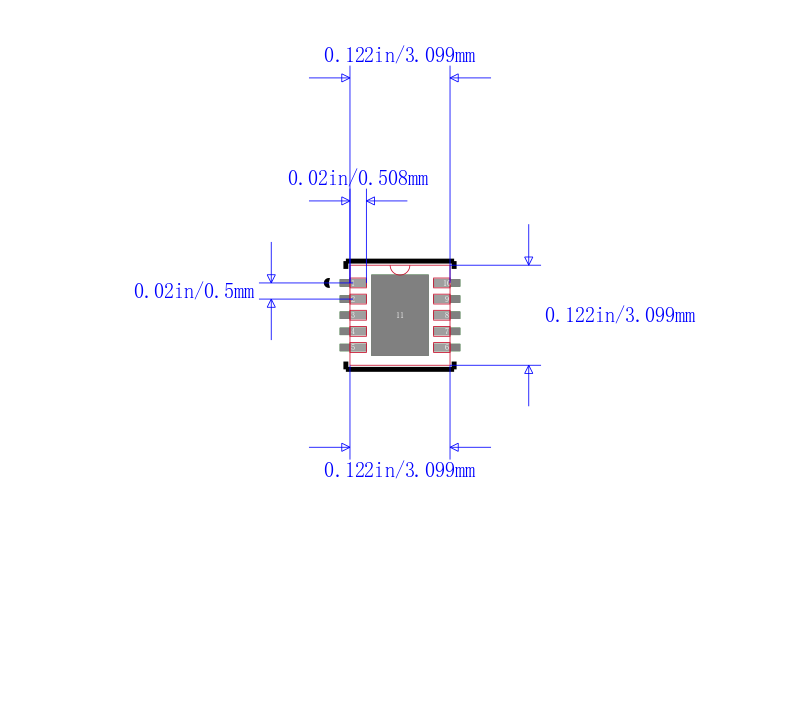

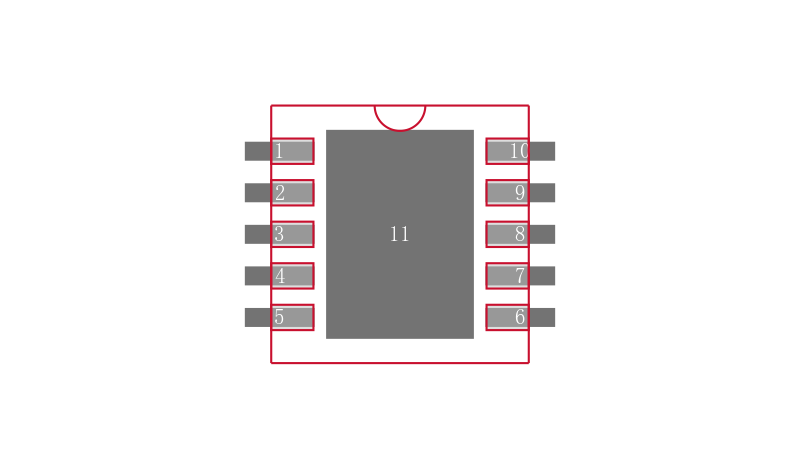

封装 LFCSP-10
封装 LFCSP-10
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD5664RBCPZ-3R2 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5664RBCPZ-3REEL7 亚德诺 | 类似代替 | AD5664RBCPZ-3R2和AD5664RBCPZ-3REEL7的区别 |
