AD5543BRM

电流输出/串行输入， 16位/ 14位DAC Current Output/ Serial Input, 16-/14-Bit DAC

Product Details

The AD5543/AD5553 are precision 16-/14-bit, low power, current output, small form factor digital-to-analog converters DACs. They are designed to operate from a single 5 V supply with a ±10 V multiplying reference.

The applied external reference, VREF, determines the full-scale output current. An internal feedback resistor RFB facilitates the R-2R and temperature tracking for voltage conversion when combined with an external op amp.

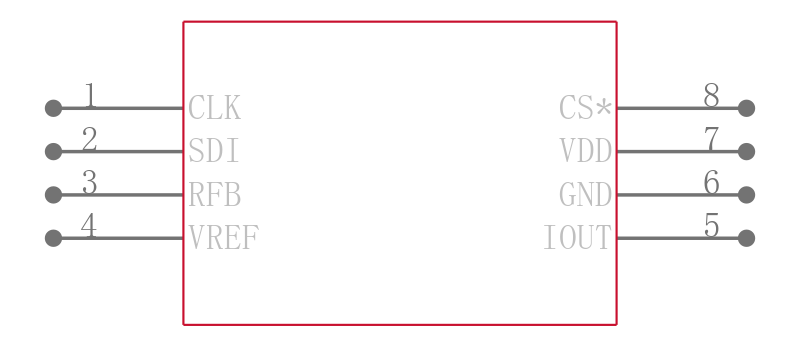

A serial-data interface offers high speed, 3-wire microcontroller-compatible inputs using serial data in SDI, clock CLK, and chip select CS.

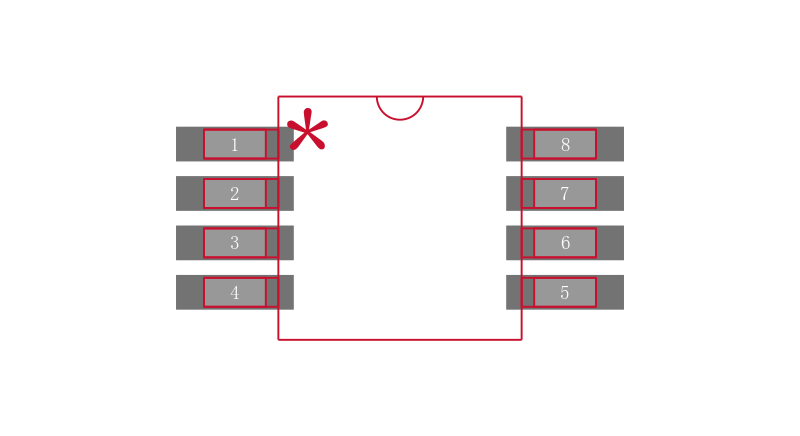

The AD5543/AD5553 are packaged in ultracompact 3 mm × 4.7 mm 8-lead MSOP and 8-lead SOIC packages.

**Applications**

.

Automatic test equipment

.

Instrumentation

.

Digitally controlled calibration

.

Industrial control PLCs

### Features and Benefits

.

16-bit resolution

.

±1 LSB DNL

.

±1 LSB INL

.

Low noise: 12 nV/√Hz

.

Low power: IDD = 10 μA

.

0.5 μs settling time

.

4-quadrant multiplying reference input

.

2 mA full-scale current ± 20%, with VREF= 10 V

.

Built-in RFB facilitates voltage conversion

.

3-wire interface

.

Ultracompact 8-lead MSOP and 8-lead SOIC packages

AD5543-EP supports defense and aerospace applications AQEC standard

.

Download AD5543-EP Data Sheet pdf

.

Military temperature range −55°C to +125°C

.

Controlled manufacturing baseline

.

One assembly/test site

.

One fabrication site

.

Enhanced product change notification

.

Qualification data available on request
